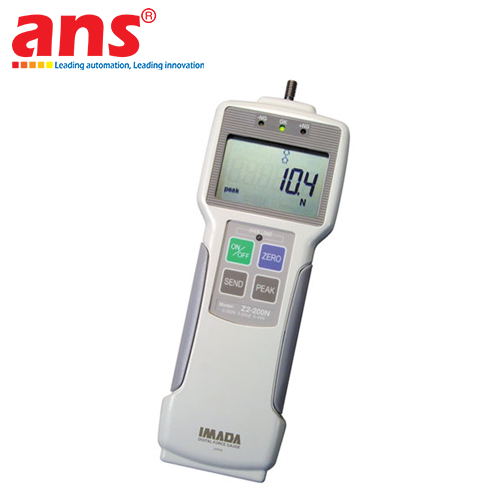

MAYR & IMADA GLOBAL LEGACY COMPLIANCE: IMADA / CHECKLINE Z2 SERIES HANDHELD DIGITAL FORCE GAUGE WITH INTERNAL LOAD CELLS (DISCONTINUED HARDWARE)

DEEP PRODUCT OVERVIEW & SMART FACTORY SYSTEMIC MIGRATION INTEGRITY
The IMADA / Checkline Z2 Series represents the foundational global industry milestone in specialized handheld electro-mechanical power validation engineering, configured as a high-precision bidirectional digital Force Gauge tracking a fully integrated internal sensing core (Digital Force Gauge with Internal Sensor), developed and manufactured 100% in Japan by metrology pioneer IMADA Co., Ltd, and distributed internationally through Checkline's logistical channels. The Z2 product family has been officially designated as a discontinued model line (Discontinued Model), systematically replaced across modern connected automated workspace networks by the advanced ZT Series platform (ZTS/ZTA) equipped with active self-luminous OLED user interfaces. Regardless of its legacy status, the unyielding physical metallurgy and hard-turned internal components characteristic of Japanese mechanical manufacturing empower this "veteran" instrument to continuously run active shift loops across hundreds of factory QA/QC lines and component analysis cells worldwide. For manufacturing assets utilizing old Z2 units facing hardware failure or requiring recalibration parameters, ANS operates as the definitive migration consultant, providing a direct upgrade path onto the modern Checkline ZTS platform with a strict 100% backward-compatible guarantee regarding existing motorized test stands frame holes, mounting thread metrics, and automated fixture sizing to safeguard continuous facility uptime.

MONOCHROME CLASSIC USER INTERFACE MET WITH SOLID-STATE MEMBRANE KEYPAD ARRAYS
While lacking the active self-illuminating pixel matrices found on modern analytical tools, the structural layout of the Z2 preserves critical field functionality:
- Traditional Monochrome Digital LCD Window: The definitive geometric asset identifying the Z2 architecture is its large-character monochrome digital LCD tracking window displaying black text over a flat grey background layer (bypassing modern OLED active emissions). Crucially, the firmware retains a vital ergonomic asset: an automated 180-degree alphanumeric character reversal feature (Reversible Display) that triggers the exact millisecond technical teams drop-in mount the gauge upside down over a manual or automated vertical Test Stand frame, preventing data transposition delays.
- Simplified Rubberized Membrane Key Interface: The handheld housing monocoque is molded from severe-duty high-impact engineering resins finished in IMADA's iconic green colorway, presenting a lightweight body for cross-facility manual transport loops. The control interface utilizes a continuous-molded rubber button grid containing essential execution paths: including Power initialization, absolute Zero software recalibration, bi-directional Peak/Track algorithmic selection, and an instantaneous data dispatch Send key.

1000HZ INDUSTRIAL SAMPLE INDUCTION FREQUENCY & 200% PASSIVE SAFETY OVERLOAD LIMITERS
- High-Speed Real-Time Peak Force Capture: Long before modern high-velocity micro-processors emerged, the Z2 series established factory benchmarks by polling force curves at an unwavering sampling velocity of 1000 data conversions per single second (1000Hz frequency tracking). This agile induction capability maps dynamic material yield horizons flawlessly, capturing true absolute peak force (Peak force) metrics at the precise split-second a plastic phôi sample shatters or a structural cable line splits, eliminating mechanical hysteresis lag.
- Nominal Instrument Accuracy Boundary: Calibrated to yield a strict metrology accuracy rating certified at ± 0.2% across the absolute full scale parameter (± 0.2% Full Scale ±1 LSD accuracy tracking), scaling smoothly across multi-tier metric limits starting from sensitive low-force 2N blocks up to heavy industrial 1000N drive columns. The internal load cell matches a passive structural mechanical over-travel stopper mechanism, allowing the tool to safely endure sudden crushing forces scaling up to 200% of nominal capacity without sustaining terminal chip misalignment, tracking uninterrupted lifecycle statistics under certified ANS logistical lines.

LEGACY SERIAL RS-232C TRANSMISSION MATRIX & LOCALIZED BLOCK MEMORY ARCHIVES
- Obsolete PC COM Port Data Interfacing: Engineered within a classic hardware generation, the Checkline Z2 channels outbound telemetry logging blocks via a legacy serial RS-232C data connection (standard industrial COM port routing) alongside an integrated continuous Analog output terminal exporting a wide amplitude wave stream rated at (±2V DC).
- Static Historical Inspection Storage: The internal non-volatile memory registry automatically catalogs up to 1000 discrete tension or compression inspection logs. This data blocks stream straight to legacy workspace computer towers or handheld mini ticketing printers via standardized RS-232 signal lines, securing continuous long-term historical traceability metrics supplied through official ANS distribution pipelines.

DYNAMIC METROLOGY & COUPLING PERFORMANCE DATA
- Original Equipment Design Manufacturer: IMADA Co., Ltd (Kyoto, Japan)
- Western Commercial Distribution Partner: Checkline (Electromatic Equipment Co., Inc.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: Z2 Series (Legacy Product Platform)
- Device Structural Profile: Legacy shop-floor handheld digital tension and compression force gauge with internal loadcell sensor.
- Lifecycle Commercial Status: Discontinued Model (Production terminated; fully supported via ANS for field component maintenance and 100% backward-compatible migration to the ZTS OLED series).
- Monitoring Axis Force Vectors: Bidirectional closed-loop tracking, automatically resolving concurrent Tension (pulling loops) and Compression (pushing actions).
- Nominal Measuring Capacity Scale: Multi-tier scalable legacy ranges stretching from 2N (Z2-2N configuration tailored for delicate micro-testing) up to heavy-industry models handling 1000N (Z2-1000N rated for heavy automated lines).
- Nominal Instrument Accuracy Rating: Certified legacy calibration verified at ± 0.2% Full Scale (±1 Least Significant Digit accuracy boundary).
- Integrated Signal Sampling Frequency: 1000Hz internal scanning rate (1000 data conversions processed per 1 second), engineered for real-time peak force capture.
- Commercial Pricing Parameter: Discontinued (Contact ANS to receive verified custom configuration quotation metrics for the newer ZTS drop-in replacement family)

DISPLAY PROPERTIES & METROLOGY DATA PROVISIONS hiện trường
- Control Console Panel Interface: Traditional monochrome digital LCD tracking window featuring a software-driven 180-degree alphanumeric character reversal layout (180° Reversible Display logic).
- Local Keypad Interface Configuration: Built-in rubberized membrane button matrix mapping dedicated keys for Power, Zero, Send, and Peak/Track selection.
- Non-Volatile Memory Capacity: Internal storage space pre-calibrated to automatically catalog 1000 historical static torque/force data points for downstream reporting.
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + Legacy serial RS-232C port (Standard COM port interface linking to legacy PC hardware or mini printers).
  + Wide-amplitude Analog continuous waveform output rail (±2V DC output stream for chart plotters).

STRUCTURAL METALLURGY & POWER MANAGEMENT STANDARDS
- Base Hub Chassis Metallurgy: Lightweight high-impact engineered structural resin compound shell, molded flat to optimize one-handed handheld manual testing routines kề cận machine grids.
- Structural Mechanical Overload Ceiling: Passive structural load resilience certified up to 200% Full Scale nominal machine capacity via integrated internal physical stroke limiter stops.
- Systemic Backward-Compatibility Index: 100% Drop-in cross-compatibility verified against modern motorized/manual Test Stands, mounting bolts, and proprietary evaluation software of the current ZTS generation.
- Primary Operational Power Requirements: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
