NIDEC-SHIMPO / CHECKLINE HXY SERIES HEAVY-DUTY HIGH-CAPACITY RIGID MONOCOQUE DIGITAL FORCE GAUGE WITH REINFORCED DRIVE SHAFTS & COMPREHENSIVE TELEMETRY

DEEP PRODUCT OVERVIEW & HEAVY-INDUSTRY STRUCTURAL LOADING TEST INFRASTRUCTURE

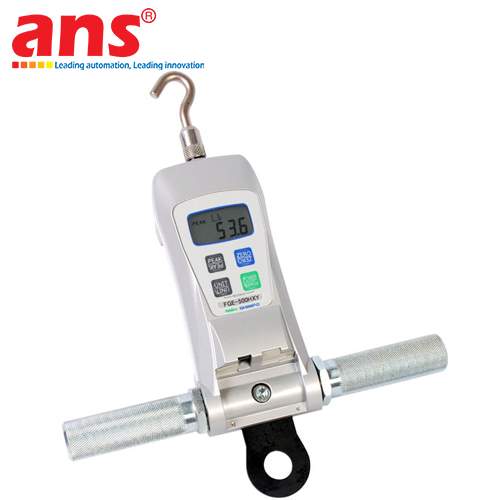

The NIDEC-SHIMPO / Checkline HXY Series (internally classified under its baseline engineering architecture as the High-Capacity FGV-XY Series) represents the global technological pinnacle in specialized heavy-duty electro-mechanical power validation engineering, configured as a high-precision bidirectional digital Force Gauge tracking a reinforced internal structural sensing core (High-Capacity Digital Force Gauge), developed and manufactured 100% in Japan by precision machinery titan NIDEC-SHIMPO Corporation, and distributed internationally through Checkline's logistical channels. Shifting away from standard handheld instruments designed for mid-range testing blocks, the HXY series functions as the definitive "heavy excavator tier" structural verification engine. The hardware encapsulates an unyielding, high-density internal molecular load cell locked rigid inside an extra-thick case-hardened alloy enclosure block, specified explicitly to endure severe structural fatigue and catastrophic material destruction sweeps that would instantaneously bend or disintegrate baseline portable indicators. Operating under a closed-loop real-time analytical topology, the HXY routes high-capacity load measurements perfectly smooth and uniform to discard structural deflection errors—monitoring the breaking thresholds of industrial heavy structural welds, the deflection stiffness curves of automotive leaf-spring suspensions, or the extreme terminal tensile snap limits of heavy aerospace steel cable lines hằng ngày, securing continuous facility asset traceability via authorized partner ANS.

UNCOMPROMISED SEVERE-DUTY METALLURGY MET WITH 5/16-18 REINFORCED HOUSING INTERFACING
The absolute performance assets electing the HXY series to handle multi-ton mechanical stress loops reside in its case-hardened structural reinforcement configurations:
- Massive Scale High-Capacity Loading Envelope: The HXY family is segmented into dedicated heavy industrial force frames, rated to safely process immense loading parameters ranging from 500 lbs (approx. 2224 N) up to an extreme maximum ceiling of 1000 lbs (approx. 4448 N). To completely neutralize the risk of mechanical coupling thread striping, structural shearing, or axial shaft fracturing under these extreme loads hằng ngày hằng ngày, the primary connection stem (Threaded Shaft) is pre-machined to a heavy-duty reinforced 5/16-18 metric standard size.
- Extra-Thick Die-Cast Aluminum Enclosure Defeating Deflection Failures: The entire chassis hull is pressure-milled from thick-section aerospace structural aluminum alloy. When a motorized test fixture pulls a dense steel workpiece scaling up to hundreds of kilograms, even a micro-inch structural vặn xoắn or bending deflection of the outer housing shell will alter the vector alignment and distort internal load cell readings. The HXY completely eliminates this tracking error via its rigid metal unyielding chassis layout, while offering total Faraday cage shielding against industrial electromagnetic interference (EMI/RFI) fields. Due to its substantial mass and heavy-duty load parameters, the HXY requires fixed integration onto heavy-duty Motorized or Manual Test Stand frames to preserve strict plant safety guidelines.

LIGHTNING-FAST 1000HZ SAMPLE INDUCTION FREQUENCY & Stand-MOUNTED LAB TELEMETRY
- True Capture of Structural Shatter Milestones (1000Hz Data Sweep): The integrated processing engine scans load metrics at an unwavering velocity of 1000 data conversions per single second (1000Hz frequency tracking). During high-load destructive testing loops, physical phôi shattering manifests inside split-second windows. This fast sampling rate ensures the gauge registers the exact maximum absolute peak force (Peak Force capture) at the precise split-second of material destruction, eliminating data lag.
- Software-Driven 180-Degree Screen Inversion Logic (Reversible Display): Features a clear, high-contrast digital LCD window. When engineering crews drop-in mount the tool inverted onto a heavy-duty vertical Test Stand frame to execute upward mechanical pulling routines, the internal firmware flips the alphanumeric text layout exactly 180-degree to face the operator's forward sightlines, removing reading delay errors.

HIGH-COMPATIBILITY DIGITAL MULTI-CHANNEL FIELDBUS SIGNAL DATA LOGGING
- Digital Synchronization and Statistical Process Control (SPC): The HXY houses an internal non-volatile memory block pre-programmed to catalog up to 1000 discrete high-force checking records for downstream batch tracing. Out of the box, the tool accommodates a comprehensive telemetry output matrix: hosting high-speed digital USB ports for immediate computer connectivity, serial RS-232C ports for ticketing printers or master PLC linking, and a continuous Analog waveform output rail (±1V DC continuous stream) for legacy chart plotter recorders.
- Automated Real-Time Go/No-Go Tolerance Evaluation Matrix: Field technicians program explicit high/low target force windows straight inside the internal device registry. When high-volume component checks run down the line, the integrated multi-color LED alert nodes auto-flash bright color bands to instantly notify floor operators of Pass/Fail data status, maximizing throughput and reducing bottleneck clearances significantly under certified ANS logistical distribution pipelines.

DYNAMIC METROLOGY & COUPLING PERFORMANCE DATA
- Original Equipment Design Manufacturer: NIDEC-SHIMPO Corporation (Kyoto, Japan)
- Western Commercial Distribution Partner: Checkline (Electromatic Equipment Co., Inc.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: HXY Series (High-Capacity DART Metric Engineering Platform)
- Device Structural Profile: High-capacity stand-mounted digital tension and compression force gauge with internal loadcell sensor.
- Monitoring Axis Force Vectors: Bidirectional closed-loop tracking, automatically resolving concurrent Tension (pulling loops) and Compression (pushing actions).
- Nominal Capacity Spectrum: Heavy-duty high-force configurations expanding from 500 lbs (approx. 2224 N structural capacity) up to an extreme maximum kịch trần ceiling of 1000 lbs (approx. 4448 N nominal machine load boundaries).
- Nominal Instrument Accuracy Rating: Certified calibration verified at a strict accuracy boundary tracking ± 0.2% across the full scale parameter (± 0.2% FS accuracy rating).
- Integrated Signal Sampling Frequency: 1000Hz internal scanning rate (1000 data conversions processed per 1 second), engineered for high-force dynamic peak force validation.
- Output Threaded Drive Shaft Specification: Heavy-duty reinforced 5/16-18 male thread size resisting structural shearing under reversing loads.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted high-capacity test stand fixtures)

DISPLAY PROPERTIES & METROLOGY DATA PROVISIONS hiện trường
- Control Console Panel Interface: High-legibility digital LCD tracking window equipped with a software-driven 180-degree alphanumeric flip feature (180° Reversible Display logic).
- Non-Volatile Onboard Data Storage: Internal memory capacity rated to automatically catalog 1000 inspection data logs paired with force direction vectors.
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + High-speed digital USB interface port for immediate computer connectivity.
  + Industrial standard RS-232C serial channel for direct ticketing printer or remote PLC master links.
  + Continuous Analog waveform output rail (±1V DC continuous stream for automated SPC software routing).
- Automated Tolerancing Logic Interface: Batch sorting validation via onboard real-time Go/No-Go alphanumeric indicators mated with multi-color chassis LEDs (Pass/Fail contact signaling).
- Selectable Metric Unit Matrix: lbf, kgf, and Newtons (N) instantly switchable via front panel button execution.

STRUCTURAL METALLURGY & POWER MANAGEMENT STANDARDS
- Base Chassis Substrate Metallurgy: Extra-thick case-hardened alloy structural aluminum block monocoque (Die-cast aluminum chassis rugged spec), surface-ground flat to prevent structural slip under severe mechanical tension fields; provides absolute immunity against industrial EMI/RFI fields.
- Fixed Assembly Mounting Layout: Integrated backplate mounting matrix featuring multiple pre-cast threaded anchor ports; strictly mandates fixed drop-in integration onto heavy-duty Motorized or Manual Test Stand frames.
- Control Panel Mechanical Interface: Continuous rubberized membrane button matrix featuring raised keys engineered for error-free input execution when wearing safety gloves.
- Primary Operational Power Requirements: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Structural Mechanical Overload Ceiling: Passive structural load resilience certified up to 150% Full Scale nominal machine capacity to eliminate internal loadcell element distortion.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
