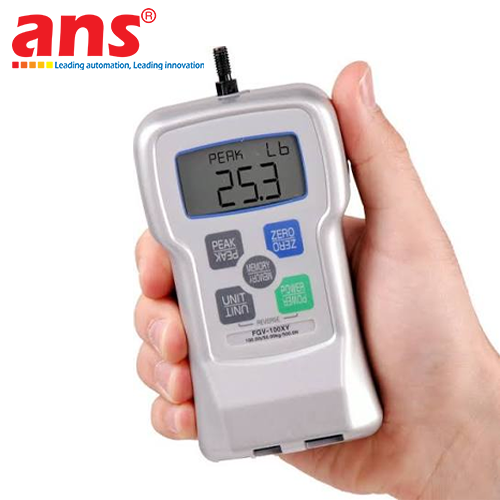

NIDEC-SHIMPO / CHECKLINE FGV-XY SERIES RUGGED DIE-CAST ALUMINUM MONOCOQUE ADVANCED DIGITAL HANDHELD FORCE GAUGE WITH INTERNAL LOAD CELLS & EXPANSIVE MEMORY

DEEP PRODUCT OVERVIEW & ADVANCED FIELD METROLOGY DIGITAL DATA INGESTION INFRASTRUCTURE
The NIDEC-SHIMPO / Checkline FGV-XY Series (internally classified under its baseline engineering code as the FGV DART Advanced Series) represents the global technological pinnacle in specialized handheld electro-mechanical power validation engineering, configured as a high-precision bidirectional digital Force Gauge tracking an integrated structural sensing core (Digital Force Gauge with Internal Sensor), developed and manufactured 100% in Japan by precision machinery titan NIDEC-SHIMPO Corporation, and distributed internationally through Checkline's logistical channels. Positioning within the built-in sensor force metrology product spectrum, the FGV-XY series stands as the premium flagship "Advanced" tier, heavily outperforming the baseline FGE standard variant by introducing automated internal data tracking arrays and multi-channel serial output capabilities. The hardware functions as the ultimate frontline "rugged analytical impact testing engine", specified explicitly to operate inside high-standard manufacturing laboratories and R&D verification blocks—inspecting electrical micro-terminal connector mating forces, plastic phôi sheet fracture margins, tactile microswitch spring resilience behaviors, or automated terminal wire-crimp tensile separations. Operating flawlessly across multi-shift routines hằng ngày, the system outputs high-resolution analytical telemetry streams perfectly smooth and uniform to discard manual logging bottlenecks and secure connected facility metrics via ANS distribution channels.

IRONCLAD DIE-CAST ALUMINUM ARMOR HOUSING MET WITH COMPACT 180-DEGREE SCREEN INVERSION
The distinct structural edge lifting the FGV-XY series into an unyielding solid-state instrument rests within its classic, severe-duty structural metallurgy:
- Die-Cast Aluminum Monocoque Casing Shielding: The entire handheld enclosure block is pressure-milled from aerospace-grade structural alloy aluminum, delivering an optimal, vibration-absorbing dead weight. This rigid configuration functions as a total Faraday cage structure, completely neutralizing 100% of handheld tactile muscle variations while isolating delicate internal sensor elements from aggressive industrial electromagnetic interference (EMI/RFI) fields generated by nearby automated high-power machine beds or welding lines hằng ngày hằng ngày. This preserves a perfectly flat, noise-free numerical tracing line untouched by field data jump failures.
- Software-Driven 180-Degree Screen Inversion Logic (Reversible Display): Houses a clear, high-contrast digital LCD tracking window. When floor teams drop-in mount the tool inverted onto a vertical Test Stand frame to execute upward mechanical pulling routines, the internal firmware flips the alphanumeric text layout exactly 180-degree to face the operator's forward sightlines, removing perspective skew errors and manual coordinate transposition lag. The frame outlines a streamlined công nghệ neck profile for secure one-handed field operation.

LIGHTNING-FAST 1000HZ REFRESH FREQUENCY RECORDING TERMINAL FAILURES WITH LUONG CUC AXIAL RESOLUTION
- Absolute Capture of Material Fracturing Milestones (1000Hz Data Sweep): The internal processing engine samples structural dynamic load curves at a high frequency of 1000 data conversions per single second (1000Hz frequency tracking). During destructive component stress checks, material shearing manifests inside split-second windows. This fast sampling rate ensures the gauge registers the exact maximum absolute peak force (Peak Force capture) at the precise point of dynamic failure.
- Automated Bidirectional Axis Evaluation: The internal micro-circuitry processes bidirectional force vector paths continuously, resolving concurrent Tension (pulling loops) and Compression (pushing actions) automatically to project precise positive/negative indicator alignments level over the LCD pane.

HIGH-DENSITY DATA ARCHIVING AND COMPREHENSIVE GO/NO-GO LOGIC OVERRIDES
The definitive technical assets electing the FGV-XY series for advanced automated testing networks reside in its deep analytical tracing and communication provisions:
- Non-Volatile Internal Data Registry Archive: Houses an onboard memory core pre-programmed to catalog up to 1000 discrete inspection points, eliminating error-prone manual clipboard field documentation.
- High-Compatibility Multi-Channel Signal Export (Data Output Matrix): The hardware connectivity matrix houses high-speed digital USB ports, serial RS-232C PC interfacing rails, and a specialized continuous Analog output terminal (±1V DC wave output). This analog configuration empowers facility calibration labs to bridge the force gauge straight to Statistical Process Control (SPC) quality software frameworks to render automated facility verification charts.
- Automated Real-Time Go/No-Go Tolerance Evaluation Matrix: Field technicians program explicit high/low target force windows straight inside the internal device registry. When high-volume component checks run down the line hằng ngày hằng ngày, the integrated multi-color LED alert nodes auto-flash bright color bands to instantly notify floor operators of Pass/Fail data status, maximizing throughput and reducing bottleneck clearances significantly under certified ANS logistical distribution pipelines.

DYNAMIC METROLOGY & COUPLING PERFORMANCE DATA
- Original Equipment Design Manufacturer: NIDEC-SHIMPO Corporation (Kyoto, Japan)
- Western Commercial Distribution Partner: Checkline (Electromatic Equipment Co., Inc.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: FGV-XY Series (DART Advanced Metric Engineering Platform)
- Device Structural Profile: High-precision handheld digital tension and compression force gauge with internal loadcell sensor.
- Monitoring Axis Force Vectors: Bidirectional closed-loop tracking, automatically resolving concurrent Tension (pulling loops) and Compression (pushing actions).
- Nominal Capacity Spectrum: Multi-tier scalable metric ranges expanding from the micro-force model FGV-0.5XY (Measuring limits down to 0.5 lbs / 2N tailored for cleanroom micro-assemblies) up to heavy industrial unit FGV-200XY (Rated to process structural wire snaps up to 200 lbs / 1000N).
- Nominal Instrument Accuracy Rating: Certified calibration verified at a strict accuracy boundary tracking ± 0.2% across the full scale parameter (± 0.2% FS accuracy rating).
- Integrated Signal Sampling Frequency: 1000Hz internal scanning rate (1000 data conversions processed per 1 second), engineered for dynamic peak force validation with micro-second responsiveness.
- Operational Algorithmic Tracing Modes: Software-selectable continuous real-time Track Mode and locked Peak Hold Mode.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted load ranges and fixture adapters)

DISPLAY PROPERTIES & HIGH-DENSITY METROLOGY DATA PROVISIONS hiện trường
- Control Console Panel Interface: High-legibility digital LCD tracking window equipped with a software-driven 180-degree alphanumeric flip feature (180° Reversible Display logic).
- Non-Volatile Onboard Data Storage: Internal memory capacity rated to automatically catalog 1000 inspection data logs paired with force direction vectors.
- Integrated Analytics Telemetry Feedback (Data Output Matrix):
  + High-speed digital USB interface port for immediate computer connectivity.
  + Industrial standard RS-232C serial channel for direct ticketing printer or remote PLC master links.
  + Continuous Analog waveform output rail (±1V DC continuous stream for automated SPC software routing).
- Automated Tolerancing Logic Interface: Batch sorting validation via onboard real-time Go/No-Go alphanumeric indicators mated with multi-color chassis LEDs (Pass/Fail contact signaling).
- Selectable Metric Unit Matrix: lbf, kgf, and Newtons (N) instantly switchable via front panel button execution.

STRUCTURAL METALLURGY & POWER MANAGEMENT STANDARDS
- Base Hub Chassis Metallurgy: Heavy-duty case-hardened alloy structural aluminum block monocoque (Die-cast aluminum chassis rugged construction), surface-ground flat to prevent structural slip; certified under supreme EMI/RFI noise filtration standards.
- Ergonomic Physical Morphology: Streamlined công nghệ neck profile optimized for secure one-handed handheld manual testing routines kề cận machine grids.
- Structural Mechanical Overload Ceiling: Passive structural load resilience certified up to 150% Full Scale nominal machine capacity to eliminate loadcell damage.
- Primary Operational Power Requirements: Internal high-capacity rechargeable Ni-MH battery cells or continuous 24/7 runtime driven via a standard automated AC power adapter.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
