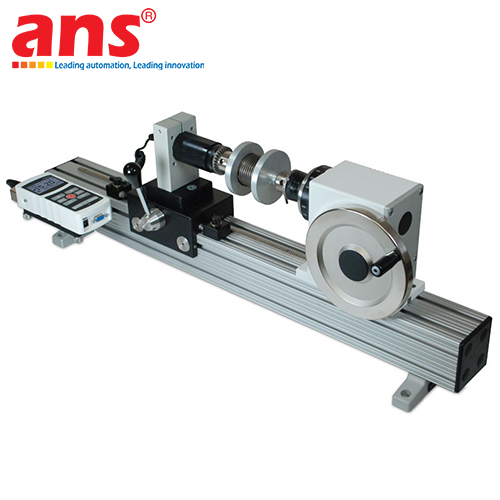

MARK-10 / CHECKLINE TST HIGH-STABILITY MANUAL HAND-WHEEL POWERED TORQUE TEST STAND SYSTEMS

DEEP PRODUCT OVERVIEW & SOLID-STATE MANUAL TORQUE VALDIATION INFRASTRUCTURE
The Mark-10 / Checkline TST represents the global industrial benchmark in specialized manual mechanical power testing engineering, configured as a high-precision Torque Test Stand driven via a centralized physical flywheel assembly (Manual Hand-Wheel Torque Test Stand), developed and manufactured 100% in the USA by metrology titan Mark-10 Corporation, and distributed internationally through Checkline's logistical channels. This advanced manual hardware functions as an uncompromised solid-state mechanical "pure kinetic coupling frame", engineered explicitly to execute structural torque failure checking, verification of packaging bottle closure slip forces (Cap grips checking), torsion spring elastic tracking, and electronic dial rotary control wear diagnostics. Shifting away from complex automated motorized platforms, the TST series delivers supreme value-driven economy and extreme field agility for multi-shift routines across testing laboratories, factory QA/QC checkout lines, and case-hardened metal tool-tip milling shops, tracking continuous runtime reliability metrics via authorized supplier ANS.

IRONCLAD WORM GEAR TRANSMISSION METHODOLOGY RESISTING ROTATIONAL KICKBACK STRESSES
The distinct structural edge lifting the TST stand into a high-accuracy manual testing instrument rests within its internal closed-loop mechanical power path configuration:
- Concentric Balanced Hand-Wheel Actuator: The introduction of structural torque loading across sample cargo phôi elements is powered via a side-mounted precision wheel assembly. This hand-wheel profile is surface-ground flat and weight-balanced to empower laboratory operators with highly granular rotational sensitivity, capturing trace tactile feedback of material elastic yield margins hằng ngày.
- Integrated Self-Locking Worm Gear System: Positioned as the foundational mechanical core, input energy generated by the human operator routes through a dense, heavy-duty internal worm gear gearbox assembly. This drivetrain architecture embodies an absolute self-locking layout constraint, completely neutralizing reverse reactive rotational forces from kicking backward straight to the technician's hands (Anti-kickback / Zero residual backlash tracking) when test pieces undergo intense material compression. Simultaneously, the box smooths out the rotational sweep, cutting out micro-vibrations and speed jumps to ensure inline sensors capture pure peak torque parameters securely up to full scale.
- Advanced Mechanical Advantage Amplification: Thanks to the high section modulus leverage ratios engineered inside the internal planetary gearteeth lines, operators apply minimalist hand effort over the wheel to generate massive structural twisting loads directly over the mating sample boundaries.

VERTICAL EXPANSIVE CHASSIS METALLURGY MET WITH ADAPTIVE MODULAR COMPONENT PAIRING
- Space-Saving Low-Clearance Column Footprint: The TST features a streamlined vertical layout (Vertical format), minimizing plant workbench real estate demands. The column chassis is precision-machined from high-strength cast alloy aluminum paired with case-hardened structural steel shafts to form a highly rigid, deflection-resistant framework. The massive base plate features pre-drilled symmetrical counter-bored tie-down provisions to clamp the stand rigid straight onto workspace benches, easily managing severe torque reactions without risking structural machine tipping.
- Precision Height Adjustment Linear Slider Module: Integrates an adjustable axial travel slider assembly tracing the vertical tracking column. Technicians manipulate a heavy-duty locking turn-knob to slide the main instrumentation carrier housing smoothly, customizing clearances to lock and flush perfectly alongside variable metric lengths of long or short sample phôi lots.
- Comprehensive Universal Modular Interfacing: The TST skeleton operates as an open-architecture mechanical frame. The device is pre-engineered with standardized multi-point mounting hole configurations designed to drop-in mount independent remote smart torque sensors (such as the high-accuracy Mark-10 Series R50 product families), centralized digital microprocessor control displays (Model 5i or 7i indicators), and specialized metric bottle chuck closures to establish an uncompromised automated quality inspection cell supplied through certified ANS logistics networks.

DYNAMIC PROPULSION METROLOGY & MANUAL STAND PERFORMANCE DATA
- Equipment Manufacturer: Mark-10 Corporation (New York, USA)
- Commercial Distribution Re-brander: Checkline (Electromatic Equipment Co.)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Certified Full System Part Number: TST Series (Vertical Setup Configuration)
- Device Structural Profile: Flywheel-driven manual mechanical torque testing stand platform.
- Nominal Torque Loading Capacity: Rated to safely manage extreme twisting loads up to 11.3 Nm (Equivalent to 100 lb-in nominal torque boundaries).
- Operational Propulsion Medium: Manual hand-wheel mechanical drive mated with an integrated self-locking anti-kickback worm gear assembly.
- Torsional Structural Rigidity: Torsionally stiff case-hardened mechanical frame layout eliminating loss of motion and positioning angular play.
- Vertical Travel Slider Adjustability: Adaptive height clearance adjustments managed via an sliding bracket assembly with an integrated quick-lock thumb screw.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on target cargo specs and sensor pairings)

MECHANICAL PROPERTIES & STRUCTURAL METALLURGY hiện trường
- Base Chassis Base Metallurgy: High-density engineered structural alloy aluminum column block combined with hard-turned steel guides processed with wear-resistant industrial plating, resisting structural deflection stress.
- Anchor Hub Plate Architecture: Flat-ground structural steel base plate (Base frame) incorporating pre-cast counter-bored anchor ports to lock down the stand onto facility workstations against shifting.
- Ecosystem Interconnect Adaptability Matrix:
  + Pre-machined bracket faces welcoming direct inline smart torque sensors: Mark-10 Series R50 family configurations.
  + Dedicated slider mount provisions matching master instrumentation: Mark-10 Model 5i or Model 7i digital display consoles.
  + Auxiliary Device Interfacing: High-compatibility drop-in matching metric parallel container chucks (Cap grips), universal jaw vises, and custom pin adapters.
- Lubrication & Preventative Maintenance Mandate: Enclosed internal worm gear teeth packed for life with lifetime synthetic high-temperature lubricants; 100% Maintenance-free concerning physical grease line service loops.
- Mechanical Production Origin: 100% Engineered and Manufactured in USA (USA Origin).
