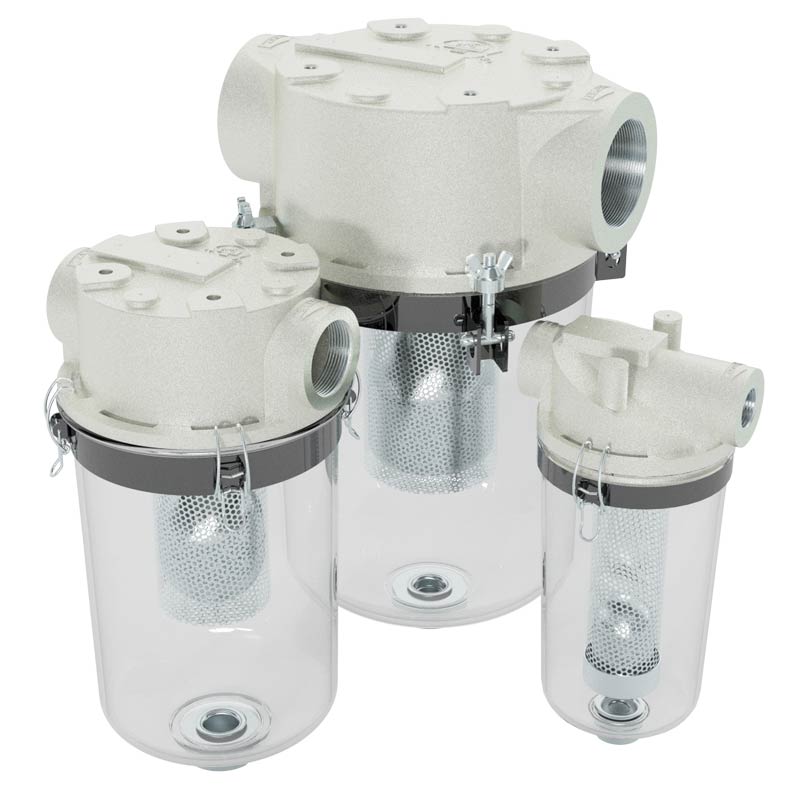

Đại lý Solberg Vietnam,Includes 5 micron polyester element inside CT-235P-301C Solberg Vietnam



MODEL

CT-235P-301C

INLET CONNECTION SIZE (IN.)

3

OUTLET CONNECTION SIZE (IN.)

3

CONNECTION TYPE

BSPP

FLOW (M3/HR)

510

DIM A (MM)

473

DIM B (MM)

70

DIM C (MM)

343

DIM D (MM)

330

DIM E (MM)

229

WEIGHT (KG)

13,6

MEDIA

Polyester

MICRON RATING

5

FINISH

Aluminum/ Black Powder

QUANTITY PER BOX

1

CASE QUANTITY

1

REPLACEMENT ELEMENT

235P

Features

  • Easy maintenance due to see through bucket (ST Series)

  • Compact design for space restrictions; min. service area

  • Inlet above element for extended element life &
    maintenance intervals

  • Corrosive resistant cast aluminum top with machined
    connections and integrated baffle design

  • Black powder coat carbon steel drop down bucket (CT)

  • Shatter-resistant polycarbonate drop down bucket (ST)

Technical Specifications

  • Vacuum Rating: medium vacuum service*

  • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)

  • Filter change out differential: 15-20" H2O (37‐50 mbar) over initial Δ P

  • Polyester: 99%+ removal efficiency standard to 5 micron

  • Paper: 99%+ removal efficiency standard to 2 micron

Options

  • Vacuum gauge

  • Taps for gauge and mounting brackets

  • Swing bolts for heavy duty environments

  • Drain ports

  • Extended bucket (select CT models)

  • Various finishes (CT)

  • Various media

  • Reverse pulse configuration

  • Spool piece extender (select ST models)

Applications

  • Ash Handling

  • Cement

  • Compressor-Piston

  • Envelope Manufacturing

  • Factory Automation

  • Glass, Ceramic-Vacuum

  • Paper Processing

  • Pneumatic Conveying Systems

  • Vacuum Packaging

  • Vacuum Systems-Central

  • Waste Water Aeration

  • Woodworking

  • Intake Suction Filters

  • Remote Installations for Piston and Screw Compressors
