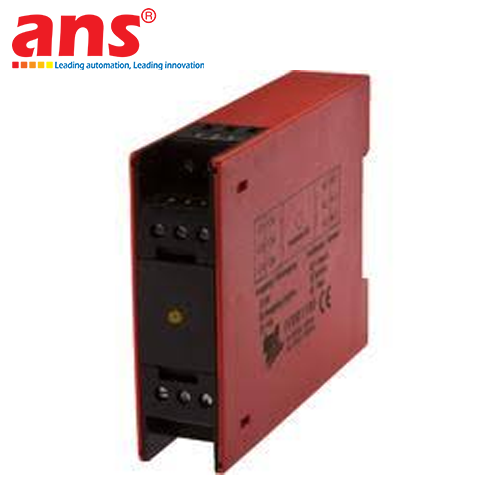

The IV99 Series Inductive Switching Amplifier (Part Number: IV991196) developed and manufactured by premier German sensor specialist ipf electronic gmbh is a dedicated evaluation and signal conditioning module designed for seamless pairing with remote passive high-temperature inductive sensor probes (specifically models IN991197 and IN32E332 operating up to +230°C).

PRODUCT SPECIFICATIONS & FEATURES (PART NO: IV991196):
- Part Number: IV991196
- Manufacturer: ipf electronic gmbh (Germany)
- Device Category: Inductive Sensor Switching Amplifier / Remote Evaluation Unit
- Housing Dimensions: Slimline module format measuring 22 mm wide x 75 mm high x 99 mm deep, snapping directly onto standard 35 mm DIN rails inside control cabinets.
- Switching Output: Solid-state PNP Normally Open (PNP NO) transistor output, directly interfacing with standard PLC digital inputs, counters, or control relays.
- Operating Voltage: Broad 10 – 35 V DC supply range with integrated noise filtering and short-circuit protection.
- Termination: Heavy-duty industrial screw terminal blocks for secure wiring from the high-temperature sensor lead and cabinet power/PLC lines.
- Status Diagnostics: Multi-status front-panel LEDs indicating power supply readiness and inductive target detection in real time.

KEY HIGHLIGHTS:
- Complete Thermal Isolation: Allows passive sensing heads (such as IN991197 or IN32E332) to withstand harsh heat up to 230°C inside furnace zones, while the active semiconductor switching circuits remain safe inside a climate-controlled cabinet.
- Outstanding High-Frequency Filtering: Advanced analog/digital input filtering suppresses electrical interference, magnetic noise, and false triggers caused by mechanical machine vibration.
- Industrial German Reliability: Engineered for continuous 24/7 industrial duty, ensuring exceptional repeatability and eliminating unplanned downtime in extreme manufacturing environments.

• Manufacturer: ipf electronic gmbh
• Origin: Germany
• Part Number: IV991196
• Device Type: Inductive Switching Amplifier / Evaluation Unit (for high-temperature inductive sensors)
• Sensor Probe Compatibility: Specifically designed for ipf electronic passive high-temp sensor heads (e.g., IN991197, IN32E332, IN99, and IN32 series)
• Dimensions (H x D x W): 75 x 99 x 22 mm
• Operating Voltage Range: 10 – 35 V DC
• Residual Ripple: ≤ 10%
• No-Load Current Consumption: ≤ 20 mA
• Switching Output Logic: PNP Normally Open (PNP NO)
• Maximum Output Switching Current: 200 mA (up to 400 mA depending on load)
• Voltage Drop: ≤ 2.5 V
• Switching Frequency: High-speed response (determined by paired sensor probe)
• Operational Status Display: LED indicators for power and switching output status
• Electrical Termination: Screw terminal blocks (Conductor size 0.2 – 2.5 mm²)
• Mounting Style: Standard 35 mm DIN Rail (EN 60715)
• Housing Material: Flame-retardant Polyamide / PPO engineering plastic
• Ingress Protection Rating: IP20 (Finger-safe control cabinet protection)
• Operating Ambient Temperature of Amplifier: -10°C to +60°C
• Typical Applications: Remote signal evaluation for metallurgical annealing ovens, automotive paint baking tunnels, hot metal stamping/rolling mills, thermal forming machines, and tyre curing presses.
