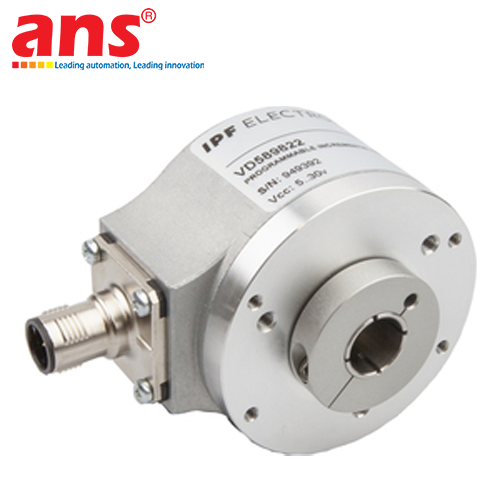

The VD58 Series Programmable Incremental Rotary Encoder (Part Number: VD589822) manufactured by premier German sensor specialist ipf electronic gmbh provides a high-performance digital angular and speed measurement solution for industrial motion control. It features user-programmable pulse counts via dedicated software interface, dramatically reducing spare part inventories by allowing one encoder to cover multiple operational requirements.

PRODUCT OVERVIEW & SPECIFICATIONS (PART NO: VD589822):
- Part Number: VD589822
- Manufacturer: ipf electronic gmbh (Germany)
- Sensor Type: Programmable Incremental Optical Rotary Encoder
- Enclosure Dimensions: Industry-standard outer diameter Ø58 mm, compact axial length of only 45 mm.
- Shaft Mechanism: Hollow Shaft (Blind Hollow Shaft) with 12 mm inner diameter, complete with a flexible anti-twist stator coupling bracket to isolate mechanical motor vibrations.
- Ultra-High Programmable Resolution: User-definable from 1 pulse up to 65,536 pulses per revolution (ppr), providing outstanding precision equivalent to 16-bit angular resolution.
- Universal Electrical Interface: Broad 5 - 30 V DC supply voltage range supporting software-programmable Push-Pull (HTL) or RS422 (TTL Line Driver) outputs, compatible with all PLCs, high-speed counters, and motion controller cards.

KEY HIGHLIGHTS:
- Robust IP65 Aluminum Housing: Die-cast industrial aluminium casing equipped with oil-resistant shaft seals, providing IP65 ingress protection against coolant sprays, dust, and shop floor oils.
- Quick-Disconnect M12 8-Pin Interface: Equipped with an industrial-grade M12 8-pin gold-plated connector for rapid, error-free wiring and reliable EMC shielding.
- High Dynamic Speed Rating: Heavy-duty precision bearing architecture rated for high-speed industrial rotations up to thousands of RPM with minimal heat dissipation.

• Manufacturer: ipf electronic gmbh
• Origin: Germany
• Part Number: VD589822
• Device Category: Programmable Incremental Rotary Encoder
• Housing Diameter: Ø 58 mm
• Body Length: 45 mm
• Shaft Type: Hollow Shaft (Ø 12 mm bore diameter)
• Programmable Resolution: 1 to 65,536 pulses per revolution (ppr)
• Operating Supply Voltage: 5 – 30 V DC
• No-Load Current Consumption: ≤ 30 mA (at 24V DC), ≤ 80 mA (at 5V DC)
• Output Circuit / Interface: Programmable HTL (Push-Pull) or TTL (RS422 Line Driver)
• Output Channels: Channel A, B, Z (Zero reference index) and inverted signals A/, B/, Z/
• Maximum Switching Frequency: Up to 820 kHz
• Electrical Connection: M12 Connector, 8-Pin (Radial pin orientation)
• Maximum Mechanical Rotational Speed: 6,000 rpm
• Housing Material: Die-cast Aluminium Alloy
• Shaft Material: Stainless Steel
• Ingress Protection Rating: IP65 (Dust-tight and splash water resistant)
• Shock & Vibration Resistance: Shock 100g (6ms), Vibration 10g (10-2000Hz)
• Ambient Operating Temperature: -40°C to +85°C
• Typical Applications: Spindle speed feedback for CNC milling machines, high-speed rotary labeling lines, web printing press rollers, overhead gantry cranes, and automated robotic sorting systems.
