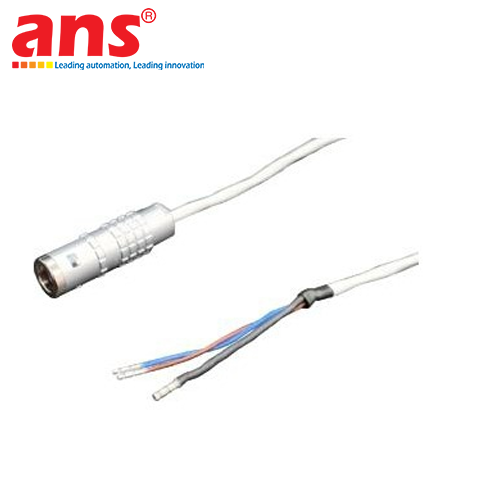

The VKAE Series High-Temperature Sensor Connection Cable (Part Number: VKAE6941) manufactured by premier German industrial sensor specialist ipf electronic gmbh is a high-integrity cabling solution designed for interconnecting high-temperature passive inductive sensors (such as IN991197 and IN32E332) with remote switching evaluation amplifiers (such as IV991196) over a 15-meter transmission distance.

PRODUCT SPECIFICATIONS & FEATURES (PART NO: VKAE6941):
- Part Number: VKAE6941
- Manufacturer: ipf electronic gmbh (Germany)
- Product Category: High-Temperature Shielded Sensor Connection Cable (-40°C to +250°C)
- Cable Length: 15 meters (15m), providing the optimal run length from high-heat processing zones to remote electrical control enclosures.
- Termination Architecture:
  + End 1: Lemo Female (socket) 2-pin Straight connector featuring a precision metal push-pull latching mechanism, high-conductivity contacts, and an IP67 environmental seal.
  + End 2: Free conductor end with 2 x 0.34 mm² pre-stripped wire leads for direct screw/spring terminal connection into IV991196 evaluation modules.
- PTFE (Teflon) Sheathing: Heavy-duty Polytetrafluorethylene (PTFE) outer jacket rated for extreme thermal cycles from -40°C to +250°C, offering non-flammability, mechanical abrasion resistance, and absolute inertness against industrial oils, cutting fluids, and aggressive acids.
- High-Density Braid Shielding: Complete braided metallic shield eliminates electromagnetic noise (EMC) interference from nearby high-power variable frequency drives (VFDs) and heavy machinery motor lines.

KEY HIGHLIGHTS:
- Outstanding Thermal Resilience up to +250°C: Operates continuously in extreme heat environments where conventional PVC, PUR, or silicone cables degrade or fail.
- Heavy-Gauge 2 x 0.34 mm² Conductors: Lower conductor resistance minimizes high-frequency signal attenuation over the full 15m distance, ensuring maximum measurement accuracy.
- Industrial IP67 Lemo Metal Coupling: Ensures positive dust-tight and moisture-sealed engagement at the sensor interface.

• Manufacturer: ipf electronic gmbh
• Origin: Germany
• Part Number: VKAE6941
• Component Category: High-Temperature Shielded Sensor Connection Cable
• Device Compatibility: ipf electronic high-temperature proximity sensors (IN991197, IN32E332) and switching amplifiers (IV991196)
• Cable Length: 15 meters
• Connector Type (End 1): Lemo Female socket 2-pin Straight (Metal push-pull locking connector)
• Connector Type (End 2): Free conductor end (Stripped flying leads)
• Core Conductors: 2 x 0.34 mm²
• Ambient Operating Temperature Range: -40°C to +250°C
• Outer Sheath Material: Polytetrafluorethylene (PTFE / Teflon)
• Shielding Type: Braided metallic shield (EMC Protected)
• Ingress Protection Rating (Connector): IP67 (Dust-tight and protected against water immersion)
• Thermal & Chemical Resistance:
  - Resilient to severe continuous heat and rapid thermal cycling
  - Resistant to industrial oils, coolants, aggressive solvents, and flame propagation
• Contact Plating: Gold-plated high-conductivity contacts
• Typical Applications: Signal routing from automotive e-coat paint curing tunnels, tyre vulcanization presses, steel hot rolling mills, and glass annealing lehrs back to IV991196 switching amplifiers.
