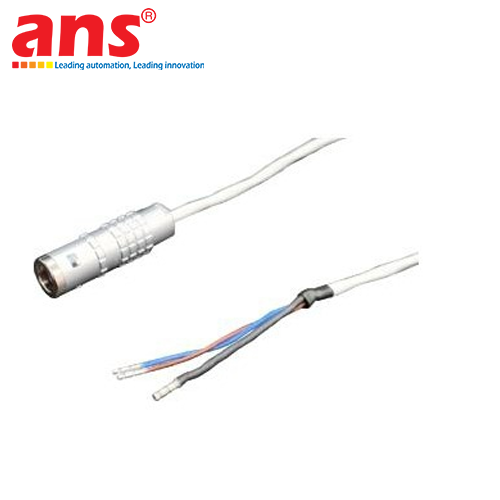

The VKC0 Series High-Temperature Sensor Connection Cable (Part Number: VKC0E333) manufactured by premier German industrial sensor specialist ipf electronic gmbh is a specialized high-integrity cabling solution designed for long-distance signal interconnection between high-temperature passive inductive sensors (such as IN991197 and IN32E332) and remote switching evaluation amplifiers (such as IV991196).

PRODUCT SPECIFICATIONS & FEATURES (PART NO: VKC0E333):
- Part Number: VKC0E333 (or VKC0E333-S)
- Manufacturer: ipf electronic gmbh (Germany)
- Product Category: High-Temperature Shielded Sensor Connection Cable
- Cable Length: 30 meters (30m), enabling direct routing from hot process machine envelopes straight into remote control cabinets without intervening junction boxes.
- Termination Architecture:
  + End 1: Female (socket) 2-pin Straight connector featuring a precision metal Lemo-style push-pull locking system and an IP67 waterproof ingress seal.
  + End 2: Free conductor end with 2 x 0.25 mm² pre-stripped wire leads for direct screw/spring terminal connection.
- PTFE (Teflon) Sheathing: Heavy-duty Polytetrafluorethylene (PTFE) outer jacket provides superior thermal stability, non-flammability, mechanical abrasion resistance, and absolute inertness against industrial oils, cutting fluids, and aggressive acids.
- High-Density Braid Shielding: Complete braided metallic shield eliminates electromagnetic noise (EMC) interference from nearby high-power variable frequency drives (VFDs) and motor lines over the entire 30m length.

KEY HIGHLIGHTS:
- High Signal Integrity Over 30m Runs: Low conductor resistance and premium shielding prevent signal attenuation and false triggers between the sensing coil and evaluation amplifier.
- Unrivaled Thermal Resilience: Resists embrittlement, hardening, and insulation breakdown under continuous thermal exposure in demanding industrial plants.
- Industrial IP67 Lemo Metal Coupling: Ensures positive dust-tight and moisture-sealed engagement at the sensor interface.

• Manufacturer: ipf electronic gmbh
• Origin: Germany
• Part Number: VKC0E333
• Component Category: High-Temperature Shielded Sensor Connection Cable
• Device Compatibility: ipf electronic high-temperature proximity sensors (IN991197, IN32E332) and switching amplifiers (IV991196)
• Cable Length: 30 meters
• Connector Type (End 1): Female socket 2-pin Straight (Lemo-type metal locking connector)
• Connector Type (End 2): Free conductor end (Stripped flying leads)
• Core Conductors: 2 x 0.25 mm²
• Outer Sheath Material: Polytetrafluorethylene (PTFE / Teflon)
• Shielding Type: Braided metallic shield (EMC Protected)
• Ingress Protection Rating (Connector): IP67 (Dust-tight and protected against water immersion)
• Thermal & Chemical Resistance:
  - Engineered for high continuous ambient temperatures
  - Resistant to industrial oils, coolants, aggressive solvents, and flame propagation
• Contact Plating: Gold-plated high-conductivity contacts
• Typical Applications: Signal routing from automotive e-coat paint curing tunnels, tyre vulcanization presses, steel hot rolling mills, and glass annealing lehrs back to remote control cabinets.
