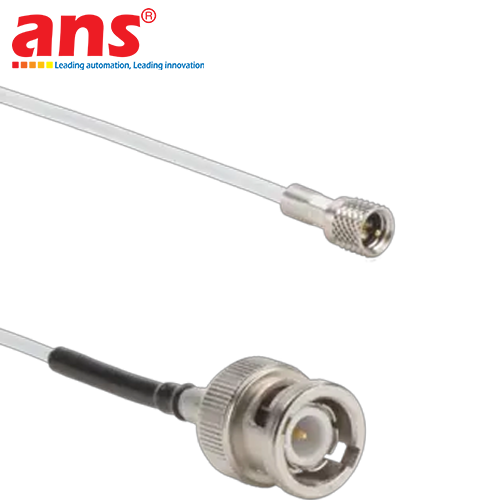

KISTLER 1761B5 COAXIAL SIGNAL CONNECTION CABLE (ID: 18010523)

DEEP PRODUCT OVERVIEW & SYSTEM ARCHITECTURE
The Kistler 1761B5 (Order Material Number: 18010523) is a high-grade industrial coaxial signal connection cable (Coaxial Connection Cable) belonging to the premium measurement infrastructure ecosystem engineered by the global precision mechanical measurement leader Kistler Instrumente AG (Switzerland). Controls and test engineers must note that this device does not function as an isolated standalone sensor; instead, it serves as a highly specialized, ultra-precise interconnect component compliant with the most stringent industrial evaluation benchmarks. The cable comes standard with a 5-meter physical span (indicated by the "B5" suffix string), establishing a highly reliable electrical and mechanical bridge between volatile mechanical test areas (where sensors are rigidly anchored) and the remote clean master control room floor (where analytics computing racks reside). Driven by its heavy-duty internal shielding grids and proprietary specialized plug pairings, the Kistler 1761B5 secures total data stream integrity, ensuring high-frequency analog signals travel with near-zero voltage drop or phase distortion across challenging testing tracks.

SPECIALIZED CALIBRATION FOR VOLTAGE OUTPUT & IEPE PIEZOTRON SENSORS
The structural micro-capacitance profile of the Kistler 1761B5 is purposefully optimized to route signals generated specifically by "Voltage output sensors". Within Kistler's deep instrumentation architecture, this cable is fully compatible with advanced Piezotron (IEPE / ICP) type accelerometers, dynamic force washers, and high-frequency pressure transducers that house integrated microelectronic signal conditioning circuits inside the sensor cell shell. These voltage-driven internal electronics demand an interconnect cable with minimal attenuation parameters and a built-in capacity to eliminate triboelectric currents—the high-frequency electrostatic noise sparked by friction inside the insulation layers when a cable undergoes violent mechanical shaking. The Kistler 1761B5 systematically dampens these triboelectric friction spikes, ensuring the raw analog curves captured by the DAQ equipment remain exceptionally clean, crisp, and drift-free throughout extensive production trial runs.

HYBRID CONNECTIVITY: KIAG 10-32 UNF MICRODOT TO INDUSTRIAL BNC MAPPING
Unmatched physical joint reliability is achieved across the Kistler 1761B5 layout via two distinct high-performance connector blocks:
- Connector End A (Anchor node directly matching the Sensor terminal): Fitted with Kistler's proprietary KIAG 10-32 UNF positive (Male) micro-threaded plug, also recognized under standard Microdot interfaces. The "KIAG" (Kistler Instrumente AG) engineering index represents a tight-tolerance, ultra-fine mechanical thread sequence. This design allows technicians to lock the cable assembly into the sensor shell port under heavy torque limits, guaranteeing that the electrical interface cannot shake loose, loosen, or suffer from signal micro-breaks even under continuous heavy g-force shock profiling.
- Connector End B (Terminal matching the Analyzer / Readout array): Fitted with an industrial standard BNC positive (Male) bayonet plug with a secure 90-degree twist lock layout. This allows seamless plug-and-play hookup straight into standard oscilloscopes, high-speed signal analyzers, and main DAQ card chassis, drastically minimizing field termination setup times.

PREMIUM RG196 COAXIAL INFRASTRUCTURE & SEVERE TEMPERATURE RESISTANCE
- Elite Technical RG196 Coaxial Core: The main lead wire is manufactured from premium RG196 standard miniature coaxial elements, maintaining an ultra-slim external diameter profile (approx. 1.8 mm to 2.0 mm). This yields maximum mechanical bend radius flexibility, letting technicians easily snake the cable through tight machine recesses or compact robotic articulation joints.
- Ruggedized Technical Teflon PTFE Insulation Jacket: Infuses the assembly with superior technical resistance against aggressive industrial oils, tool emulsifiers, volatile chemical splashes, and airborne solvent grime. Crucially, the PTFE substrate provides elite high-temperature tolerance, allowing the Kistler 1761B5 to pass deep into combustion engine dyno cells or industrial test ovens without suffering from shell cracking, wire melting, or baseline capacitance drift. This premium accessory is manufactured with 100% verified EU (European Union) origin, ensuring absolute compliance with global industrial measurement guidelines.

NOMINAL DATA & INFRASTRUCTURE CLASSIFICATION
- Equipment Manufacturer: Kistler Instrumente AG (Switzerland)
- System Order Code: 1761B5
- Warehouse Material Number (Material nr.): 18010523
- Product Classification: High-Precision Shielded Coaxial Signal Cable (Connection Cable)
- Mechanical Production Origin: 100% Verified EU (European Union)
- Total Cable Physical Length: 5 meters standard span (Provides extensive reach for laboratory cells and test chambers)

ELECTRICAL DATA & SYSTEM COMPATIBILITY
- Primary Design Architecture: Explicitly engineered for "Voltage output sensors"
- Compatible Sensor Tech Ecosystem: Kistler Piezotron product group, high-frequency IEPE accelerometers, ICP dynamic force washers, and pressure transducers fitted with on-board integrated electronic conditioners.
- Cable Capacitance Profile: Micro-capacitance layout designed to mitigate signal attenuation and entirely suppress internal friction-induced triboelectric voltage spikes.

CONNECTION GAUGE & CONNECTOR MECHANICAL DATA
- Connector Terminal End A (Sensor Interface Node):
+ Connector Standard: Proprietary KIAG 10-32 UNF specification (Standard Microdot footprint)
+ Mechanical Interface State: Positive (Male orientation)
+ Locking Mechanism: Ultra-fine thread sequence for vibration-proof mechanical anchoring
- Connector Terminal End B (Instrumentation Interface Node):
+ Connector Standard: Universal Industrial BNC specification
+ Mechanical Interface State: Positive (Male orientation)
+ Locking Mechanism: Rapid 90-degree twist-action bayonet mechanical coupling lock

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Coaxial Cable Element Standard: Miniature RG196 Coaxial Specification
- Nominal Cable Outer Diameter: Approx. 1.8 mm to 2.0 mm (Optimized for maximum tight-bend flexibility)
- Outer Protective Insulation Jacket & Inner Insulator: Heavy-duty Technical Teflon Polymer (PTFE)
- Enclosure Shielding Profile: Full braided metal grid matrix for total rejection of ambient industrial electromagnetic noise.
- Material Endurance: Highly resilient against industrial chemical erosion, machine oils, tool cooling fluids, and mechanical abrasion.

ENVIRONMENTAL PERFORMANCE & QUALITY COMPLIANCE
- Thermal Endurance Spectrum: Certified for demanding high-temperature environments (PTFE thermal shell engineered for engine test dynos, combustion profiling, and test furnaces)
- Signal Protection Level: Elite shielding coefficients keeping analog waveforms completely clean.
- Alignment Standards: Fully certified under Kistler's global quality assurance guidelines for laboratory and industrial precision accessories.
