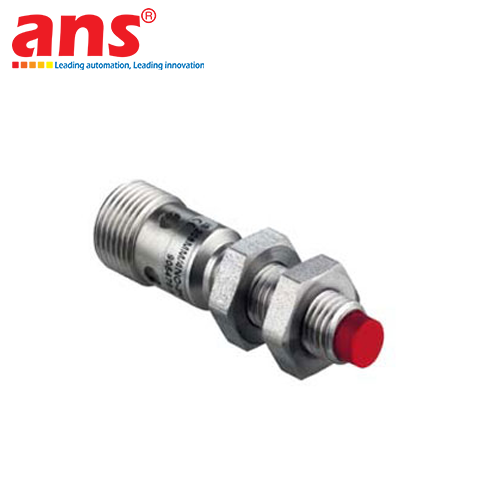

Leuze IS 108 MM/2NO-4N0

Product Overview: The Leuze IS 108 MM/2NO-4N0 inductive proximity sensor is a high-performance solid-state metal diagnostics instrument belonging to the world-renowned cylindrical Series 108 portfolio, engineered and manufactured by Leuze in Germany. Within advanced mechanized infrastructures, high-velocity sorting conveyor junctions, micro-scale electronic component assembly lines, multi-axis automated robotic arm claws, and intricate automated packaging setups, executing non-contact target tracking within extremely small, tight mechanical boundaries demands terminal equipment that features heavily stripped-down outer dimensions while retaining ultra-fast signal response latencies.

The IS 108 MM/2NO-4N0 variation addresses these complex operational parameters directly by combining a sub-miniature M8 threaded nickel-plated brass casing with an advanced internal circuit designed to repel ambient electromagnetic frequency (EMF) noise, ensuring continuous error-free data logging across heavy facility floor zones.

Eddy Current Oscillation Physics and Mechanical Advantages of Flush Mounting: The underlying technological paradigm driving the IS 108 MM/2NO-4N0 variant leverages sophisticated high-frequency Eddy Current Killed Oscillator (ECKO) physics. The sensor's active front sensing face, molded from high-grade industrial engineering polymer, continuously projects a high-frequency alternating electromagnetic field outwards into the proximate spatial tracking zone. When a target medium composed of conductive metal enters this alternating magnetic path, localized circulating loop currents—known as Eddy Currents—are automatically induced across the metallic target's surface. These induced eddy currents generate a secondary, counter-acting magnetic field that drains energy straight from the sensor's internal LC tank oscillator circuit, causing a significant dampening of the internal oscillation amplitude. The integrated solid-state logic engine analyzes this amplitude reduction loop with high resolution, immediately shifting the output status of the solid-state transistor loops to pass automated control discrete data over cable lines.

The definitive mechanical asset of this hardware package centers on its Flush (Embeddable) geometry. In this layout, the plastic sensing cap containing the primary electromagnetic coil remains completely shielded past the thread boundary by the surrounding metal M8 casing wall. Consequently, field technicians mounting the device onto automated metal frames can embed the sensor completely flush with the surrounding metallic support structure without triggering lateral magnetic cross-talk or side-interference errors. This flush architecture provides maximum physical armor for the sensor face against oncoming mechanical impacts, dramatically extending hardware service life parameters inside compact machine tool slots, micro-assemblies, or moving robotic grippers.

🛠️ FIELD INSTALLATION PROMPT & SIGNAL INTEGRITY ALIGNMENT:

• Assured Operational Tracking Windows: While the theoretical nominal dynamic bound is rated at 2 mm (audited using standard structural Carbon Steel Fe360), the factory-certified assured operating distance window spans from 0 to 1.6 mm to account for thermal expansion and mechanical equipment vibration variances. Field crews should position the sensor face at a steady distance of 1.2 to 1.5 mm relative to the passing metal plates to capture peak data sensitivity while maintaining clear physical safety gaps.

• Synchronized Telemetry Dual NO Output Matrix: Features concurrent real-time data loops via two independent solid-state channels configured for Normally Open (2 x NO) operation. This dual transistor setup empowers supervisory PLC automation architectures to interface with preferred logic states or capture parallel diagnostic data blocks directly from the hardware without requiring secondary external relay blocks inside the panel enclosure.

Massive 3000 Hz High-Frequency Switching and Hardened Circuit Safety: The standout performance parameter enabling the IS 108 MM/2NO-4N0 model to dominate high-speed mechatronic tracking arrays is its extraordinary switching frequency rating, which reaches smoothly up to 3000 Hz (executing 3000 logic discrete operations inside a single-second timeframe). This processing velocity makes it the perfect part choice for high-speed gear-tooth counting, high-speed motor shaft velocity tracking, or index timing cam validation loops inside automated packaging grids. In professional loop engineering, the effective switching distance must be adjusted using deterministic metallurgical multipliers based on the target material's conductivity: Carbon Steel Fe360 tracks at full specifications (Correction Factor of 1.0), Stainless Steel targets track at roughly 1.6 mm (Correction Factor of 0.8), Brass components achieve approximately 1.1 mm (Correction Factor of 0.55), pure Aluminum tracks at 0.9 mm (Correction Factor of 0.45), and raw Copper tracks lock stably at about 0.8 mm (Correction Factor rated at 0.4).

The internal solid-state circuitry is reinforced with premium heavy-duty protection mechanisms: native reverse polarity power isolation, output short-circuit barrier containment, and overcurrent overload safety containment. Machined with a standard cylindrical M8 x 1 mechanical threading outline and a compact total casing length of 46 mm, the device delivers a highly optimized sub-miniature physical footprint that tracks effortlessly under heavy plant vibration and shock fields. Sealed within a heavy-walled IP67 environmental enclosure, the transmitter remains impervious to dust infiltration and powerful water splashes, delivering absolute tracking consistency across a wide thermal facility boundary scaling from minus 25 to plus 70 degrees Celsius on a flexible industrial utility range of 10 to 30 VDC.
