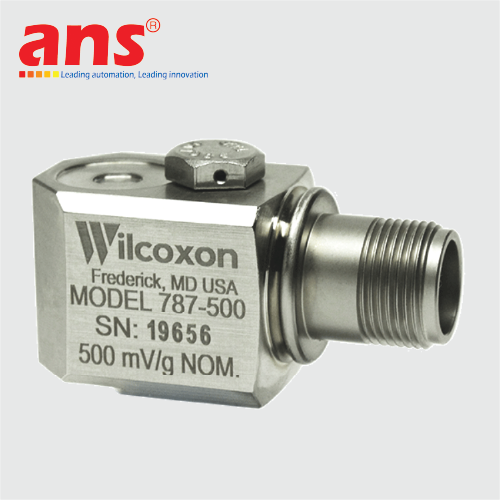

Low-frequency vibration transducer 787-500 Wilcoxon Vietnam
Price: Contact
Brand: Wilcoxon
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
Gọi lại cho tôi
0911472255Low-frequency vibration transducer 787-500 Wilcoxon Vietnam
Low frequency accelerometer, high sensitivity 500 mV/g, ±5% sensitivity tolerance, low profile with side exit MIL-C-5015-style connector, case isolated
Low frequency accelerometer features
- Clear signals at low vibration levels
- Extended low frequency response
- Improved signal to noise ratio versus other general purpose accelerometers
- High sensitivity
- Hazardous area certified models available
Specifications
- PARAMETER VALUE
- Sensor output Dynamic vibration (IEPE)
- Sensitivity 500 mV/g
- Sensitivity tolerance ±5 %
- Frequency response, ±3 dB 0.2 Hz - 10,000 Hz
- Mounting thread 1/4-28 captive hex head screw with 0.046" diameter safety wire hole
- Connector style MIL-C-5015, 2-pin
- Connector orientation Side exit
- Full-scale range 10 g peak
- Resonance frequency 22 kHz
- Temperature range -50°C to +120°C
- Weight 145 grams
