Overview & Technology:

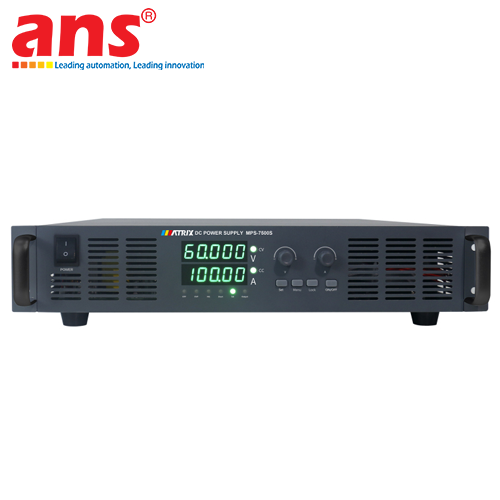

The MPS-7500S Series High Power Programmable DC Power Supply from MATRIX TECHNOLOGY INC. delivers superior DC power performance for rigorous industrial applications and high-level R&D testing. With up to 7.5kW rated power and wide output coverage from 0–30V up to 0–1500V, it integrates advanced PWM switching technology to ensure high conversion efficiency, ultra-stable output, and low ripple noise.

Key Features & Highlights:
• 5-Digit Dual LED Screen: Provides simultaneous, crystal-clear digital readouts of voltage and current for real-time operation monitoring.
• Remote Sense Compensation: Automatically compensates for line voltage drops over extended cable connections, guaranteeing exact voltage delivery at the load terminals.
• Fast Preset Function: Enables quick storage and recall of voltage and current parameters, accelerating test cycle times.
• Comprehensive Multi-Protection: Equipped with Over Voltage (OVP), Over Current (OCP), Over Temperature (OTP), Short-Circuit protection, and Key-Lock functionality to avoid unintended parameter shifts.
• Automated System Integration: Standard RS232 and RS485 communication interfaces enable seamless integration into automated test systems (ATE).

Durability & Heavy-Duty Operation:
Built with an industrial-grade rack-mount chassis and an intelligent temperature-controlled forced-air cooling system, the internal high-grade power components ensure continuous 24/7 operation under full-load conditions without performance degradation.

Practical Value for QA/QC:
The MPS-7500S Series empowers manufacturing lines and research teams to reduce validation cycles, safeguard sensitive electronic loads, simulate battery charge/discharge curves, and perform comprehensive burn-in evaluations with maximum precision.

• Manufacturer: MATRIX TECHNOLOGY INC.
• Product Category: High Power Programmable DC Power Supply
• Series: MPS-7500S Series
• Power Topology: High Frequency PWM Switching Technology
• Display: 5-Digit Dual LED Display (Simultaneous Voltage & Current)
• Voltage Compensation: Dedicated Remote Sense functionality
• Operation Features: Preset quick key setting, front panel Key Lock
• Built-in Protections: Over Voltage (OVP), Over Current (OCP), Over Temperature (OTP), Short-Circuit Protection
• Communication Ports: Industrial standard RS232, RS485 (Remote Programmable)

DETAILED SERIES SPECIFICATIONS BY MODEL:
• Model MPS-7500S-30-250: Output Voltage 0 – 30.000 V | Output Current 0 – 250.00 A | Power 7500 W
• Model MPS-7500S-60-125: Output Voltage 0 – 60.000 V | Output Current 0 – 125.00 A | Power 7500 W
• Model MPS-7500S-100-75: Output Voltage 0 – 100.00 V | Output Current 0 – 75.000 A | Power 7500 W
• Model MPS-7500S-150-50: Output Voltage 0 – 150.00 V | Output Current 0 – 50.000 A | Power 7500 W
• Model MPS-7500S-200-36: Output Voltage 0 – 200.00 V | Output Current 0 – 36.000 A | Power 7200 W
• Model MPS-7500S-300-25: Output Voltage 0 – 300.00 V | Output Current 0 – 25.000 A | Power 7500 W
• Model MPS-7500S-600-12: Output Voltage 0 – 600.00 V | Output Current 0 – 12.000 A | Power 7200 W
• Model MPS-7500S-1200-6: Output Voltage 0 – 1200.0 V | Output Current 0 – 6.0000 A | Power 7200 W
• Model MPS-7500S-1500-5: Output Voltage 0 – 1500.0 V | Output Current 0 – 5.0000 A | Power 7500 W

APPLICATIONS:
• Research & Development (R&D): Engineering laboratories and research institutes.
• Electronics Production & Testing: SMT production lines, PCB inspection, power modules.
• Battery & Energy Storage: Lithium batteries, BMS verification, EV charging, ESS units.
• EV & Motor Drives: DC electric motors, traction controllers, automotive electronics.
• Industrial Burn-in: Extended burn-in endurance tests, automated test benches.
