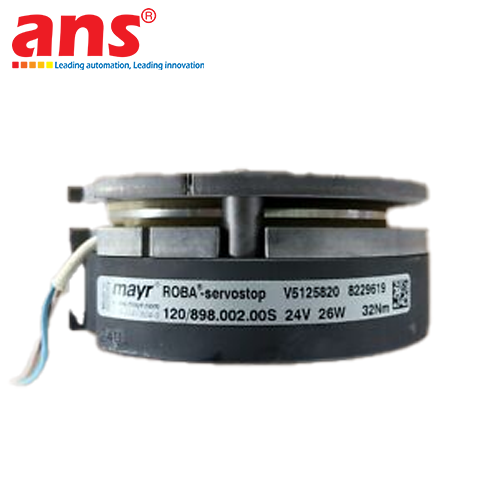

The Mayr ROBA®-servostop® Size 120 Type 898.002.00S Electromagnetic Safety Brake (Drawing Ref: Z7129838 / Part No.: 8229619) is a high-performance spring-applied holding brake engineered by Mayr (Germany) specifically for integration into servo motors and high-dynamic automation systems.

Operating on the fail-safe principle, the brake engages mechanically via spring force when electrical power is removed or interrupted, instantly clamping the motor shaft to hold loads securely in place and prevent vertical Z-axis drop. When 24VDC power is supplied, the electromagnetic coil counteracts the spring force, releasing the brake rotor and allowing unobstructed motor rotation. Providing a robust 32 Nm nominal braking torque within an exceptionally slim profile and low mass moment of inertia, the ROBA-servostop Size 120 delivers backlash-free torque transmission, fast engagement times, and maximum operational safety for robotics and CNC machine tools.

• Manufacturer: Mayr (Germany)
• Product Series: ROBA®-servostop® Series (Spring-Applied Safety Brakes)
• Drawing Reference (Drawing No.): Z7129838
• Part Number (Art No.): 8229619 (According to spec 8229619)
• Configuration Type: Type 898.002.00S
• Brake Size: Size 120
• Rated Operating Voltage: 24 VDC (± 10%)
• Nominal Braking Torque: 32 Nm
• Operating Principle: Spring-applied electromagnetic fail-safe brake
• Functions: Static holding brake and dynamic emergency stop brake
• Key Features: Backlash-free operational transmission, low mass moment of inertia, slim profile
• Response Time: Ultra-fast switching engagement and release times
• Insulation Class: Class F (155°C)
• Mounting Interface: Direct integration into servo motor housings
• Standards & Approvals: ISO 9001, CE, CSA, UL Listed, RoHS compliant
