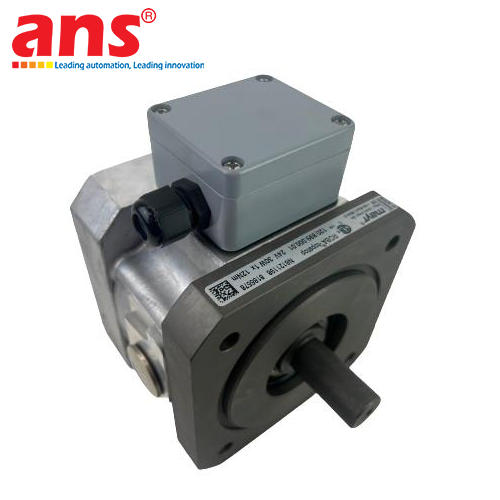

The ROBA-topstop Size 120 Type 899.000.01 Safety Brake is a specialized modular safety braking system engineered specifically for vertical axis applications (Vertical Z-axis safety brake) by Mayr Power Transmission (Germany) – the global authority in drive protection and safety clutch/brake technology.

1. Spring-Applied Fail-Safe Operating Principle:
The ROBA-topstop operates on the proven spring-applied principle. Under power-off conditions or in the event of an emergency power failure, pre-stressed internal helical springs instantaneously apply pressure to the friction lining, producing a reliable holding braking torque of 12 Nm. This mechanical locking action prevents accidental gravity drops or vertical load slippage, guaranteeing complete safety for both personnel and machine components. Applying 24 V DC to the magnetic coil overrides the spring force, releasing the brake rotor for smooth rotation.

2. Release Monitoring System with Proximity Switch:
A key feature of Type 899.000.01 is the factory-integrated industrial proximity switch operating in PNP NO (Normally Open) logic. This sensor delivers precise real-time feedback indicating complete brake release back to the PLC or servo drive controller before motor energization. This closed-loop monitoring prevents the motor from driving against an engaged brake, eliminating coil burnouts and premature friction pad wear.

3. Precision Flange Architecture & Modular Mounting:
Engineered with standard IEC/NEMA adapter flange dimensions, the unit installs directly between a servo motor and a gearbox (or machine frame) without requiring additional adaptation hardware:
- Output Shaft Dimensions (d x l): Ø24 x 50 mm, k6 tolerance fit.
- Input Bore Diameter (d1): Ø24 mm, F7 tolerance fit.
- Keyway Configuration: Output-sided keyway slot.
- Motor-Side Flange Housing: Centering diameter Z1 = 110 mm F8, Pitch circle diameter = 130 mm.
- Output-Side Bearing Flange: Centering diameter Z = 110 mm j6.

4. Key Industrial Applications:
An essential safety component for vertical Z-axes in CNC machining centers, industrial robotic arms, automated packaging lifts, vertical material handling equipment, and safety-critical vertical motion drives.

• Manufacturer: Mayr (Mayr Power Transmission)
• Product Series: ROBA-topstop Safety Brake
• Frame Size: Size 120
• Type Designation: 899.000.01
• Nominal Braking Torque: 12 Nm
• Magnetic Coil Voltage: 24 V DC
• Output Shaft Dimensions (d x l): Ø24 x 50 mm (k6 tolerance)
• Input Bore Diameter (d1): Ø24 mm (F7 tolerance)
• Keyway Configuration: Output-sided keyway slot
• Motor-Side Flange Housing:
  - Centering Diameter Z1: 110 mm (F8 tolerance)
  - Pitch Circle Diameter: 130 mm
• Output-Side Bearing Flange:
  - Centering Diameter Z: 110 mm (j6 tolerance)
• Release Monitoring System: Integrated proximity switch, PNP NO (Normally Open)
• Operating Principle: Spring-applied electromagnetic fail-safe brake
• Country of Origin: Germany
• Quality Standards: ISO 9001, CE compliant, European industrial safety standards
