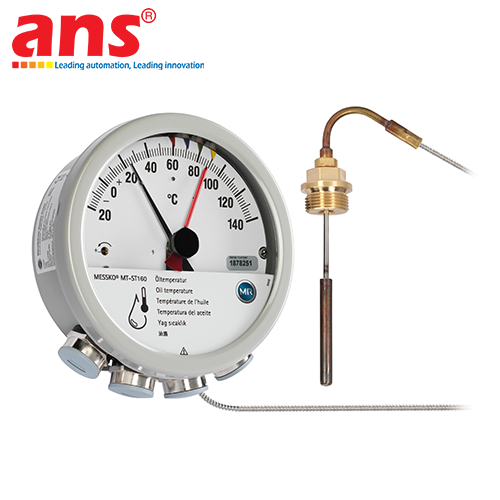

MESSKO 635-AT1BC1ZK06S2SB1100AA

(Maschinenfabrik Reinhausen Instrumentation Portfolio - Germany)

Product Overview: The MESSKO 635-AT1BC1ZK06S2SB1100AA heavy-duty industrial pointer thermometer is a high-performance process-grade fluid-expansion diagnostics instrument belonging to the world-renowned transformer safety Series 635 portfolio, engineered and manufactured 100 percent in Germany by MESSKO, a premium member company of the Maschinenfabrik Reinhausen (MR) group. Within advanced high-voltage electrical grid infrastructures, hyper-scale industrial distribution substations, and utility power reactors running massive continuous loads, executing constant real-time telemetry over transformer core and insulating oil thermal dynamics is a vital parameters constraint to prevent catastrophic structural breakdown or explosive insulation oil failure under peak load configurations.

The 635-AT1BC1ZK06S2SB1100AA variation addresses these stringent utility specifications directly, utilizing a fully mechanical hardened pressure-driven assembly that runs completely independently without drawing auxiliary electrical utility power, guaranteeing a remarkable field operational longevity exceeding 20 years without measurement drift.

Fluid Expansion and Capillary Pressure Driven Mechanical Topology: The underlying technological paradigm driving the MESSKO 635 variant leverages sophisticated Fluid Thermal Expansion physics routed through a sealed co-axial circuit. The primary hardware package comprises a ruggedized temperature probe machined from refined brass alloy, submerged straight into the transformer's top oil thermowell pocket. This sensing probe is pressure-locked to the remote display instrumentation head via an integrated high-flex capillary tube armored inside an industrial stainless steel or copper protective sleeve extension. The entire internal core of this closed loop is filled under pressure with a specialized industrial fluid medium exhibiting a highly stable linear thermal expansion coefficient.

As the transformer's top insulation oil layer or localized winding clusters reject heat, the fluid fluid encapsulated inside the brass bulb absorbs thermal energy and expands in volume, generating a linear proportional hydrostatic pressure wave vector that drives along the length of the capillary runner. Upon entering the display gauge housing enclosure, this fluid pressure directly expands an integrated heavy-walled Bourdon tube profile or mechanical bellows capsule matrix, driving a high-precision micro-gear train configuration. This mechanical movement smoothly rotates the high-visibility pointer hand across a linearly structured scale dial, reporting real-time physical temperature readings straight to plant operators without utilizing active solid-state electronic semiconductor chips.

Comprehensive Ordering Nomenclature Decoding: According to MESSKO's official ordering criteria, the extensive alpha-numeric model string 635-AT1BC1ZK06S2SB1100AA decodes into the following specific mechatronic configuration block:

635: Designates the premium Series 635 pointer thermometer family built specifically for power transformers.
AT1: Configures the hardware with Leuze's industrial standard geometric thermal probe bulb type.
BC1: Establishes a high-contrast analog indicator dial plate featuring an anti-glare backdrop layout.
ZK06: Integrates a heavy-duty microswitch contact bank, equipping the terminal block with up to 6 independent relay contact circuits.
S2: Specifies Leuze's internal electronic signal processing and signal transduction module option.
SB: Maps the specific structural style and mechanical thread geometry for field mounting.
1100: Indicates the factory calibrated boundary limit parameters for temperature or defines absolute capillary line lengths.
AA: Identifies the finalized factory certified build standard complying fully with global electrical utility compliance benchmarks.

🛠️ CRITICAL SAFETY BOUNDARIES & SUBSTATION TELEMETRY INTEGRATION:

High-Capacity Synchronized Microswitch Logic Array: The definitive mechatronic asset separating the ZK06 build iteration from standard commercial gauges focuses on its extensive array of independent mechanical microswitch contacts. These adjustable internal dry-contact switches empower floor crews to establish tailored thermal boundaries to command automated substation safety loops, including: turning on auxiliary forced-air cooling fan banks (Fan ON), cutting off fan groups (Fan OFF), routing pre-alert indicators to a remote central console (Alarm), and activating hard breaker Trip circuits to isolate the transformer when thermal bounds step past critical limits, avoiding winding burnout.
Advanced SCADA and Fieldbus Telemetry Adaptation: Beyond providing immediate on-site visual confirmation via the analog pointer hand, the instrument can be configured to translate mechanical readings into electrical signals. This layout supports concurrent data streaming to remote SCADA nodes or central PLC frameworks using standard analog 4 to 20 mA current loops or digital RS485 communication ports driving the industrial Modbus RTU protocol matrix smoothly.

Severe-Duty Material Hardening and Environmental Specifications: The pointer thermometer achieves exceptional measurement accuracy rated at Class 1 according to strict international DIN EN 13190 standards, constraining measuring uncertainty within a tight plus or minus 3 degrees Celsius margin over the entire operational span (with typical factory d dải configurations scaling from minus 20 up to plus 140 degrees Celsius, or 0 to plus 160 degrees Celsius depending on site processing parameters). The dense display instrument enclosure head is forged from heavy-walled structural carbon steel coated in an anti-corrosive, industrial-grade gray finish, providing a solid net hardware mass scaling from 6.5 kg to 7.5 kg to deflect plant vibration harmonics easily.

The front view window uses a premium multi-layer Laminated Safety Glass assembly integrated with an ultraviolet blocking film layer, keeping the underlying scale dial completely clear and preventing chemical aging or fogging under continuous sunlight exposure at open 110kV, 220kV, and 500kV switchyards.

Certified to international environmental ingress indices of IP55 (with upgraded structural sealing options extending to a dust-tight, spray-immune IP66 rating via high-durability internal silicone gaskets), the internal mechanical movements operate with absolute data tracking fidelity across a severe mechanical temperature envelope from minus 40 up to plus 80 degrees Celsius and handle severe atmospheric climate ambients scaling from minus 50 up to plus 80 degrees Celsius. The physical block dimensions track at a standard heavy-metal footprint measuring roughly 127 x 72 x 264 mm, requiring zero field calibration cycles over its runtime lifetime.

Engineering Metric	Technical Value and Standard (Plain-Text Compliant)
Manufacturer	MESSKO / Maschinenfabrik Reinhausen (Germany)
Product Series	Series 635 Heavy-Duty Transformer Pointer Thermometer Portfolio
Model Designation	635-AT1BC1ZK06S2SB1100AA
Measurement Paradigm	Purely non-electric pressure-driven fluid expansion physics (Pointer Thermometer)
Calibration Accuracy	Certified to international Class 1 standard boundaries under official DIN EN 13190 criteria
Measurement Variance Bounds	High-fidelity operational constraint tracking inside a plus or minus 3 degrees Celsius window
Nominal Measuring Span	Configurable from minus 20 to plus 140 degrees Celsius, or 0 to plus 160 degrees Celsius
Primary Process Function	Top oil temperature tracking (OTI profile) or winding hotspot logging (WTI profile)
Driving Utility Power	100 percent fully mechanical runtime operation requiring zero auxiliary electrical utility power
Integrated Relay Interface	Built-in industrial Microswitch contact bank sorting up to 6 independent dry contacts
Contact Control Logic	Field-programmable parameters governing Alarm metrics, Trip shutdowns, and Fan loop control
Data Output Transduction	Dual-track telemetry options supporting analog 4 to 20 mA or digital RS485 Modbus RTU links
Process Connection Interface	Refined Brass thermal sensing bulb paired with an armored high-flex Capillary Tube run
Display Housing Metallurgy	Forged entirely from heavy-walled industrial Carbon Steel with premium anti-corrosive finish
View Window Lens Gland	Multi-layer high-clarity Laminated Safety Glass embedded with full UV filtering sheets
Interface Sealing Gaskets	High-grade heat-stabilized industrial Silicone polymer compound
Enclosure Ingress Rating	Certified to international IP55 specifications (Field-upgradable to complete IP66 protection)
Mechanical System Envelope	Handles severe mechanical processing fields scaling from minus 40 up to plus 80 degrees Celsius
Climate Ambient Boundaries	Repels extreme open-air weather fields scaling from minus 50 up to plus 80 degrees Celsius
Physical Block Dimensions	Width 127 mm x Height 72 mm x Total Instrument Head Length 264 mm
Total Hardware Net Mass	Dense mechanical structural metal footprint weighing from 6.5 kg to 7.5 kg
Calculated Hardware Lifecycle	Severe-duty utility layout engineered to maintain stable runtimes past 20 years
Target Substation Infrastructure	Main power transformers, transmission links, and high-voltage 110kV, 220kV, 500kV substations
