Meter ALMAGEG-F-300-0-3-ST-1.0-65-1-AC-2-NX-NN-IF Smartmeasurement
Price: Contact
Brand: SMARTMEASUREMENT
Category: 4.0 Industry
Supplier: ansvietnam
Origin: USA
0911472255Meter ALMAGEG-F-300-0-3-ST-1.0-65-1-AC-2-NX-NN-IF Smartmeasurement
GENERAL

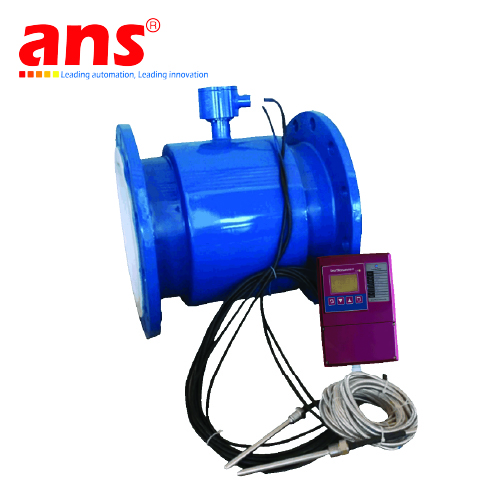

The ALMAG-EG is an in-line electromagnetic energy flowmeter ideal for conductive liquids. A wide variety of sizes are available to accommodate nominal pipe diameters ranging from ½" through 120". The ALMAGEG may be used in many applications that requires accurate thermal energy measurement in chilled water, hot water and condenser water systems. The ALMAGEG magmeter is avaialble in a stand-alone configuration and may also be used with various SmartMeasurement transmitter and display packages.
FEATURES
- Available with a wide range of liner and electrode materials
- Fluid velocity range of 0-32 feet/sec, with good results for low flow applications.
- Flange-type process connections are standard; ANSI, DIN, JIS style available.
- Ideal for energy management applications.
- Used in applications where ultrasonic energy flowmeters are rejected.
- FEP liner suitable in vacuum tube pressure applications.
- High accuracy ±0.5% of reading standard or ±0.2% of range optional.
- Availble with PT100 and PT1000 temperature sensors.
