Modular Periphery IMP-MAS2 LAN 610334402 Indel Vietnam
Price: Contact
Brand: INDEL AG
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Switzerland
Gọi lại cho tôi
0911472255Modular Periphery IMP-MAS2 LAN 610334402 Indel Vietnam

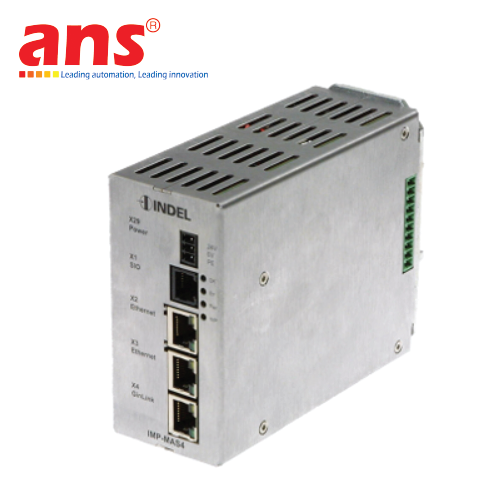

The IMP-MAS4 is a compact CPU board for use as a fieldbus master. The IMP-MAS4 can control additional I/O modules directly because of the integrated IMP-Bus (Indel Modular Peripherals) without the need of a fieldbus or fieldbus couplers. As the fieldbus master for the Indel GinLink, the IMP-MAS4 controls and coordinates all peripherals.
Interfaces
- 1 × GinLink
- 2 × Gigabit Ethernet
- 1 × InfoLink (Tx & Rx)
- 1 × SIO (RS232)
- 1 × IMP-Bus
CPU
- 1.2 GHz dual-core PowerPC
- Freescale QorIQ P2020/P2010
Cache
- L1: 32I/32D KByte per core
- L2: 512 KByte
Memory
- 1 GByte DDR3-800 (400 MHz), 64 Bit
- 0.5 MByte MRAM
- 8 MByte Flash
