0911472255MOXA ICF-1150-M-SC
Introduction:

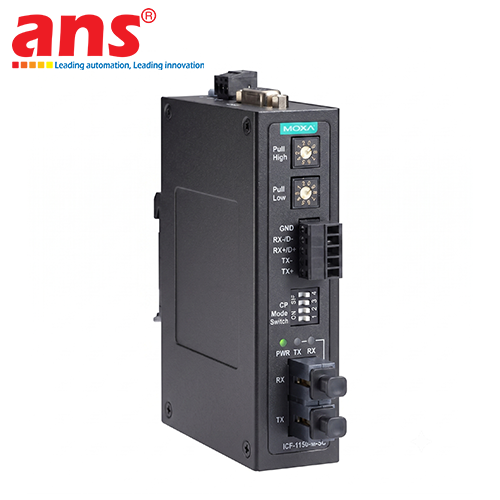

The MOXA ICF-1150-M-SC is a high-performance industrial serial-to-fiber converter, manufactured 100% in Taiwan. This robust device is designed to seamlessly convert standard serial signals (RS-232/422/485) into optical signals for transmission over Multi-mode fiber optic cables utilizing an SC connector. Transitioning to fiber optic transmission provides two absolute advantages in industrial environments: first, it significantly extends the communication distance up to 5 kilometers; second, it offers complete galvanic isolation, making the data transmission 100% immune to electromagnetic interference (EMI) and radio frequency interference (RFI). Built to strict industrial standards, the ICF-1150-M-SC is a crucial component for ensuring data integrity in critical SCADA systems, substation control panels, and heavy industrial automation networks.
Key Features & Technical Specifications:
-
Manufacturer: MOXA
-
Model Code: ICF-1150-M-SC
-
Device Type: Industrial RS-232/422/485 to Fiber Optic Converter
-
Serial Interface: Supports RS-232, RS-422, and RS-485 protocols with Auto baudrate detection.
-
Fiber Optic Interface: Utilizes Multi-mode fiber with an SC connector, allowing for a maximum transmission distance of up to 5 km.
-
Signal Protection: Provides optical isolation, offering total immunity to EMI/RFI and preventing ground loop interference from damaging connected equipment.
-
Industrial Durability: Enclosed in a rugged housing compatible with DIN-rail mounting, designed for continuous, reliable operation in harsh environments.
-
Country of Origin: 100% Made in Taiwan.
