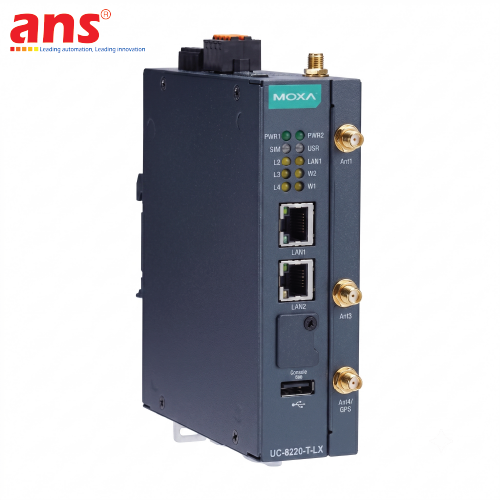

0911472255MOXA UC-8220-T-LX
Introduction:
The MOXA UC-8220-T-LX Industrial Computer is an advanced, industrial-grade edge computing platform, manufactured 100% in Taiwan. What sets this model apart is the inclusion of two mPCIe expansion slots, empowering users to easily customize and integrate highly reliable wireless communication modules, such as 4G/LTE, Wi-Fi, or GPS, for demanding remote monitoring applications. Powered by an energy-efficient Arm-based dual-core processor, this embedded computer comes pre-installed with a robust, industry-optimized Linux operating system. Encased in a DIN-rail mountable chassis and engineered to endure a wide operating temperature range, the UC-8220-T-LX provides the ultimate IIoT data acquisition, processing, and transmission solution for severe environments—from outdoor enclosures to intelligent transportation systems.
Key Features & Technical Specifications:
-
Manufacturer: MOXA
-
Model Code: UC-8220-T-LX
-
Device Type: Arm-based Industrial Computer / Edge Gateway
-
Processor (CPU): High-performance Arm-based Dual-core 1GHz CPU.
-
Memory (RAM): 2 GB.
-
Expansion Slots: Equipped with 2 mPCIe slots, enabling flexible wireless cellular/Wi-Fi upgrades.
-
Operating System: Pre-installed with an industrial-grade Linux OS.
-
Interfaces: Features 2 Ethernet ports and 2 Serial ports for seamless data collection from field devices and PLCs.
-
Mounting & Durability: Designed for easy DIN-rail installation with an extended operating temperature range capability.
-
Country of Origin: 100% Made in Taiwan.
