ONICON FT-3212-11511-1021-101

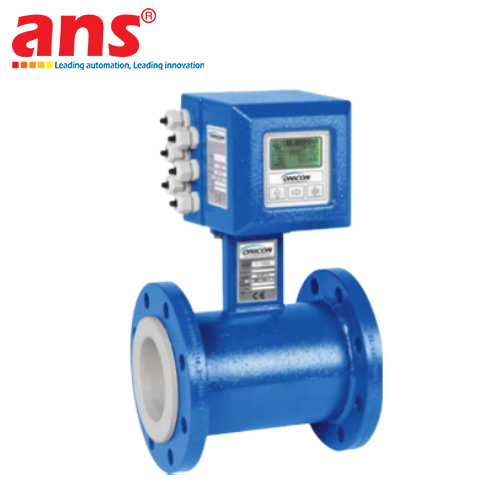

Introduction: The ONICON FT-3212-11511-1021-101 Inline Electromagnetic Flow Meter is an elite, state-of-the-art process instrumentation instrument belonging to the high-efficiency FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Utilizing Faraday's Law of Electromagnetic Induction to compute fluid velocities, this sophisticated device features a completely unobstructed flow tube profile. By eliminating internal mechanical moving parts (such as turbine blades or rotors), the FT-3212 completely bypasses pipeline pressure drops, prevents particulate clogging hazards, and delivers exceptional operational longevity under harsh industrial runtimes.

The structural and electronic layout of the FT-3212-11511-1021-101 variant provides an extreme system accuracy rating pinned at ±0.2% of reading, making it the absolute gold standard for strict energy consumption management. Forged with a premium Stainless Steel flow body coupled with advanced anti-corrosive engineering lining materials, it safely tolerates process media temperatures reaching up to 120°C alongside an intensive operating pressure envelope up to 16 bar. Built to interface natively with modern connected smart building frameworks and digital factory floors, the meter provides dual synchronized analog 4-20mA loops and high-fidelity Pulse outputs, ensuring zero-latency communication back to core Building Management Systems (BMS via Modbus/BACnet depending on selection) and industrial PLC/SCADA telemetry nodes.

⚠️ CRITICAL TECHNICAL OPERATIONAL PROMPT:

Fluid Media Prerequisites: Because this instrument relies entirely on electromagnetic fields, it functions strictly with conductive liquids. It is completely incompatible with demineralized/pure distilled water, non-conductive chemical oils, or petroleum-based fluids.
Hydraulic Alignment Profile: To guarantee the audited ±0.2% calibration accuracy, the host pipeline must maintain a continuous full-pipe state at the sensing location, backed by standard upstream and downstream straight piping runs to dissipate fluid swirls.

Key Features & Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-3000 Series Inline Electromagnetic Flow Meters Portfolio
Full Manufacturing Model Code: FT-3212-11511-1021-101
Measurement Principle: Electromagnetic (Mag-meter technology) – delivers a non-intrusive flow path ensuring absolute zero pressure drop overheads.
System Accuracy Standard: ±0.2% of active reading across standard flow velocities.
Signal Output Interface: Simultaneous integrated 4-20mA analog loop and discrete Pulse channel.
Network Integration Capabilities: Supports industrial fieldbus communication automation stacks (Modbus, BACnet protocols) contingent upon matching optional network module configurations.
Driving Utility Power: 24 VAC / VDC nominal industrial electrical input tolerance.
Physical Process Thresholds: Tolerates fluid media temperatures up to approximately 120°C; manages high-pressure lines up to a maximum of 16 bar.
Material Composition Hardening: Heavy-walled Stainless Steel body framework paired with high-durability, chemically resistant industrial lining materials.
Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized flanged or threaded mechanical layouts).
Country of Origin: 100% Made in the United States.
