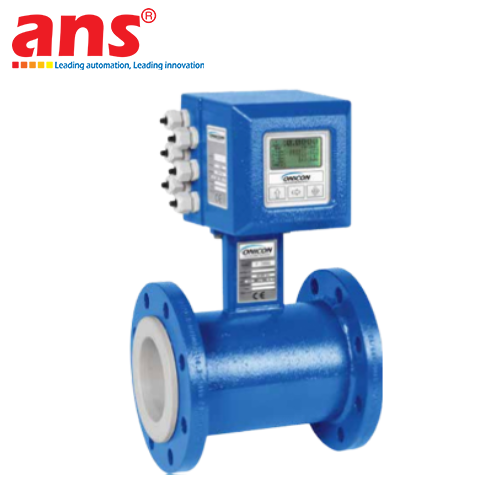

ONICON FT-3220-13111-2121-101

Introduction: The ONICON FT-3220-13111-2121-101 Inline Electromagnetic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the high-efficiency FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Utilizing Faraday's Law of Electromagnetic Induction to determine deterministic fluid velocities, this sophisticated meter features a completely unobstructed internal flow path that contains absolutely no moving mechanical parts. This non-intrusive layout completely bypasses pipeline pressure drop overheads, eliminates the risk of particulate clogging or debris accumulation, and ensures continuous plant operation with minimal long-term maintenance overheads.

The defining operational benefit of the FT-3220-13111-2121-101 variant lies in its specialized Integral Mount engineering architecture. The electronic transmitter unit is mounted flush directly on top of the flow sensing tube, profiling an integrated graphical display screen. This setup empowers field maintenance technicians to quickly read real-time instantaneous flow rates and accumulated totalizer metrics directly on the pipeline without installing secondary panel enclosures. Hardened for challenging field layouts, the system features an IP67-rated weather-proof enclosure providing complete barrier immunity against airborne dust infiltration and temporary external moisture submersion. Wet-calibrated and fully pre-configured at the factory, the instrument guarantees an elite system accuracy rating spanning between ±0.2% and ±0.4% of active reading. It comes equipped with synchronized telemetry paths featuring a linear analog 4-20mA loop, a discrete Digital Output, and 2 programmable Pulse Outputs for seamless, zero-latency integration into supervisory PLC/SCADA/BMS control nodes.

⚠️ CRITICAL TECHNICAL OPERATIONAL PROMPT:

Fluid Media Prerequisites: Because this instrument operates on electromagnetic induction principles, it requires conductive liquids to function. It is natively optimized for water and industrial glycol-water solutions, but remains completely incompatible with non-conductive media such as demineralized/distilled pure water, chemical oils, or petroleum fluids.
Hydraulic Alignment Profile: To preserve the factory-certified ±0.2% to ±0.4% calibration threshold, the meter must be positioned in a location that guarantees a continuous full-pipe state, supported by standard upstream and downstream straight pipe runs to dissipate fluid swirls or cavitation profiles.

Key Features & Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-3000 Series Inline Electromagnetic Flow Meters Portfolio
Full Manufacturing Model Code: FT-3220-13111-2121-101
Measurement Principle: Electromagnetic (Mag-meter technology) – delivers a non-intrusive flow path ensuring absolute zero pressure drop overheads.
System Accuracy Standard: Achieves an elite margin of ±0.2% to ±0.4% of active reading across standard flow velocities.
Calibration Verification Metric: Wet-calibrated and pre-configured at the factory to guarantee exceptional out-of-the-box data fidelity.
Transmitter Mounting Configuration: Integral Mount (transmitter block containing the graphical display assembly is securely coupled to the physical flow sensor body).
Signal Output Interface Array: * 1 x Analog 4-20mA loop (proportional to fluid velocity).
- 1 x Discrete Digital Output channel.
- 2 x High-fidelity programmable Pulse Outputs (optimized for totalization metrics).
Environmental Ingress Hardening: Rated to IP67 standards (completely dust-proof and safe against heavy water streams or temporary submersion).
Media Adaptability: Suitable for HVAC chilled water, hydronic heating lines, cooling tower condenser water, domestic water loops, and process-grade conductive glycol mixtures.
Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized flanged or threaded mechanical layouts).
Country of Origin: 100% Made in the United States.
