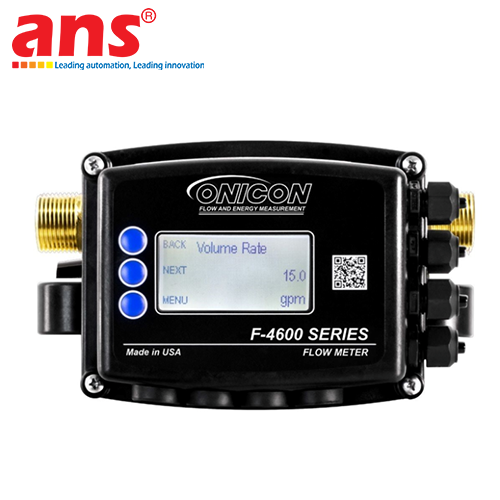

ONICON FT-4600-020-020-09 2 Inch (DN50) Inline Ultrasonic Flow Meter
Price: Contact
Brand: ONICON
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255ONICON FT-4600-020-020-09
Product Overview:
The ONICON FT-4600-020-020-09 Inline Ultrasonic Flow Meter is a premium high-tier industrial fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within modern mechanical infrastructures of heavy commercial complexes, high-capacity central HVAC arrays, hyper-scale Data Centers, and heavy-duty factory floors, executing flawless flow telemetry along 2-inch (DN50) pipe branches is foundational to system automation control and proactive energy cost auditing. The FT-4600-020-020-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving components like turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of industrial runtimes.
Transit-Time Ultrasonic Fluid Dynamics:
The underlying technological paradigm driving the FT-4600-020-020-09 variant leverages sophisticated Transit-Time Ultrasonic physics. The device positions high-precision acoustic transducers permanently across the internal 2-inch flow channel path. As the processed media (water or industrial water/glycol solutions) glides through the tube, the system shoots alternating high-frequency acoustic wave pulses upstream and downstream relative to the flow direction vector. The integrated digital telemetry engine analyzes the microscopic time-of-flight delta ($\Delta t$) between these sonic signals to resolve continuous process velocity with exceptional data resolution. Because the inner measuring aperture is completely open, smooth, and unobstructed, it introduces zero physical restriction to the fluid stream, ensuring optimal pipeline pressure retention, decreasing utility pumping workloads on central chiller pump grids, and preventing particulate clogging from scale, iron oxides, or loose particulate matter.
🛠️ FIELD INSTALLATION PROMPT & HARDWARE ARCHITECTURE:
-
Blind Transmitter Shell & Integrated Strain Relief Ingress Hardening: The specialized 020-020-09 hardware package features a blind configuration designed without a localized display screen. This profile is meticulously optimized for tight mechanical pipe chases, overhead racking, or background crawlspaces where a local screen is unnecessary. The internal calculation electronics are armored within a heavy-duty NEMA 4 housing that incorporates a premium Strain Relief Cord Grip mechanism. This robust assembly secures field wiring cables tightly against mechanical pulling stresses, preventing wire detachment or fluid weeping past the wire entrance ports in damp shop floor layouts.
-
2" (DN50) NPT Mechanical Threading Engagement: Engineered to tolerate maximum line pressures reaching up to 400 psi (~27.6 bar), mechanical installers deploying this 2-inch inline device must utilize high-tensile thread-sealing tape or automated sealing paste to lock down watertight plumbing joins under heavy hydro-shock pulses.
Dual International Calibration Compliance:
Every individual FT-4600-020-020-09 instrument undergoes extensive wet testing on dedicated laboratory flow loops before factory dispatch, shipping standard with both a serialized ISO 17025 Verification Metric and a NIST Traceable Calibration Certificate. This extreme level of legal and technical documentation transforms the meter into a reliable asset for strict facility energy auditing protocols, central chiller sub-metering optimization matrices, sub-metering BTU networks, and transparent internal utility tenant billing structures managed via centralized PLC, SCADA, or BMS architectures.
Hardened Hardware Topology & Electrical Specifications:
-
Extended Dynamic Range (500:1 Turndown Ratio): The system handles a massive 500:1 overall range capacity, coupled with an ultra-stable measurement repeatability of $\le \pm0.2\%$. This high-precision dynamic calibration enables the device to track marginal off-peak low-flow variables or minimal overnight line leaks, while seamlessly guaranteeing an uncompromised accuracy standard of $\pm1\%$ of active reading over a standard 25:1 operating window.
-
Synchronized Dual Telemetry Outputs: Features concurrent real-time data loops via a linear analog 4-20mA channel (optimized for active flow speed tracking) and a programmable discrete Pulse Output link (ideal for flow totalizer tracking). Driven seamlessly by a nominal 24 VAC/D utility infrastructure, the hardware operates within demanding thermal boundaries ranging from -18°C to 121°C ($0^\circ\text{F}$ to $250^\circ\text{F}$) with a non-moving mechanical profile that demands zero maintenance overhead.
-
Manufacturer: ONICON Incorporated (United States)
-
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
-
Full Manufacturing Model Designation: FT-4600-020-020-09
-
Measurement Principle: Non-intrusive Ultrasonic Differential Transit-Time physics.
-
Nominal Pipe Dimension: 2 Inch / DN50.
-
Mechanical Interface Footprint: Standard Industrial Female NPT threaded mechanical execution.
-
Transmitter Interface Profile: Blind execution containing no local display panel.
-
System Accuracy Standard: $\pm1\%$ of active reading across specified process flows (calculated over a standard 25:1 operating window).
-
Measurement Repeatability Metric: Extremely stable tracking consistency locked at $\le \pm0.2\%$.
-
Overall Dynamic Range (Turndown Ratio): Massive 500:1 operational capability ensuring reliable capturing of trace low-flow velocities.
-
Driving Utility Power: 24 VAC/DC nominal input tolerance, running across dual AC/DC electrical infrastructure (20–28 VAC/DC utility target).
-
Signal Output Interface Array: * 1 x Analog Channel: Linear 4-20mA loop (proportional to instantaneous flow speed).
-
1 x Discrete Channel: Programmable Pulse Output (optimized for flow totalizer counting).
-
-
Network Fieldbus Communications: Default variation comes naked with no additional BACnet or Modbus extension boards installed.
-
Process Temperature Boundaries: Handles fluid media thermal windows spanning -18°C to 121°C (0°F to 250°F).
-
Maximum Line Pressure Rating: Heavy-duty 400 psi (~27.6 bar) structural pressure envelope.
-
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
-
Enclosure Environmental Rating: Certified to NEMA 4 protective standards with an integrated Strain Relief Cord Grip lock.
-
Calibration Verification Metric: Fully backed by bundled ISO 17025 and NIST Traceable factory certificates.
-
Country of Origin: 100% Made in the United States.
