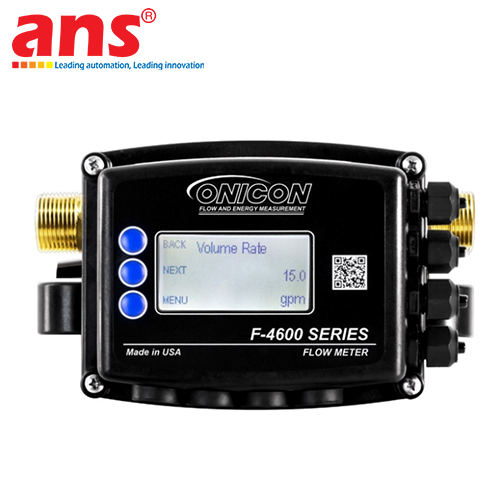

ONICON FT-4600-130-000-09

Product Overview: The ONICON FT-4600-130-000-09 Inline Ultrasonic Flow Meter is a premium high-tier industrial fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within modern mechanical infrastructures of heavy commercial complex complexes, centralized HVAC installations, hyper-scale Data Centers, and automated factory lines, executing flawless flow telemetry along 1¼-inch (DN32) pipe branches is foundational to active process control and proactive energy cost management. The FT-4600-130-000-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving components like turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of industrial runtimes.

Transit-Time Ultrasonic Fluid Dynamics: The underlying technological paradigm driving the FT-4600-130-000-09 variant leverages sophisticated Transit-Time Ultrasonic physics. The device positions high-precision acoustic transducers permanently across the internal 1¼-inch flow channel path. As the target media glides through the tube, the system shoots alternating high-frequency acoustic wave pulses upstream and downstream relative to the flow direction vector. The integrated digital telemetry engine analyzes the microscopic time-of-flight delta between these sonic signals to resolve continuous process velocity with exceptional data resolution. Because the inner measuring aperture is completely open, smooth, and unobstructed, it introduces zero physical restriction to the fluid stream, ensuring optimal pipeline pressure retention, decreasing utility pumping workloads on central chiller pump grids, and preventing particulate clogging from scale, iron oxides, or loose particulate matter.

🛠️ FIELD INSTALLATION PROMPT & HARDWARE ARCHITECTURE:

Space-Saving Blind Transmitter Shell Layout: The specialized 130-000-09 hardware package features a blind configuration designed without a localized display panel. This profile is meticulously optimized for tight mechanical pipe chases, crowded overhead racking, or baseline background crawlspaces where a local screen is unnecessary, maximizing electrical efficiency and equipment durability. The device transfers all tracking metrics straight to a remote PLC array or central BMS panel via heavy-duty signal wiring.
Isolated Pulse Output Integration: The defining technical asset of this hardware package is its native isolated Isolated Pulse Output topology. Functioning as a solid-state electronic switch completely isolated from main line voltages, it empowers field automation crews to seamlessly interface the meter with independent remote totalizer panels, legacy PLC processing units, or decentralized BMS data logging ports without risks of cross-voltage skew or intrusive loop noise interference originating from adjacent industrial motor drives.

Elite Metallurgy & International Calibration Compliance: The flow tube body is forged entirely from high-grade industrial lead-free brass alloy. This material selection secures absolute immunity against aggressive chemical breakdown from automated closed-loop chilled water additives and anti-freezing glycol agents, while simultaneously meeting strict global non-toxic mandates required for potable domestic water networks. Every individual instrument undergoes extensive wet testing on dedicated laboratory flow loops before factory dispatch, shipping standard with both a serialized ISO 17025 Verification Metric and a NIST Traceable Calibration Certificate for strict facility energy auditing protocols.

Hardened Hardware Topology & Electrical Specifications:

Extended Dynamic Range (500:1 Turndown Ratio): The system handles a massive 500:1 overall range capacity, coupled with an ultra-stable measurement repeatability of plus or minus 0.2%. This high-precision dynamic calibration enables the device to track marginal off-peak low-flow variables or minimal overnight line leaks, while seamlessly guaranteeing an uncompromised accuracy standard of plus or minus 1% of active reading over a standard 25:1 operating window.
Synchronized Dual Telemetry Outputs: Features concurrent real-time data loops via a linear analog 4-20mA channel (fully configurable to user flow ranges) and an isolated discrete Isolated Pulse Output link. Armed for severe facility environments, the entire calculating unit is armored within a rugged NEMA 4 industrial housing, providing an absolute barrier against dust and water jets. It safely operates under heavy line pressures up to 400 psi (approximately 27.6 bar) and handles demanding thermal lines ranging from -18 to 121 degrees Celsius (equivalent to 0 to 250 degrees Fahrenheit).

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Model Designation: FT-4600-130-000-09
Measurement Principle: Non-intrusive Ultrasonic Differential Transit-Time physics.
Nominal Pipe Dimension: 1¼ Inch / DN32.
Mechanical Interface Footprint: Standard Industrial inline mechanical execution.
Transmitter Interface Profile: Blind execution containing no local display panel.
System Accuracy Standard: Plus or minus 1% of active reading across specified process flows (calculated over a standard 25:1 operating window).
Measurement Repeatability Metric: Extremely stable tracking consistency, always plus or minus 0.2%.
Overall Dynamic Range (Turndown Ratio): Massive 500:1 operational capability ensuring reliable capturing of trace low-flow velocities.
Driving Utility Power: Runs on an automated industrial electrical infrastructure accepting a utility range input from 20 to 28 VAC/VDC.
Signal Output Interface Array: * 1 x Analog Channel: Configurable linear 4-20mA loop (proportional to fluid velocity).
- 1 x Discrete Channel: Isolated Pulse Output (optimized for flow totalizer tracking).
Process Temperature Boundaries: Handles fluid media thermal windows spanning -18 to 121 degrees Celsius (equivalent to 0 to 250 degrees Fahrenheit).
Maximum Line Pressure Rating: Heavy-duty 400 psi (approximately 27.6 bar) structural pressure envelope.
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
Enclosure Environmental Rating: Certified to NEMA 4 protective standards.
Calibration Verification Metric: Fully backed by bundled ISO 17025 and NIST Traceable factory certificates.
Country of Origin: 100% Made in the United States.
