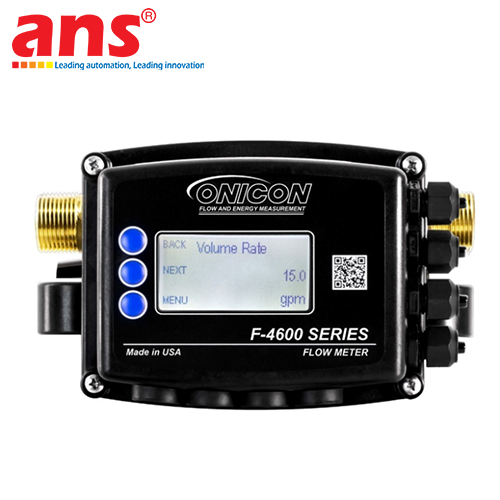

ONICON FT-4600-150-020-09

Product Overview: The ONICON FT-4600-150-020-09 Inline Ultrasonic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within modern mechanical infrastructures of commercial properties, hyper-scale Data Centers, centralized high-output HVAC installations, and intelligent energy management frameworks, executing rigorous, uncompromised flow telemetry along 1½-inch (DN40) pipe branches is foundational to precise automated automation loop control and proactive energy sub-metering. The FT-4600-150-020-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving components like turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of heavy-duty plant runtimes.

Differential Transit-Time Ultrasonic Fluid Dynamics: The underlying technological paradigm driving the FT-4600-150-020-09 variant leverages sophisticated Differential Transit-Time Ultrasonic physics. The device embeds high-precision acoustic transducers permanently across the internal 1½-inch flow channel path. As the processed media (water or industrial water/glycol solutions) glides through the tube, the system shoots alternating high-frequency acoustic wave pulses upstream and downstream relative to the flow direction vector. The integrated digital telemetry engine analyzes the microscopic time-of-flight delta between these sonic signals to resolve continuous process velocity with exceptional data resolution. Because the inner measuring aperture is completely open, smooth, and unobstructed, it introduces zero physical restriction to the fluid stream, ensuring optimal pipeline pressure retention, decreasing utility pumping workloads on central chiller grids, and preventing particulate clogging from scale, iron oxides, or loose particulate matter.

🛠️ CRITICAL FIELD CONTROL & HARDWARE ADVANTAGES:

High-Fidelity Scaled Pulse Output Topology: The defining technical asset of the FT-4600-150-020-09 hardware package is its native programmable Scaled Pulse Output. This digital channel is calibrated so that each dispatched pulse represents a deterministic volumetric quantity (such as 1 pulse per 10 liters). This mechanism empowers field PLC nodes and digital BMS totalizer blocks to accumulate totalized volume data loops straight from the instrument without running intensive translation processing code, reducing long-term calculation drift errors.
Blind Transmitter Shell Architecture: This specialized configuration functions without a local LCD panel, making it perfectly tailored for crowded overhead piping bays, high-elevation runs, or utility technical crawlspaces where visual checking is unnecessary. Eliminating the localized screen maximizes hardware durability and shields critical calculating internal circuits from external industrial physical shocks and humidity condensation.

Hardened Hardware Topology & Electrical Specifications: To protect delicate calculation microchips from harsh atmospheric conditions, the transmitter housing is fully armored to NEMA 4 ingress specifications, yielding a dust-tight barrier impervious to heavy water sprays. The device operates with exceptional efficiency running on a flexible industrial utility range of 20 to 28 VAC/DC. The physical structure effortlessly handles heavy line pressures up to an intensive limit of 400 psi (approximately 27.6 bar) and manages demanding process thermal flows ranging from minus 18 up to 121 degrees Celsius. The underlying metal flow tube is forged from premium Lead-Free Brass alloy, meeting global toxic-barrier compliance mandates for potable water circuits.

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Model Designation: FT-4600-150-020-09
Measurement Principle: Non-intrusive Differential Transit-Time Ultrasonic physics.
Nominal Pipe Dimension: 1½ Inch / DN40.
Mechanical Interface Footprint: Standard Industrial inline mechanical execution.
System Accuracy Standard: Plus or minus 1% of active reading across specified process flows (calculated over a standard 25:1 operating window).
Measurement Repeatability Metric: Extremely stable tracking consistency, always plus or minus 0.2%.
Overall Dynamic Range (Turndown Ratio): Massive 500:1 operational capability ensuring reliable capturing of trace low-flow velocities.
Driving Utility Power: 20–28 VAC/DC nominal input tolerance, running across dual AC/DC electrical infrastructure.
Signal Output Interface Array: * 1 x Analog Channel: Linear 4-20mA loop (proportional to flow speed).
- 1 x Discrete Channel: Scaled Pulse Output (optimized for clean totalizer integration).
Process Temperature Boundaries: Handles fluid media thermal windows spanning minus 18 to 121 degrees Celsius.
Maximum Line Pressure Rating: Heavy-duty 400 psi (approximately 27.6 bar) structural pressure envelope.
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
Enclosure Environmental Rating: Certified to NEMA 4 protective standards.
Calibration Verification Metric: Fully backed by bundled ISO 17025 and NIST Traceable factory certificates.
Country of Origin: 100% Made in the United States.
