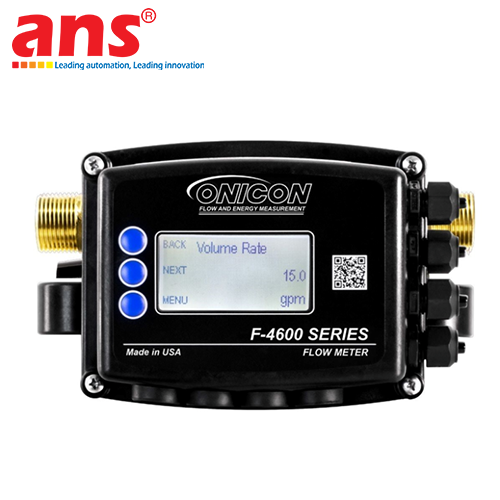

ONICON FT-4600-250-100-09

Product Overview: The ONICON FT-4600-250-100-09 Inline Ultrasonic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within large-scale mechanical infrastructures of commercial complexes, centralized high-output HVAC installations, hyper-scale Data Centers, central boiler plants, and intelligent building energy management frameworks, executing rigorous, uncompromised flow telemetry along 2.5-inch (DN65) main distribution lines is foundational to system automation control and proactive energy cost management. The FT-4600-250-100-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving components like turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of heavy-duty industrial runtimes.

Transit Time Ultrasonic Fluid Dynamics & Ultra-Low Pressure Drop: The underlying technological paradigm driving the FT-4600-250-100-09 variant leverages sophisticated Ultrasonic Transit Time physics. The device positions high-precision acoustic transducers permanently across the internal 2.5-inch flow channel path. As the processed media (water or industrial water/glycol solutions) glides through the tube, the system shoots alternating high-frequency acoustic wave pulses upstream and downstream relative to the flow direction vector. The integrated digital telemetry engine analyzes the microscopic time-of-flight delta between these sonic signals to resolve continuous process velocity with exceptional data resolution.

Crucially, because the inner measuring aperture is completely open, smooth, and unobstructed, it introduces an ideal hydraulic layout that yields an ultra-low pressure drop metric, rated at less than 1 psi at a standard flow velocity of 4 ft/s. This non-intrusive design preserves optimal pipeline pressure retention, drastically decreasing utility pumping workloads on central chiller grids or boiler circulation units, and preventing particulate clogging from scale, iron oxides, or loose particulate debris.

🛠️ CRITICAL FIELD CONTROL & HARDWARE ADVANTAGES:

High-Fidelity Solid State Pulse Output: Shifting away from legacy mechanical relay switches prone to mechanical degradation, bounce contact errors, and rust over time, this system utilizes high-grade electronic Solid State Pulse switching. This mechanism prevents electrical arc hazards, delivers near-infinite cycle runtime longevity, and repels ambient electromagnetic frequency (EMF) noise caused by neighboring high-power pump variable frequency drives (VFDs), ensuring continuous error-free data transfer to the PLC or master telemetry array.
Lead-Free Brass Metallurgy Hardening: The 2.5-inch flow tube body is forged entirely from high-grade industrial lead-free brass alloy. This material selection secures absolute immunity against aggressive chemical breakdown from automated closed-loop chilled water additives, while managing high-pressure mechanical lines up to an intensive limit of 400 psi (approximately 27.6 bar) and broad thermal lines ranging from minus 18 to 121 degrees Celsius (0 degrees Fahrenheit to 250 degrees Fahrenheit).

Dual International Calibration Compliance: Every individual FT-4600-250-100-09 instrument undergoes extensive wet testing on dedicated laboratory flow loops before factory dispatch, shipping standard with both a serialized ISO 17025 Verification Metric and a NIST Traceable Calibration Certificate. This extreme level of legal and technical documentation transforms the meter into a reliable asset for strict facility energy auditing protocols, central chiller sub-metering optimization matrices, sub-metering BTU networks, and transparent internal utility tenant billing structures managed via centralized PLC, SCADA, or BMS architectures.

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Model Designation: FT-4600-250-100-09
Measurement Principle: Non-intrusive Ultrasonic Differential Transit Time physics.
Nominal Pipe Dimension: 2.5 Inch / DN65.
Mechanical Interface Footprint: Standard Industrial inline mechanical execution.
System Accuracy Standard: Plus or minus 1% of active reading across specified process flows (calculated over standard operating window).
Measurement Repeatability Metric: Extremely stable tracking consistency, less than or equal to plus or minus 0.2%.
Overall Dynamic Range (Turndown Ratio): Massive 500:1 operational capability ensuring reliable capturing of trace low-flow velocities.
Hydraulic Pressure Drop Overhead: Extremely low, less than 1 psi at a velocity of 4 ft/s.
Driving Utility Power: 20 to 28 VAC/VDC nominal input tolerance, running across dual AC/DC electrical infrastructure.
Signal Output Interface Array: * 1 x Analog Channel: Linear 4-20mA loop (proportional to fluid velocity).
- 1 x Discrete Channel: Solid State Pulse Output (optimized for clean totalizer integration).
Process Temperature Boundaries: Handles fluid media thermal windows spanning minus 18 to 121 degrees Celsius (equivalent to 0 to 250 degrees Fahrenheit).
Maximum Line Pressure Rating: Heavy-duty 400 psi (approximately 27.6 bar) structural pressure envelope.
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
Enclosure Environmental Rating: Certified to NEMA 4 protective standards (dust-tight and water-spray immune specification).
Calibration Verification Metric: Fully backed by bundled ISO 17025 and NIST Traceable factory certificates.
Country of Origin: 100% Made in the United States.
