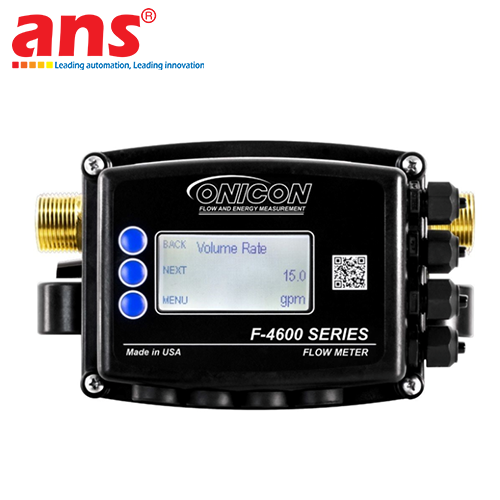

ONICON FT-4600-341-020-09 3/4 Inch High Flow Inline Ultrasonic Flow Meter

Price: Contact

Brand: ONICON

Category: Thiết bị đo lường & Kiểm tra

Supplier: AnhNghiSon

Origin: USA

Gọi lại cho tôi

Contact consultant

Hotline

support@ansgroup.asia

0911472255

ONICON FT-4600-341-020-09

Product Overview: The ONICON FT-4600-341-020-09 Inline Ultrasonic Flow Meter is a specialized process-grade high-capacity fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within advanced mechanical infrastructures of smart commercial systems, hyper-scale Data Center cooling topologies, high-output industrial automation loops, and heavy HVAC plants, executing rigorous, uncompromised flow telemetry along small-diameter 3/4-inch (DN20) pipe branches experiencing accelerated volumetric velocity and high dynamic thrust is a substantial engineering challenge.

The FT-4600-341-020-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving components like turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of industrial runtimes. Every individual unit is fully factory-configured and wet-calibrated on precision laboratory flow loops prior to dispatch, shipping in a plug-and-play state that allows immediate operational runtime right out of the box once mechanical plumbing couplings and gaskets are locked down.

High-Flow Volumetric Design Optimization: The defining engineering attribute of this specific hardware configuration centers on the specialized chamber model designation 341 (3/4" High Flow). ONICON splits its 3/4-inch (DN20) product matrix into two distinctive dynamic classifications: the 340 model family optimized for standard flow profiles, and the 341 model variant tailored for high-velocity streams. The 341 pipeline footprint features a structurally optimized internal hydro-path that accommodates massive flow accelerations without generating acoustic wave saturation or phase distortion.

This ensures supreme accuracy under intense dynamic pressure loads and extends mechanical lifecycle performance in high-demand hydronic industrial infrastructure loops. Crucially, the obstruction-free straight flow tube allows an ideal hydraulic layout that yields an ultra-low pressure drop metric, rated at less than 1 psi at a standard flow velocity of 4 ft/s, minimizing pumping load overheads.

🛠️ CRITICAL FIELD INSTALLATION & COUPLING TIGHTENING PROTOCOLS:

  • Mandatory Coupling Compression Standards: Because the FT-4600-341 model manages rapid velocity waves and high dynamic hydraulic friction, ONICON mandates a strict structural tightening metric during deployment to ensure zero leakage and preserve seal lifespan. Installation crews must rigorously enforce the following 3-step sequence:

    1. Verify that the gasket compression depth reaches a minimum threshold of 30%.

    2. Once the thread face makes direct physical contact with the sealing gasket, rotate the coupling thread an additional angle of exactly 120 degrees.

    3. This rotation matches a mechanical wrench tightening of precisely 1/3 of a full thread turn.

  • Strict Straight Pipe Run Metrics: To preserve the factory-certified accuracy threshold of plus or minus 1% of active reading, mechanical installers deploying this 3/4-inch inline device must strictly maintain specified minimum straight pipe runs upstream and downstream from adjacent pipe fittings to secure a completely laminar velocity profile:

    • Downstream of a Single Elbow: Requires 0D of straight pipeline run.

    • Downstream of an Expander / Reducer: Requires 0D of straight pipeline run.

    • Downstream of a Hydronic Heating/Cooling Coil loop: Requires a minimum of 3D straight pipe run.

    • Downstream of a mechanical Isolation Valve: Requires a minimum of 3D straight pipe run.

    • Downstream of an automated modulating Control Valve: Requires a minimum of 10D straight pipe run.

  • Field Orientation Alignment: The host pipeline must maintain a continuous full-pipe state at the sensing location, avoiding top pipe apexes where air bubbles assemble or the direct suction line of automated pumps. Crucially, during field plumbing, the sensor transducers block must be aligned horizontally to completely eliminate internal micro-bubble traps that weaken sonic signaling.

Hardened VFD-Shielded Strain Relief Electronics Housing Layout:

  • Differentiating Asset of the 020 Build Topology: The hallmark feature of the FT-4600-341-020-09 model variant is represented by the "2" character located inside the Display/Interface product matrix. Moving away from rigid threaded steel conduits or conduit adapter entry setups found in 000 iterations, this hardware features a rugged industrial NEMA 4 weatherproof housing integrated with an advanced Strain Relief Cord Grip compression gland. This watertight setup accepts flexible multi-conductor cabling, applying deep circumferential clamping force via an internal rubber grommet assembly when tightened. This setup eliminates wire terminal loosening, prevents mechanical cable pull-out stresses from heavy plant vibrations, and seals internal computation circuits entirely against damp factory air or splashing washdown water streams. This blind transmitter layout drops the localized LCD panel and fieldbus cards (No BACnet MS/TP, no Modbus RTU), utilizing an intuitive onboard LED diagnostic block instead.

  • Synchronized Dual Output Matrix: Features concurrent real-time data loops via an Analog channel and a discrete Pulse channel. The Analog Output is fully field-configurable, allowing automation crews to match supervisory PLC or SCADA loops using standard current or voltage loops including 4–20 mA, 0–10 VDC, or 0–5 VDC spans. The Pulse Output channel utilizes an isolated discrete loop topology, relaying high-fidelity tracking data straight to remote totalizer units or BMS logging panels while repelling dangerous electrical line noise or high-frequency EMI generated by neighboring motor drives or VFDs.

  • Pre-Supplied Cable Harness: The meter includes a pre-wired 10 ft (approximately 3 meters) cable harness sorting utility power lines, analog loops, and pulse circuits. For extended panel runs, the manufacturer recommends deploying premium 18 to 22 AWG shielded instrumentation cabling to prevent data degeneration from adjacent heavy EMI fields.

Engineering Metric Technical Value and Standard (Plain-Text Compliant)
Manufacturer ONICON Incorporated (United States)
Product Series FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Code FT-4600-341-020-09
Measurement Principle Non-intrusive Non-mechanical Differential Transit Time Ultrasonic physics
Dynamic Configuration Optimized High Capacity Dynamic Path (3/4" High Flow Build / Differentiated from 340 standard line)
Nominal Pipe Dimension 3/4 Inch / Metric Designation DN20 High Flow
Mechanical Interface Standard Industrial NPT Threaded connection execution
Transmitter Interface Enclosure Blind execution containing no local display panel; configured with a Strain Relief Cord Grip
Onboard Diagnostics Display Integrated LED status check block tracking electronic health metrics
System Accuracy Standard Plus or minus 1% of active reading across standard flow velocities (1% Reading)
Measurement Repeatability Extremely stable tracking consistency, less than or equal to plus or minus 0.2%
Overall Dynamic Range Spectacular Turndown Ratio locked at 500:1
Hydraulic Pressure Drop Overhead Extremely low, less than 1 psi at a velocity of 4 ft/s
Maximum Line Pressure Heavy-duty 400 psi structural pressure envelope (Approximately 27.6 bar)
Process Temperature Boundaries Handles fluid media thermal windows spanning 32 to 250 degrees Fahrenheit (0 to 121 degrees Celsius)
Ambient Temperature Envelope Operates flawlessly from minus 13 to 131 degrees Fahrenheit (-25 to 55 degrees Celsius)
Driving Utility Power 24 VAC/DC nominal input tolerance, running across 20 to 28 VAC/DC utility bounds
Maximum System Power Load Highly efficient electrical design consuming less than or equal to 5 VA maximum
Analog Output Channel 1 x Field-Configurable Analog Loop (Selectable for 4–20 mA / 0–10 VDC / 0–5 VDC)
Discrete Output Channel 1 x Isolated Pulse Output (Optimized for remote totalizer / PLC logging / BMS systems)
Fieldbus Communications Default variation comes naked with no onboard BACnet MS/TP or Modbus RTU cards
Flow Body Metallurgy Forged entirely from high-grade industrial Lead-Free Brass alloy
Transducer Structural Material Wetted ultrasonic transducers made of Polyphenylene Sulfide (PPS) reinforced with 40% glass fiber
Country of Origin 100% Made in the United States
