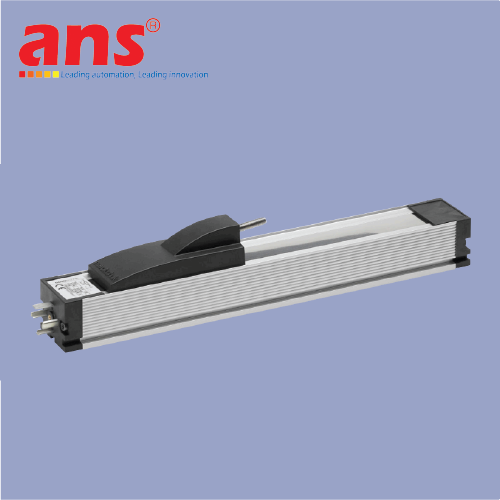

Potentiometer TLH-0175 Novotechnik Viet Nam
Price: Contact
Brand: Novotechnik
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Germany
0911472255Potentiometer TLH-0175 Novotechnik Viet Nam
Special features
- rodless design
- very high operating speed
- ball coupling avoids side loads
- long life >100 x 106 move-ments
- outstanding linearity - up to ±0.02%
- high resolution - better than 0.01 mm
- real-time output
- connector to DIN 43650 (hy-draulic connector)
- protection class IP 54 -mounted slider-side down
TLH transducers are designed for the direct, accurate mea-surement of displacement or length in control, regulation and measuring applications.
The rodless design utilizes a magnetically-restrained stain-less steel band to cover the opening through which the actuator operates. Thus, the actuator is driven from the side, along the unit length. This allows the transducer to be shorter, and permits stroke lengths up to 3000 mm.
A ball coupling limits parallel or angular drive forces from being transmitted to the sensor bearings.
The TLH series is designed for use with mounting clamps which simplifies installation and adjustment.
