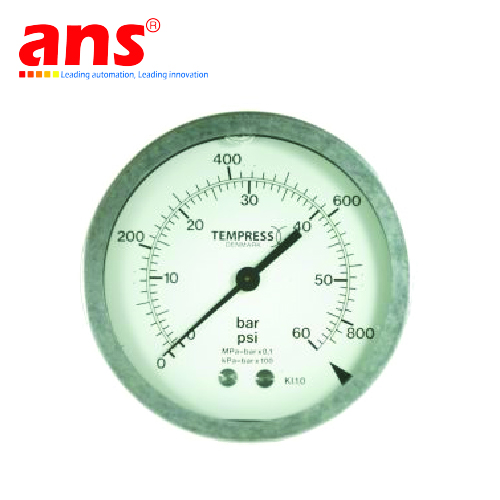

Pressure Gauge DN63 Type A10 Tempress Vietnam





Bourdon type pressure gauge

  • Nominal size DN63, DN80, DN100 & DN160
  • Connection: Bottom or rear
  • Case material: AISI304
  • Front ring: AISI316
  • Front glass: Hardened
  • Measuring system: Brass/bronze, steel or AISI316
  • Measuring range: -1 bar through 1600 bar
  • Minimum range span: 1 bar
  • Glycerine filled, silicone filled or dry
  • Mounting: Direct, surface or panel
  • More than 20 different connection threads in either brass & AISI 316
  • Good long term stability
  • Vibration proof
  • Scale in accordance with international standards
  • Produced according to EN837-1
  • DNV approved
