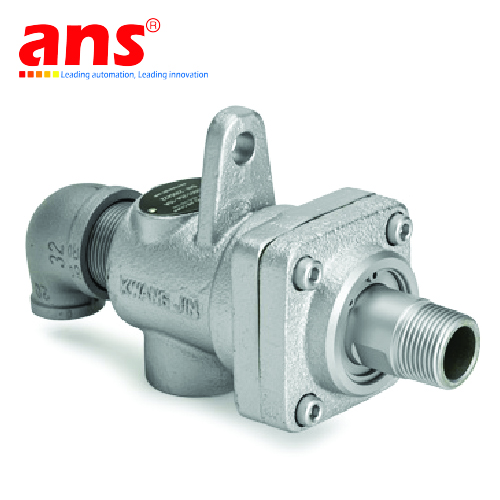

Rotary joint KR3001-50A-25A Kwangjin Vietnam
OPERATING CONDITION
- Size Range : 15A~80A (1/2"~3")
- Max. Pressure : 15kgf/cm2 (210PSI)
- Max. Rotation Speed : 15A~25A (1/2"~1") : 300RPM
- Max. Rotation Speed : 32A~80A (1¼"~3") : 150RPM : 300RPM
- Max. Temperature : 220°C (420°F)
- Media : 3000 - Steam / 3200 - Hot Oil
- * Avoid max. pressure at max. rpm operation
FEATURES
- (특징) Spherical Sealing
- Two Widely - Spaced Carbon Bearing
- Self - supported & Alignment rotating union
- Easily field repairable
- 3000 Series : For Steam media / Non - Lubrication type
