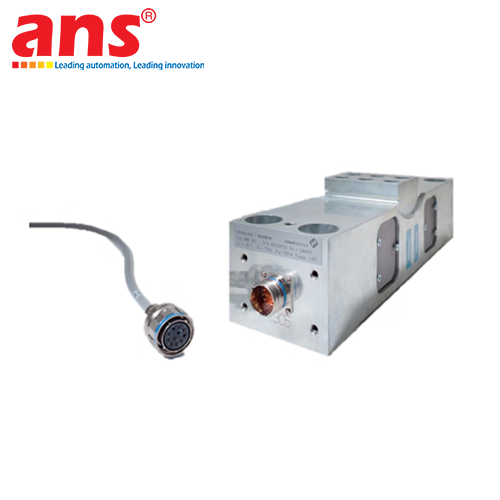

Schenck Process V090162.B01

(SENSiQ Heavy-Duty Weighing Portfolio)

Product Overview: The Schenck Process V090162.B01 SENSiQ 11 Pole industrial high-precision measuring instrumentation cable is a premium process-grade signal transmission component belonging to the world-renowned SENSiQ load cell ecosystem, engineered and manufactured 100 percent in Germany by Schenck Process. Within heavy-duty bulk handling plants, continuous steel mills, severe cement grinding bays, large-scale mining operations, and thermal power generation grids, automated materials totalization and massive silo storage logging loops must operate continuously amid structural plant shocks and high electromagnetic frequency (EMF/EMI) emission patterns.

The V090162.B01 configuration targets this requirement specifically, serving as a critical closed-loop data transport link that maps microscopic millivolt telemetry straight from raw weighing indicators to centralized automation controllers with zero amplitude decay or vector drift.

Millivolt Telemetry Physics and the Technical Assets of the 11-Pole Architecture: The underlying technological paradigm driving the Schenck V090162.B01 variant leverages advanced low-voltage signal preservation constraints over long wire paths. Industrial process load cells trạck physical thrust loading by shifting internal Wheatstone bridge resistance layers, outputting proportional low-amplitude telemetry scaled in millivolts per volt (mV/V). Because these data currents operate inside a microscopic threshold, line resistance drops or parasitic thermal shifts across long cable extensions degrade weighing totalization data.

To shield the circuit from transmission losses, the SENSiQ architecture deploys an exclusive 11-pole internal matrix layout paired with a ruggedized, mechanically locked terminal connector socket. The independent high-conductivity wiring conductors arrayed inside the cable core execute synchronized mechatronic loops concurrently:

Excitation Voltage Tracks (Excitation positive and Excitation negative): Routes a stabilized ultra-smooth DC reference voltage to power the transducer strain gauge bridge array.
Sense Feedback Regulation Loop (Sense positive and Sense negative): Constructs a continuous secondary ratio-metric monitor loop that samples real-time potential drops straight at the sensing node terminals, instructing the instrumentation processor to compute dynamic line drop compensation parameters.
Differential Signal Paths (Signal positive and Signal negative): Feeds high-fidelity low-noise raw mV/V load metrics straight to the input instrumentation analog-to-digital converter (ADC) blocks.
Dedicated Remote Calibration and Ground Shielding Lines: Delivers real-time diagnostic triggering access for electronic remote calibration routines while establishing a secure static ground plane baseline.

Hardened Braided Shields and Mechanical Locking Gland Armor: The outer sheath layer of the V090162.B01 harness is molded from a high-density industrial polymer compound, featuring a structural line length extending exactly 15 meters. Armored beneath this tough exterior insulation sits a heavy circumferential shielding layer made of tightly interwoven metal mesh strands (Shield layer). This hardened structural mesh builds an electrostatic Faraday shield that completely repels high-frequency electrical hash and harmonic noise emitted from high-power variable frequency motor drives (VFDs), main conveyor motor terminals, or nearby sub-station busbars, preserving Instructive data clarity.

The 11-pole junction end incorporates a factory-integrated connector block flanked by a heavy-duty threaded metallic collar coupling (Connector socket). This mechanical layout ensures that when tightened, it exerts deep sealing compression to block industrial dust infiltration and ambient moisture seepage. Crucially, the threaded lock completely avoids connector loose-pin disconnection faults or terminal contact jitter triggered by continuous facility vibration forces from massive hopper vibrators or sorting screening drives.

🛠️ FIELD SCALING INFRASTRUCTURE & MECHANICAL ENGAGEMENT RULES:

Broad Compatibility Matrix Integration: The V090162.B01 measuring cable is officially authorized by Schenck Process for structural connection across two premier load cell classifications:
1. SENSiQ Weighbeam (WB Model Series): Engineered to manage massive structural load limits including WB 40 metric tons, WB 50 t, WB 100 t, WB 150 t, WB 200 t, and vương to extreme thresholds rated at WB 600 metric tons.
2. SENSiQ Weighdisc (WD Model Series): Optimized for space-saving flat geometries tracking across WD 15 t, WD 25 t, WD 50 t, WD 100 t, and WD 200 metric ton envelopes.
Conduit Field Routing Guidelines: During 현 trường cable installation along conveyor bridges or silo structural steel paths, mechanical installers must route this instrumentation telemetry harness entirely separate from adjacent high-voltage AC power tracks inside separate layout conduits to block induced electromagnetic noise fields.

Engineering Metric	Technical Value and Standard (Plain-Text Compliant)
Manufacturer	Schenck Process (Germany)
Product Series	SENSiQ Industrial Loadcell Instrumentation Portfolio
Model Designation	V090162.B01
Hardware Core Type	High-fidelity industrial measuring telemetry cable run (Measuring Cable)
Electrical Interface Footprint	Standardized quick-disconnect 11-pin terminal block (11 Pole Plug topology)
Mechanical Locking Gland	Integrated heavy-duty threaded Metal Connector Socket shielding device
Standard Cable Run Length	Exactly 15 meters length factory-calibrated mold link
Telemetry Signal Handling	Differential low-noise mV/V metrics, Excitation voltage tracks, and Sense loops
Shielding Armor Matrix	High-density interwoven metallic wire mesh building full electrostatic isolation
EMI / RFI Suppression Factor	Total isolation repelling variable frequency drive harmonic electrical hash
Outer Insulation Compound	Premium high-density industrial high-flex polymer jacket resin material
Enclosure Environmental Ingress	Sealed dust-tight barrier impervious to ambient plant facility moisture spray
Mechanical Trauma Deflection	High tensile load absorption with absolute anti-vibration joint resistance
Process Temperature Boundaries	Operates flawlessly with absolute stability across standard industrial plant ranges
Weighbeam Matrix Matching	Integrates with SENSiQ WB variants from 40 metric tons up to 600 metric tons limits
Weighdisc Matrix Matching	Integrates with SENSiQ WD variants from 15 metric tons up to 200 metric tons limits
Target Plant Infrastructure	Belt scales, loss-in-weight feeders, silo load banks, heavy rail track wagon scales
Total Hardware Net Mass	Industrial wire footprint tracking at roughly 20 grams per linear meter run
Country of Origin	100 percent Manufactured, assembled, and laboratory tested in Germany
