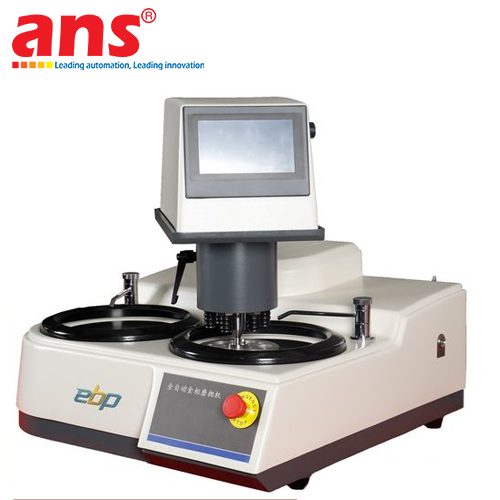

The Metallographic Grinding & Polishing Machine, engineered, technically optimized, and manufactured by the internationally acclaimed brand TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD, stands as an advanced material preparation workstation that holds a foundational and decisive role within physical metallurgy workflows. In the sequence of metallographic specimen processing (Sectioning – Mounting – Grinding – Polishing – Chemical Etching), mechanical grinding and polishing represent the most time-intensive stages, requiring unmatched stability from the equipment. The primary objective is to systematically eliminate deep mechanical scratches left by cutting procedures, while simultaneously neutralizing the distorted crystalline surface layers induced by friction, ultimately achieving a flawlessly planar, mirror-like finish with absolute optical reflectivity. If the working platen exhibits any structural imbalance, spindle runout, or inadequate thermal regulation, the material surface will instantly develop new defects, localized work hardening, or edge rounding errors. These flaws severely distort subsequent grain structure analysis under optical microscopes and microhardness validations. The premium grinding and polishing station from TAIZHOU EBPU provides an ideal technological answer, ensuring micron-level planarity and pristine surface integrity for all material specimens.

At its dynamic core, the instrument features a heavy-duty AC Variable Frequency Inverter Motor paired with an ultra-quiet direct-drive mechanism. This advanced layout allows laboratory technicians to smoothly regulate the platen velocity via a digital stepless control interface across a wide spectrum—from ultra-low rotational velocities optimized for fine polishing routines (around 50 rpm) up to high-velocity spans for rapid material removal (reaching 600 to 1000 rpm). The workstation utilizes an intelligent Dual-Wheel Design, engineered to execute independent or synchronized operational parameters. Each platen is machined from premium high-grade alloy metals designed to resist thermal expansion and coated with a defensive matrix against aggressive chemical oxidation. This dual-wheel layout enables engineers to execute separate preparation phases simultaneously—for instance, performing fine abrasive grinding using SiC paper on the left platen while conducting fine diamond suspension polishing on the right—drastically increasing laboratory throughput and eliminating the unproductive downtime associated with single-platen wheel changeovers.

Extensive attention has been dedicated by TAIZHOU EBPU to structural thermal regulation and long-term industrial durability. The outer monolithic chassis is molded from premium heavy-duty fiberglass-reinforced composite material or sealed with an anti-corrosion polymer coat, successfully enduring sustained exposure to water, abrasive particles, and corrosive etching solvents. The workstation integrates an advanced high-flow multi-point water cooling network with adjustable spray nozzles that target the direct contact zone, immediately dissipating frictional heat accumulation to safeguard sensitive microstructures from phase transitions or thermal degradation. The surrounding splash ring and drainage basin feature an optimized steep-sloped topography paired with a large-diameter drainage pipe, preventing fluid stagnation and metal sediment buildup within the chamber. Depending on specific client requirements, the machine supports comfortable manual operation or can be upgraded with a program-controlled pneumatic Automatic Polishing Head. This module automates force application, velocity matching, and operational dwell cycles, maximizing laboratory reproducibility. This preparation station is highly regarded across international independent test centers, iron and steel foundries, automotive QA/QC facilities, semiconductor laboratories, and elite material science research universities.

The Metallographic Grinding & Polishing Machine, engineered, technically optimized, and manufactured by the internationally acclaimed brand TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD, stands as an advanced material preparation workstation that holds a foundational and decisive role within physical metallurgy workflows. In the sequence of metallographic specimen processing (Sectioning – Mounting – Grinding – Polishing – Chemical Etching), mechanical grinding and polishing represent the most time-intensive stages, requiring unmatched stability from the equipment. The primary objective is to systematically eliminate deep mechanical scratches left by cutting procedures, while simultaneously neutralizing the distorted crystalline surface layers induced by friction, ultimately achieving a flawlessly planar, mirror-like finish with absolute optical reflectivity. If the working platen exhibits any structural imbalance, spindle runout, or inadequate thermal regulation, the material surface will instantly develop new defects, localized work hardening, or edge rounding errors. These flaws severely distort subsequent grain structure analysis under optical microscopes and microhardness validations. The premium grinding and polishing station from TAIZHOU EBPU provides an ideal technological answer, ensuring micron-level planarity and pristine surface integrity for all material specimens.

At its dynamic core, the instrument features a heavy-duty AC Variable Frequency Inverter Motor paired with an ultra-quiet direct-drive mechanism. This advanced layout allows laboratory technicians to smoothly regulate the platen velocity via a digital stepless control interface across a wide spectrum—from ultra-low rotational velocities optimized for fine polishing routines (around 50 rpm) up to high-velocity spans for rapid material removal (reaching 600 to 1000 rpm). The workstation utilizes an intelligent Dual-Wheel Design, engineered to execute independent or synchronized operational parameters. Each platen is machined from premium high-grade alloy metals designed to resist thermal expansion and coated with a defensive matrix against aggressive chemical oxidation. This dual-wheel layout enables engineers to execute separate preparation phases simultaneously—for instance, performing fine abrasive grinding using SiC paper on the left platen while conducting fine diamond suspension polishing on the right—drastically increasing laboratory throughput and eliminating the unproductive downtime associated with single-platen wheel changeovers.

Extensive attention has been dedicated by TAIZHOU EBPU to structural thermal regulation and long-term industrial durability. The outer monolithic chassis is molded from premium heavy-duty fiberglass-reinforced composite material or sealed with an anti-corrosion polymer coat, successfully enduring sustained exposure to water, abrasive particles, and corrosive etching solvents. The workstation integrates an advanced high-flow multi-point water cooling network with adjustable spray nozzles that target the direct contact zone, immediately dissipating frictional heat accumulation to safeguard sensitive microstructures from phase transitions or thermal degradation. The surrounding splash ring and drainage basin feature an optimized steep-sloped topography paired with a large-diameter drainage pipe, preventing fluid stagnation and metal sediment buildup within the chamber. Depending on specific client requirements, the machine supports comfortable manual operation or can be upgraded with a program-controlled pneumatic Automatic Polishing Head. This module automates force application, velocity matching, and operational dwell cycles, maximizing laboratory reproducibility. This preparation station is highly regarded across international independent test centers, iron and steel foundries, automotive QA/QC facilities, semiconductor laboratories, and elite material science research universities.
