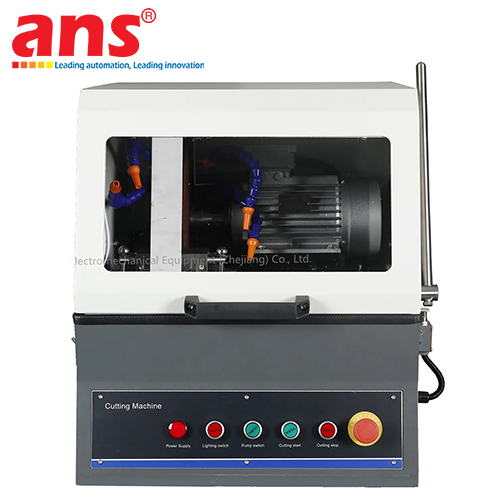

The Metallographic Sample Cutting Machine (Sample Cutting Machine / Specimen Sectioning Machine), engineered, designed, and manufactured by the globally acclaimed brand TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD, stands as the paramount initial workstation within the metallographic sample preparation workflow for state-of-the-art material science cleanrooms and advanced QA/QC laboratories. Within the realm of physical metallurgy and microstructure crystal phase analysis (Metallography), the precision of microscopic evaluations and imaging depends entirely on the structural integrity achieved during the very first sectioning stage. Conventional mechanical sawing or non-specialized cutting processes inevitably generate extreme localized thermal energy, which instantly modifies crystal orientations, indices surface hardening, burns the specimen, or induces structural artificial micro-cracks—resulting in severe misinterpretations of the material's actual characteristics. The dedicated Metallographic Cutter developed by TAIZHOU EBPU provides an elite technological answer, utilizing a specialized wet abrasive methodology to deliver perfectly planar cuts while maintaining the raw, unadulterated microstructure of the specimen.

The foundational structural architecture of the instrument is established upon a heavy-duty, single-piece cast iron bed matrix that features outstanding mechanical rigidity, successfully dampening all high-frequency dynamic vibrations generated during rapid cutting sequences. The machine incorporates a heavy-duty industrial spindle motor, supplying sustained high-torque translation even when executing sectioning routines across exceptionally hard structural materials such as surface-hardened tool steels, complex titanium matrix alloys, or tungsten carbide inserts. The engineering core defining the superiority of this series is its advanced, multi-point Recirculating Cooling System. This module routes high-pressure cooling jets directly onto the cutting matrix where the abrasive wheel meets the specimen, instantly absorbing and neutralizing thermal accumulation. The spacious, rust-resistant cutting enclosure integrated with a heavy-gauge stainless steel T-Slot Work Table allows laboratory technicians to deploy a wide matrix of specialized quick-action clamping vises, ensuring stable, rigid anchoring of geometrically complex workpieces, elongated rods, or structural component segments.

Operator safety architecture and sophisticated control ergonomics remain the highest priorities within TAIZHOU EBPU’s design philosophy. The internal sectioning chamber is entirely enclosed by a robust safety canopy featuring a large, high-transparency tempered safety viewing window, paired with an internal explosion-proof, low-voltage LED matrix, allowing engineers to visually monitor cutting dynamics safely from the exterior. The workstation incorporates an intelligent magnetic safety Interlock Switch system: the spindle drive and the high-capacity coolant pump instantly shut down if the canopy enclosure is breached during active cycles, completely eliminating catastrophic structural risks from abrasive wheel fragmentation or fluid spray. Depending on specific model configurations, the instrument supports linear feed propagation via an ergonomic manual lever assembly or a precise program-controlled motorized stepper-driven Automatic Feed system. This metallographic sectioning station is highly sought after by corporate material cleanrooms within automotive manufacturing plants, heavy aerospace foundries, naval shipbuilding yards, heavy structural forging lines, and elite national material science research centers.

• Manufacturer: TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD
• Product Line: High-Performance Metallographic Specimen Sectioning System (Sample Cutting Machine)
• Cutting Methodology: High-efficiency Wet Abrasive Sectioning for microstructure preservation
• Feeding Architecture (Feed Mechanism): Ergonomic manual hand-lever feed or program-controlled motorized Automatic Feed via precision stepper motor (Model dependent)
• Compatible Abrasive Wheel Matrices (Cutting Wheel Dimensions): Ø 250 x 2 x Ø 32 mm, Ø 300 x 2 x Ø 32 mm, or Ø 350 x 2.5 x Ø 32 mm (Configured according to specific chassis architecture)
• Supported Cutting Blade Types: Premium Al2O3 abrasive wheels (for ferrous metals), SiC abrasive wheels (for cast iron and non-ferrous alloys), and specialized Diamond Segmented blades (for ceramics, minerals, and ultra-hard materials)
• Maximum Geometric Sectioning Capacity (Max Cutting Capacity): Solid round bar diameters up to Ø 80 mm, Ø 100 mm, or Ø 115 mm available envelopes (Chassis and model configuration dependent)
• Spindle Drive Motor Output (Main Motor Power): Heavy-duty industrial motor rated at 2.2 kW, 3.0 kW, or 4.0 kW delivering supreme continuous torque
• Spindle Rotational Velocity (Spindle Rotational Speed): Fixed at a high-efficiency 2800 rpm or optionally equipped with a VFD module for stepless variable velocity regulation spanning 500 to 4000 rpm (Technical upgrade option)
• Advanced Coolant Recovery Array (Cooling System): Integrated high-flow industrial submersible coolant pump coupled with an external independent stainless steel recirculating tank with a fluid capacity of 30L – 50L and multi-stage sediment separation filters
• Work Table Design Architecture: Manufactured from premium heavy-duty corrosion-resistant stainless steel incorporating standardized T-Slots for modular vise installation
• Material Anchoring Matrix (Clamping Fixtures): Heavy-duty quick-clamping Vise or dual-jaw mechanical clamping assemblies included, engineered to resist chemical coolant oxidation
• Co-integrated Hardware Protection: Electromagnetic canopy safety Interlock Switch, independent emergency manual mushroom stop button, and automated thermal overload circuit breakers for motor winding protection
• Chamber Illumination Matrix: Low-voltage internal industrial LED lighting system featuring comprehensive moisture-proof and explosion-proof execution
• Quality Standards and Compliance: CE Certified, strictly conforming to global laboratory machinery safety frameworks
• Electrical Grid Configuration: AC 380V (Three-Phase / 3-Phase), 50/60Hz industrial plant standard (Select compact benchtop variants can be engineered for AC 220V Single-Phase electrical architecture upon custom request)
