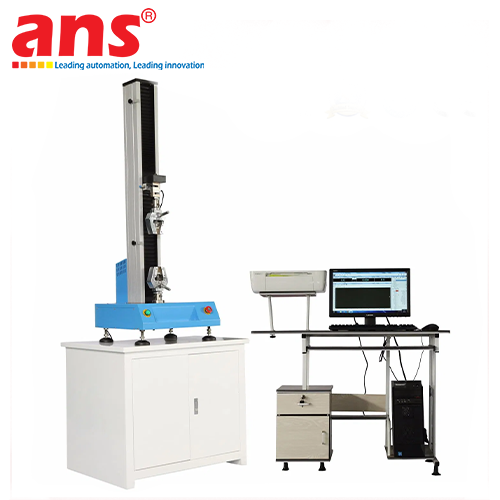

TAIZHOU EBPU Single Frame Universal Testing Machine
Price: Contact
Brand: TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: China
0911472255The Single Frame Universal Testing Machine (Single Frame UTM / Single Column Universal Testing Machine), engineered and manufactured by the prestigious brand TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD, stands as an advanced mechanical characterization workstation specifically optimized for executing highly precise tensile, compression, bending, peeling, and tearing evaluations under low-to-medium force thresholds (typically below 5kN). Driven by rapid global innovations in advanced engineered polymers, thin-film structural barriers, micro-electronic assemblies, and biodegradable packaging materials, the precise assessment of mechanical behaviors is paramount to guarantee manufacturing integrity. The Single Column UTM architecture developed by TAIZHOU EBPU offers an ideal testing layout, blending a space-saving compact laboratory footprint with internationally benchmarked measurement accuracy, vastly outperforming archaic analogue or manual mechanical verification methods.
The core structural architecture of the system is engineered around a highly rigid single guidance column assembly integrated with a premium zero-backlash Ball Screw configuration and a closed-loop AC Servo motor drive platform. This layout empowers the crosshead to execute exceptionally smooth linear displacement profiles, entirely eradicating mechanical shudder or velocity oscillations even when performing testing routines at ultra-low speeds (down to 0.001 mm/min). The system incorporates an intelligent, high-resolution electronic Load Cell featuring native linear self-calibration and identification. This setup maintains comprehensive force measurement errors strictly below ±0.5% of the read value, fully satisfying the most demanding international metrological calibration directives such as ASTM E4 and ISO 7500-1. The open single-column framework grants operators unrestricted 360-degree accessibility to the testing workspace, significantly simplifying the installation and anchoring of fragile specimens like films, fibers, or complex microscopic electronic joints.
The full technological potential of the TAIZHOU EBPU Single Frame UTM is unlocked through its proprietary program interface and comprehensive data analysis software suite operating on a synchronized PC. The platform supports high-frequency real-time data acquisition, automatically graphing and illustrating essential material behavior curves including Load-Extension, Load-Time, and Stress-Strain profiles. Industrial engineers can seamlessly program automated verification parameters matching standardized international reference specifications (such as ASTM D882 for plastic sheeting, ASTM D3574 for flexible cellular polymers, ISO 527, etc.). Immediately following specimen yield or fracture, the analytical software mathematically computes a complete matrix of performance metrics: Ultimate Tensile Strength, Flexural Strength, Yield Strength, Percentage Elongation at Break, Young's Modulus, and Average Peel Force. Data packages are managed centrally in a secure internal database system, facilitating instant statistical modeling and automated professional engineering report output in PDF, Excel, or Word formats—serving as an indispensable resource for Research and Development (R&D) and Quality Assurance (QA/QC) pipelines within polymer processing plants, rubber compound facilities, textile laboratories, and advanced electronics cleanrooms.
• Manufacturer: TAIZHOU EBPU PRECISION INSTRUMENTS CO., LTD
• Product Line: High-Precision Single Column Universal Testing Machine (Single Frame UTM)
• System Operational Control: Fully program-controlled via PC-based materials testing software suite
• Drive Mechanism System: Advanced high-performance AC Servo Motor coupled with a backlash-free precision Ball Screw assembly
• Maximum Force Load Capacity Configurations (Max Capacity): 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN (Model selection dependent)
• Metrological Accuracy Classification: International Class 0.5 / Class 1 compliance
• Force Measurement Verification Error (Load Accuracy): Within ± 0.5% or ± 1% of the indicated value (Valid across a comprehensive span from 1% to 100% of the active Load Cell rating)
• Load Readout Resolution: 1/300,000 or greater, utilizing automated dynamic dynamic range switching modules
• Programmable Crosshead Speed Span (Test Speed Range): Continuous linear adjustments spanning 0.01 mm/min up to 500 mm/min (Upgradeable to 1000 mm/min upon custom modification request)
• Crosshead Velocity Precision (Speed Accuracy): Within ± 0.5% of the preset targeted testing speed
• Maximum Vertical Crosshead Displacement Clearance (Max Crosshead Travel): 600 mm, 800 mm, or 1000 mm available options (Clearance measured excluding active grip dimensions)
• Linear Displacement Indexing Resolution: Micropositioning travel resolution calibrated down to 0.001 mm
• Co-integrated Safety Systems: Adjustable hardware mechanical limit switches, automated software-driven Overload Protection (instantly terminates operations if applied load exceeds 10% of maximum load rating), and an isolated physical Emergency Stop mushroom button
• Gripping and Fixture Matrix: Comprehensive inventory including wedge-action tensile grips, pneumatic film clamps, 3-point flexural fixtures, flat compression platens, and 90/180-degree advanced peel fixtures (Custom-tailored according to client specimen specifications)
• Hardware Communication Interfacing: High-speed USB or LAN architecture for seamless data routing directly to the personal computer workstation
• Global Standardization Framework Compliance: ASTM E4, ISO 7500-1, ISO 527, ASTM D882, ASTM D638, JIS B7721
• Main Power Infrastructure Requirements: AC 220V ± 10%, 50/60Hz, Single Phase electrical connection
