Tension and Compression Force Sensors MR07-1500 Mark-10 Vietnam
Price: Contact
Brand: Mark 10 Vietnam
Category: Sensors
Supplier: ansvietnam
Origin: USA
Gọi lại cho tôi
0911472255Tension and Compression Force Sensors MR07-1500 Mark-10 Vietnam

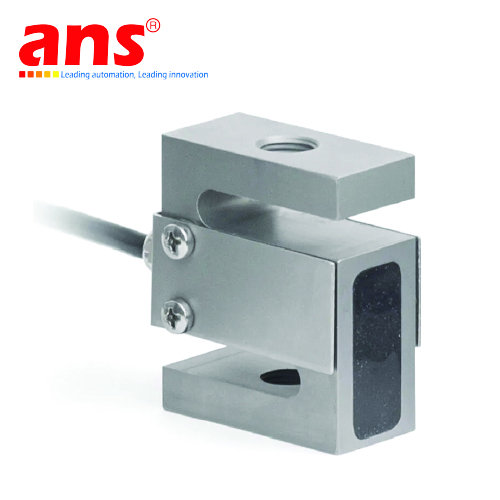

Series MR07 force sensors measure tension and compression forces, and are designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator.
Features
- Measure tension and compression force
- Compatible with Models F755, F755S, F1505, and F1505S test frames
- Member of the Plug & Test® family of interchangeable sensors and indicators
- NIST-traceable certificate of calibration with data is included
| Model | Description |
|---|---|
| MR07-50 | Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N |
| MR07-100 | Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N |
| MR07-200 | Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN |
| MR07-300 | Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN |
| MR07-500 | Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN |
| MR07-750 | Force sensor, 750 lbF / 12000 ozF / 375 kgF / 3750 N / 3.75 kN |
| MR07-1000 | Force sensor, 1000 lbF / 16000 ozF / 500 kgF / 5000 N / 5 kN |
| MR07-1500 | Force sensor, 1500 lbF / 24000 ozF / 750 kgF / 7500 N / 7.5 kN |
