Vibration Sensor ST5484E-123-0020-00 Metrix Vietnam
Price: Contact
Brand: Metrix Vietnam
Category: Sensors
Supplier: ansvietnam
Origin: USA
0911472255Vibration Sensor ST5484E-123-0020-00 Metrix Vietnam

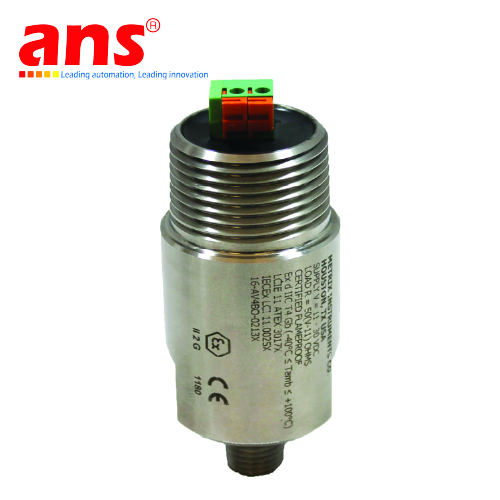

The Metrix ST5484E is a self-contained, loop-powered seismic velocity transmitter that incorporates a piezo-electric accelerometer, signal integrator, RMS peak detector, and 4-20 mA signal conditioner into a single, robust package. The transmitter can be mounted directly on the machine case or bearing housing without need of any intervening signal conditioning equipment. Its 4-20 mA output signal is compatible with most industrial process control instrumentation such as PLCs, DCSs, and SCADA systems, allowing trending and/or alarming capabilities for a simple, economical vibration monitoring solution. The transmitter is also available in a 4-wire version where the extra two conductors provide direct access to the raw acceleration signal, facilitating easy connection to portable data collectors and analyzers.
An extremely wide range of full-scale outputs, mounting stud options, and hazardous area approvals are available, along with an option for 316 stainless steel case materials (303 stainless is standard). The ST5484E Velocity Transmitter is a perfect choice when you are monitoring your rolling element bearing assets.
