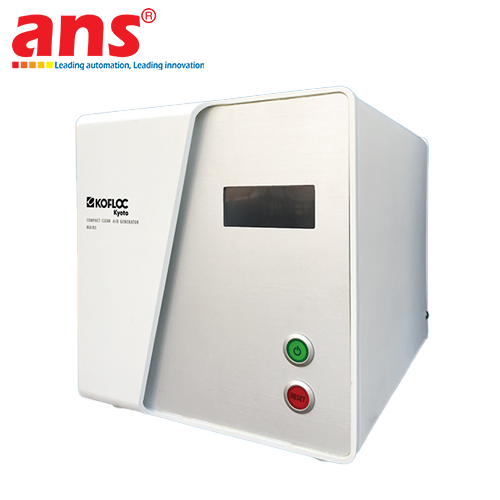

The KOFLOC MINI-GEN-N2-01 compact benchtop Nitrogen gas generator is a state-of-the-art gas separation instrument engineered by KOFLOC (Japan) – a worldwide market leader in fluid flow measurement and control technology. Built upon a true "Plug & Play" philosophy, the MINI-GEN-N2-01 efficiently transforms standard compressed air into clean, high-purity Nitrogen gas on-demand, completely removing the hazards, cumbersome handling, and recurring rental costs of high-pressure N2 gas cylinders.

Featuring an ultra-compact footprint, this desktop unit can sit directly on laboratory workbenches or fit seamlessly beside automated industrial assembly lines. With fully automated processing, silent operation, and stable delivery pressure, it is exceptionally suitable for continuous inert atmosphere applications such as spectrophotometry, gas chromatography, moisture-barrier dry cabinets, lead-free SMD soldering, and surface oxidation prevention for sensitive semiconductor or optical parts.

• Manufacturer: KOFLOC (Kojima Instruments Inc.)
• Brand Origin: Japan
• Product Model: MINI-GEN-N2-01
• Equipment Category: Compact Desktop Nitrogen Gas Generator
• Separation Technology: Advanced Hollow Fiber Membrane / Micro-PSA Adsorption Technology
• Nitrogen Output Purity: 99.0% to 99.99% (Adjustable depending on required flow rate)
• N2 Output Flow Rate: 0.5 – 1.0 L/min (Standard rated capacity)
• Delivery Pressure: 0.3 – 0.5 MPa (Depending on primary supply pressure)
• Compressed Air Supply Requirements:
  - Inlet Pressure Range: 0.6 – 0.85 MPa (Max 0.9 MPa)
  - Supply Air Quality: Clean, oil-free, dry compressed air (ISO 8573-1 Class 1.4.1 compliant)
  - Inlet Dew Point: Below -20°C
• Operating Temperature: 5°C to 40°C
• Operating Humidity: Below 80% RH (Non-condensing)
• Air Connections:
  - Compressed Air IN: Ø 6 mm push-in quick fitting or Rc 1/4"
  - Nitrogen OUT: Ø 6 mm push-in quick fitting or Rc 1/4"
  - Drain / Exhaust: Built-in muffler exhaust port
• Display & Safety Indicators: Mechanical pressure gauge, power status LED, and stable output indicator
• Operating Noise Level: Extremely quiet (< 45 dB), perfectly suited for silent lab environments
• Installation Method: Desktop / Benchtop placement
• Power Supply: AC 100V – 240V (50/60 Hz)
• Power Consumption: Ultra-low energy design (< 30W)
• Overall Dimensions: Approx. 200 mm (W) × 320 mm (D) × 250 mm (H)
• Total Weight: Approx. 8 kg – 12 kg (Highly portable and flexible placement)
