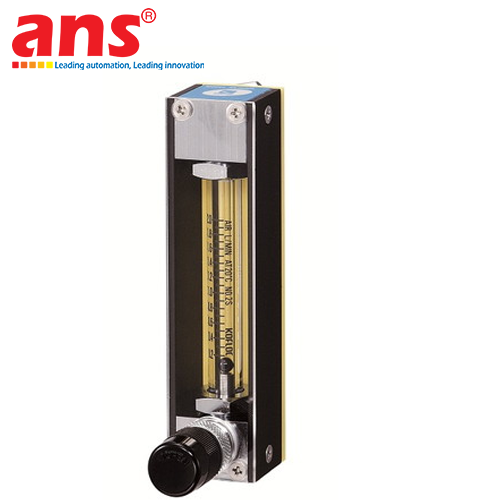

The KOFLOC RK1600-SS-CC-1/4-Air-20/30-L/min is a high-precision variable area flowmeter (Rotameter) belonging to the acclaimed RK1600 series by KOFLOC (Kojima Instruments Inc., Japan). Renowned for its solid mechanical design, elegant appearance, and exceptional responsiveness, the RK1600 series delivers smooth, highly accurate flow regulation across both industrial lines and advanced research laboratories.

Constructed with high-grade Stainless Steel (SUS) wetted parts, the unit provides superior resistance to corrosion and environmental degradation, paired with a heavy-duty Borosilicate Pyrex glass metering tube for crystal-clear readability. The graduated scale is precisely laser-etched to resist fading over time, enabling operators to visually assess flow rates with confidence. Equipped with an integrated micro needle valve, it ensures smooth flow adjustments under working pressure conditions of 0.1 MPa to 0.3 MPa. This model represents a top-tier choice for electronics assembly, semiconductor manufacturing, optical device fabrication, and precision automated pneumatic systems.

• Manufacturer: KOFLOC (Kojima Instruments Inc.)
• Brand Origin: Japan
• Full Model Code: RK1600-SS-CC-1/4-Air-20/30-L/min-(0.1MPa-0.3MPa)
• Product Classification: Precision Variable Area Flowmeter / Purge Rotameter
• Applicable Fluid: Clean Compressed Air
• Calibrated Flow Range: 20 L/min or 30 L/min (Standard Air calibration)
• Calibrated Operating Pressure: 0.1 MPa – 0.3 MPa
• Maximum Working Pressure: 0.8 MPa (approx. 8 bar)
• Proof Pressure: 1.0 MPa (10 bar)
• Measurement Accuracy: ±2% F.S. (Full Scale)
• Repeatability: ±0.5% F.S.
• Flow Adjustment: Integrated precision needle control valve
• Process Connection: 1/4 inch female threaded connection (Rc 1/4" or NPT 1/4")
• Flow Direction: Vertical bottom-inlet to top-outlet (Bottom IN - Top OUT)
• Body & Block Material: Stainless Steel (SUS304 / SUS316)
• Tapered Tube Material: High-grade Borosilicate Pyrex Glass
• Float Material: SUS316 Stainless Steel / High-grade glass
• Sealing Material: Chemical-resistant FKM (Viton) / NBR O-rings
• Operating Temperature Range: 0°C to 60°C (Fluid and Ambient)
• Installation Method: Front Panel Mount with secure rear fixing nuts
• Typical Applications: Air shower purge metering, semiconductor cleaning dry lines, automated soldering shield gas control, laboratory carrier air regulation, and pneumatic testing instrumentation
