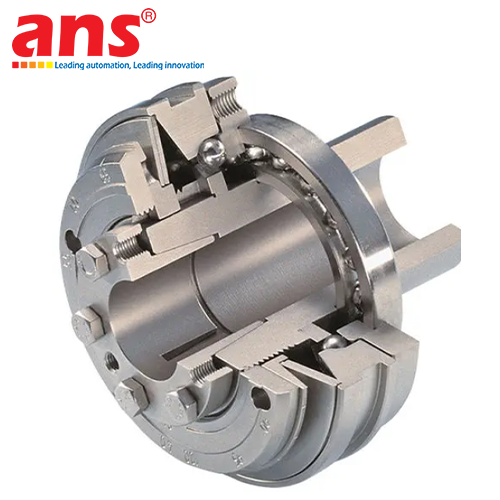

MAYR EAS®-NC BACKLASH-FREE LOW-INERTIA ELECTROMECHANICAL OVERLOAD CLUTCH AND TORQUE LIMITER FOR HIGH-SPEED SERVO DRIVES

DEEP PRODUCT OVERVIEW & HIGH-DYNAMIC NC AXES CRASH PROTECTION INFRASTRUCTURE
The Mayr EAS®-NC represents the definitive elite tier of specialized solid-state power transmission safety mechanism engineering, configured as a high-precision backlash-free mechanical Overload Clutch and protective Torque Limiter purpose-built for Numerical Control (NC) automation frameworks, developed and manufactured 100% in Germany by world-renowned safety component pioneer Chr. Mayr GmbH + Co. KG. This advanced device functions as an ultra-fast mechanical fail-safe "fault isolation engine", specified explicitly to pair flush inside the drive train of high-dynamic servo motor shafts, high-velocity multi-axis CNC machine tools, high-speed product feeding systems, and precision robotic positioning arms. During extreme acceleration sprints executed by modern high-end servo packages, intense mass inertia forces paired with potential tool-path collision vectors present a constant threat to hardware integrity. Without an absolute high-response torque decoupling unit, structural impact forces travel backward instantly, twisting precision ballscrews (Ballscrew configurations), shattering planet gear assemblies inside high-value reduction gearboxes, and burning stator windings in milliseconds. The Mayr EAS®-NC totally eliminates this catastrophic failure cascade, completely breaking mechanical contact the exact millisecond torque spikes breach nominal thresholds to guarantee uninterrupted round-the-clock shift operation metrics via ANS logistical channels.

UNCOMPROMISED BALL-DETENT COUPLING TOPOLOGY DELIVERING ZERO ROTATIONAL PLAY
The primary mechanical asset and core compliance advantage electing the EAS®-NC series for precision automatic machining grids resides in its closed-loop flat friction contact parameters:
- Complete Eradication of Angular Drift (100% Backlash-Free): To safeguard the sub-millimeter tolerances demanded during modern multi-axis workpiece cutting profiles, the safety coupling leverages pre-stressed disc spring columns to lock hardened alloy steel bearing balls tight into precision-milled structural seating detents. This structural architecture guarantees absolute zero rotational play (Zero backlash) paired with immense torsional stiffness (High torsional stiffness), allowing servo loops to process rapid directional velocity changes without experiencing linear displacement or lag.
- Sudden Low-Friction Free-Wheeling Decoupling: The millisecond local resistance profiles breach factory-calibrated safety limits, the internal steel balls instantly escape their friction borders, completely disengaging the drive loop within a fraction of a second. Following disconnection, the coupling transitions into a pure free-wheeling state, running with near-zero residual torque friction to fully isolate auxiliary drive hardware components from physical impact loads.

MINIMALIST MASS INERTIA FORM FACTOR OPTIMIZED FOR AGGRESSIVE REVERSING FREQUENCIES
The distinct geometrical engineering edge lifting the EAS®-NC series into the definitive baseline for high-velocity NC drive configurations centers upon its weight-optimized metallurgy:
- Parasitic Mass Inertia Minimization: The relentless start-stop profiling and rapid rotational direction shifts tracking hundreds of cycles per minute across advanced servo paths dictate that companion drivetrain components must embody a minimalist weight profile. Mayr developers resolved this mechanical requirement by minimizing external chassis dimensions and selecting ultra-dense, case-hardened structural steel alloys. This lightweight construction drastically cuts system dead-weight (dead weight), saving up to 35% overarching facility electricity metrics while empowering servo lines to deploy maximum linear acceleration limits on the factory floor.
- Keyless Backlash-Free Clamping Hub Layout: The input driving connection houses an integrated high-torque mechanical shrinking taper sleeve interface, clamping completely flush around the motor shaft via concentric high-tensile cap screws to eliminate mechanical keyway fretting risks during reversal loops.

REAL-TIME CLOSED-LOOP TELEMETRY MONITORING & PRECISE AUTOMATED RE-INDEXING
- Edge-Level Remote Fault Diagnostic Interface: The main hardware chassis features a pre-machined technical actuation groove designed to interact flawlessly with proximity sensor arrays or external mechanical Microswitches. The exact millisecond mechanical overload causes clutch separation, the sensor sends an automated error output signal straight to the central master PLC rack or servo drive inverter loop, triggering an immediate electrical cutoff to protect active floor sectors.
- Synchronous Single-Position Angle Re-engagement: The coupling incorporates intelligent structural indexing, re-locking the mechanical drive loop precisely back at the original angular position coordinate (e.g., standard 360-degree reference synchronization) once field maintenance crews clear the mechanical blockage. This prevents downstream digital tracking loops from losing encoder coordinates, completely eliminating time-consuming manual homing calibrations. The solid-state package operates 100% maintenance-free regarding fluid ingress or lubrication changes, tracking continuous lifecycle performance supplied through verified ANS distribution channels.

DYNAMIC PROPULSION METROLOGY & COUPLING PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Full System Part Number Certified: EAS®-NC Series
- Device Structural Profile: High-precision backlash-free mechanical torque limiter and overload clutch unit purpose-built for NC servo drives.
- Operational Disengagement Topology: Ball-detent mechanical separation system, executing absolute free-wheeling drive line isolation upon over-torque activation.
- Torsional Axis Interface Scale: 100% Backlash-free torque transmission (Zero micro-play mechanical coupling).
- Dynamic Mass Inertia Modulus: Ultra-low mass inertia layout profile (Weight-optimized structural design) optimized for high-acceleration high-frequency reversing duty cycles.
- Nominal Torque Calibration Spectrum: Multi-tier scalable configurations calibrated to fit precise metric outputs from low-capacity servo cells up to large high-torque industrial motor shafts.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on shaft diameters and torque limits)

MECHANICAL PROPERTIES & INTERCONNECT PROVISIONS hiện trường
- Driving Shaft Hub Configuration: High-rigidity keyless mechanical shrinking taper assembly (Backlash-free clamping hub layout with concentric high-tensile bolts).
- Driven Component Interfacing Mating: Engineered for seamless drop-in integration directly to high-precision ballscrews (Ballscrew lines), flexible co-axial shaft couplings, or direct reduction gear columns.
- Synchronous Re-engagement Kinematics: Automatic angular re-indexing tracking precision single-position re-locking coordinates to preserve digital machine encoder references.

STRUCTURAL METALLURGY & PREVENTATIVE MAINTENANCE MANDATE
- Core Housing Substrate Metallurgy: Premium high-density engineered structural steel alloy treated with multi-layer anti-corrosive plating, precision-ground to a flat layout resisting vertical compression stress and high torsional impact loads.
- Internal Actuator Spring Matrix: Pre-stressed mechanical disc spring configurations engineered for elite elastic modulus retention, preventing hysteresis-induced torque drift over prolonged continuous 24/7 runtimes.
- Lubrication & Field Maintenance Criteria: Sealed solid-state build pre-packed with lifetime high-temperature synthetic lubricants; 100% Maintenance-free concerning physical grease line service loops.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
