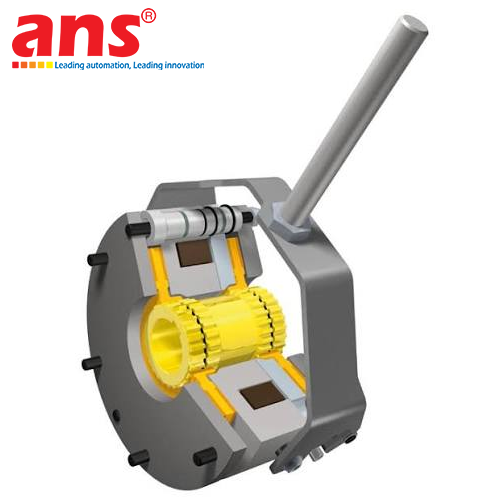

MAYR ROBA-STOP®-Z REDUNDANT DUAL-CIRCUIT FAIL-SAFE ELECTROMAGNETIC SAFETY DUAL BRAKE

DEEP PRODUCT OVERVIEW & HEAVY INDUSTRIAL LOW-PROFILE HOIST INFRASTRUCTURE
The Mayr ROBA-stop®-Z represents the universal industry vanguard in specialized solid-state mechanical safety engineering, configured as a highly integrated redundant Electromagnetic Safety Brake engineered to secure vertical handling networks, developed and manufactured 100% in Germany by world-renowned safety mechanism pioneer Chr. Mayr GmbH + Co. KG. This advanced hardware acts as the ultimate mechanical fail-safe "double protection constraint" specified to govern vertical hoists, high-mass industrial winches, and automated theater stage decorations where moving human personnel or high-altitude structural loads are suspended over public spaces. Utilizing an absolute fail-safe spring-applied mechanism that triggers high-compression mechanical force loops instantly when electrical grid power drops, it releases active linear motion exclusively via inductive electromagnetic flux fields (Spring-applied safety brake topology). Packaging a fully redundant dual-circuit mechanical profile operating two separate braking grids parallel straight inside a singular compact housing, the ROBA-stop®-Z delivers uncompromised continuous runtime safety benchmarks supplied through official logistics partner ANS.

REDUNDANT DUAL-CIRCUIT MECHANICAL INTEGRITY MATED WITH DIN 56950 & DGUV RULE 17 STANDARDS
The definitive engineering asset and core compliance advantage driving the ROBA-stop®-Z model centers upon its independent, dual-zone circuit layout:
- Redundant Mechanical Fail-Safe Performance: The brake incorporates two independent spring clusters and discrete armature plates functioning in parallel within a singular flattened body block. This structural configuration satisfies strict German stage technology code DIN 56950, DGUV Rule 17 (overarching accident prevention criteria for theatrical performance spaces), and international passenger lift EN 81 criteria.
- Instant Safety Interlock Activation: Active line operations require both circuits to process input signals simultaneously. Should one circuit segment suffer unexpected coil voltage drop, winding leakage, or friction plate abrasion, the companion circuit maintains 100% nominal holding torque capacity. This anchors the drive shaft instantly, locking heavy house scenery bars, platform scissor lifts, or elevator cabs perfectly stationary at milimetric coordinates to negate catastrophic gravity drop hazards.

COAXIAL SPACE-SAVING FORM PROFILE PURPOSE-BUILT FOR COMPACT MOTOR SHAFTS
- Spatial Footprint Optimization Geometry (Short design length): Across heavy industrial incline tracks, multi-axis rigging winches, and tight stage frame machinery layouts, physical clearance space at the rear of the drive motor shaft is severely restricted. Stacking two independent baseline brake blocks inline according to legacy methods extends shaft dimensions awkwardly, increasing overall torsional weight and promoting drive center misalignment errors. Mayr developers dissolved this layout challenge on the ROBA-stop®-Z line by nesting both friction interfaces into a singular coaxial unit width scale. This short axial format reclaims up to 50% physical space compared to old double-brake assemblies, enabling rapid field hot-swap mounting and tool-free maintenance.
- Acoustic Disruption Attenuation: Finished with specialized high-durability mechanical sound-absorption dampener rings, the drive thoroughly quells sharp metal-to-metal impact resonance characteristic of armature plate cycling, executing near-silent switching profiles that align with acoustic demands in silent theater performance halls.

REAL-TIME TELEMETRY TRACKING INTERFACES & PREDICTIVE MAINTENANCE OVERRIDES
- Intelligent Condition Monitoring Interface: To guarantee operational security loops across relentless shifts, the ROBA-stop®-Z houses integrated micro-distance tracking switches (independent mechanical Microswitches or Inductive proximity sensors) assigned to both discrete circuit pathways. This telemetry matrix maps the exact Released or Engaged orientation of the braking core, routing continuous status parameters straight to central automated PLC racks.
- Edge-Level Predictive Maintenance Tracking: The diagnostic sensor array actively tracks operating micro air gaps (Air gap window). The moment persistent 24/7 friction lining abrasion pushes mechanical clearances beyond tight factory tolerance parameters, the system triggers a dedicated wear warning signal (Wear monitoring signal). This feeds a diagnostic code to central DCS automation systems, empowering service crews to execute hardware calibration changes well before mechanical lockups compromise vertical lift lines. The solid-state package requires zero grease ingress throughout its complete life span, establishing 100% maintenance-free operational security supplied through official ANS logistical vectors.

DYNAMIC PROPULSION METROLOGY & HOLDING PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiaSon)
- Full System Part Number Certified: ROBA-stop®-Z Series
- Device Structural Profile: Redundant electromagnetic spring-applied safety dual brake
- Redundancy System Architecture: Fully Redundant Dual-Circuit Mechanical Configuration (Redundant dual-circuit layout)
- Default Operational Principle: Failsafe mechanical lock engaged via integrated spring force upon line power termination; electromagnetically released via inductive coil initialization.
- Engineering Code Compliance Certifications: Full design verification tracking German stage technology DIN 56950 codes, DGUV Rule 17 entertainment venue safety rules, and passenger lift EN 81-20/50 safety criteria.
- Nominal Holding Torque Scale (Braking Torque): Scaled across multi-tier standardized metric sizes to match matching industrial crane winch capacities handling multi-ton load spikes.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics)

MECHANICAL PROPERTIES & STRUCTURAL METALLURGY
- Drive Engine Interfacing Compatibility: Optimized for coaxial space-saving axial length designs, minimizing rear shaft extension clear profiles by 50% across industrial gearmotors and hoisting winches.
- Stator & Armature Base Substrate: High-density structural alloy steel engineered for superior magnetic flux transmission, precision-ground to a flat layout resisting torsional deflection stress under vertical load drops.
- Friction Lining Material Composition: High-coefficient asbestos-free friction linings engineered for thermal stability and advanced physical wear resistance.
- Lubrication & Preventative Maintenance Mandate: Sealed solid-state build requiring zero grease ingress; 100% Maintenance-free concerning physical lubrication routines.

ELECTRICAL RATINGS & INTEGRATED DIAGNOSTIC LOGIC
- Compatible Coil Input Supply Voltage Rail: Standard industrial DC voltage configurations (e.g., 24V, 104V, 180V, 207V DC managed via technical panel rectifier blocks).
- Condition Monitoring Hardware Matrix: Factory-fitted independent dual mechanical Microswitches or inductive proximity arrays tracking separate circuit stroke lines.
- Diagnostic Automation Telemetry Feedback: Real-time closed-loop signal channels routing separate Release/Engage Monitoring parameters paired with automated micro Air Gap Wear Monitoring Signals straight to localized automation PLC controllers.

ENVIRONMENTAL SPECTRUM & FIELD COMMISSIONING MANDATES
- Operating Area Cleanliness Safety: Enclosed carbon-dust-free configuration releasing zero particulate soot, fitted with internal acoustic sound-attenuation rings to reduce switching noise volume.
- Primary Industrial Deployment Profiles: Theater scenery fly hoists, multi-level performance stage lift cassettes, heavy industrial materials handling winches, sloped incline package protect elevators, and passenger lifts requiring strict redundant mechanical fail-safe parameters.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
