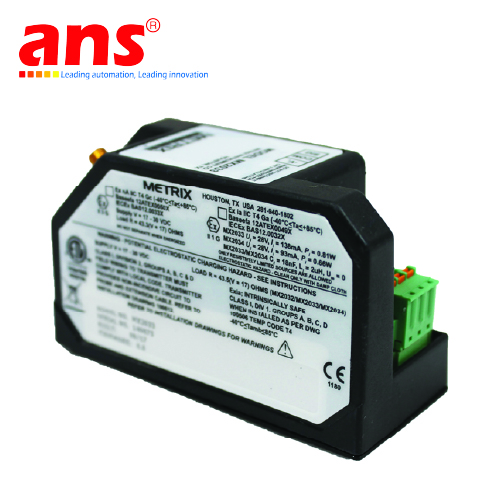

Wire Driver MX2033-01-01-09-05 Metrix Vietnam

Product Overview

The Metrix MX2033 combines the proven performance of an API 670-compliant eddy current proximity measurement system with the flexibility of digital configurability. With tens of thousands of successful installations worldwide, the MX2033 is a reliable solution for modern proximity sensing. Users can easily configure the system in the field using custom calibration curves or select from over 40 factory-preloaded configurations for different target materials, probe diameters, manufacturers, extension cable lengths, and linear ranges.

Approximate weight: 247 g (8.7 oz)

Key Features

Field Configurability
The free Metrix DPS software allows direct connection to the MX2033 three-wire driver, enabling users to tailor the driver to their specific application. Designed as a versatile drop-in replacement.
Flexible Scale Factor
Supports scale factors from 100 mV/mil (3.93 mV/µm) to 200 mV/mil (7.87 mV/µm), enabling measurement ranges from 10 – 180 mils (250 – 4,500 µm). The ability to adjust the scale factor in the field is a unique feature of Metrix proximity systems.
Wide Frequency Range
Operates from 0 Hz to 10 kHz, ensuring compatibility with a broad range of applications.
High Compatibility
Works seamlessly with various probes and proximity sensor cables, as well as virtually all vibration monitoring systems, including third-party systems.
Modernized Design
Replaces traditional fixed-configuration proximity measurement systems with flexible, digital configurability—helping users save both time and costs.

Technical Highlights

Output Signal: Dynamic voltage in mV/µm or mV/mil, compliant with API 670 standard formats
Excitation Voltage: -24 VDC
Typical Output: 7.87 mV/µm (200 mV/mil)
Digital Configuration Options:
- Wide range of common and unknown shaft materials
- Adjustable system lengths
- TIGHTVIEW® for restricted clearances
- Compatibility with probes and cables from other manufacturers
- Legacy probe and cable support
- Cross-talk immunity
- Pulse suppression and speed adjustment
- Extended range support for 8 mm probes
