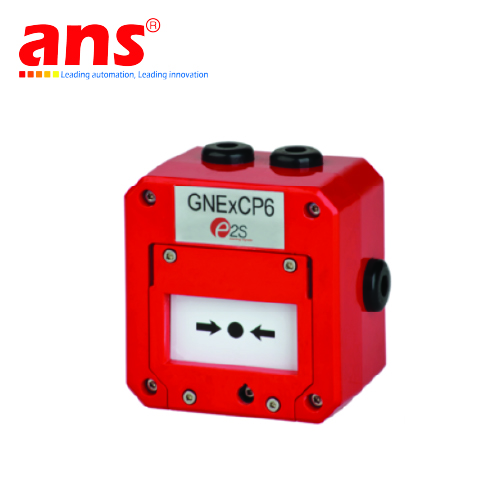

GNExCP6BBGDDLAP3A1RL24ExxxZSD1 Break Glass Call Point E2S Vietnam





Description

Available with optional EOL or series resistors, diode or Zener diodes and an LED indicator. Also with either single or double pole change over switches. Certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code.

Features

  • Alternative housing colours are available to meet specific requirements
  • Single or double pole c/o switch
  • DIN rail mounted terminal blocks: 8 × 2.5mm²
  • Metalised polyester or stainless steel “Duty” label
  • Series and/or End of Line resistors, diodes & Zener diodes
  • Optional Indicator LED
  • Break glass hammer accessory available
