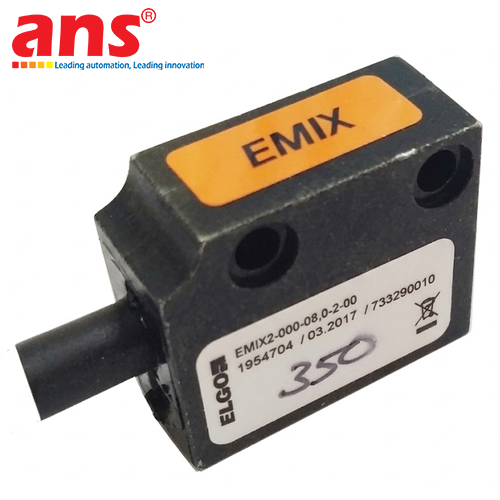

The ELGO Model EMIX2-000-01.5-2-00 Magnetic Incremental Length Measuring System, engineered and manufactured by ELGO Electronic GmbH & Co. KG in Rielasingen, Germany, is a compact magnetic linear encoder featuring fully integrated sensor and interpolation electronics housed within an ultra-robust zinc die-cast body.

Unlike conventional optical glass scale encoders that suffer from optical path contamination caused by cutting fluid mist, dust, sawdust, or metallic chips, the ELGO magnetic system operates via non-contact electromagnetic scanning over an external flexible magnetic tape (ELGO MB20-20-10-1-R). Because there is zero physical friction or delicate optical glass to crack or smudge, the EMIX2 is completely impervious to environmental contamination, delivering an exceptionally long, maintenance-free operational service life.

Model Code Breakdown & Configuration (EMIX2-000-01.5-2-00):
- EMIX2: Compact 2nd-generation magnetic incremental linear encoder series with integrated sensor translator/interpolator electronics.
- 000: Standard calibrated resolution of 0.01 mm (10 µm) with 4-edge evaluation (quadrature signal decoding).
- 01.5: 1.5-meter flying lead signal cable assembly.
- 2: High-flexibility cable jacket engineered specifically for continuous flexing inside dynamic cable drag chains (drag chain suitable).
- 00: Standard hardware build: 10 to 30 VDC input operating voltage with robust Push-Pull (HTL) differential output drivers directly compatible with PLC high-speed counter modules.

Key Engineering Features & Operational Advantages:
- Integrated Sensor and High-Speed Interpolator: Integrates both the multi-element magneto-resistive Hall array and the micro-processing interpolator inside a single miniature zinc housing measuring only 40 x 14.5 x 25 mm. This eliminates bulky external converter boxes, allowing easy retrofit into tight machine slide spaces.
- Non-Contact Scanning with Generous Air Gap: Operates with a safe physical clearance (air gap) ranging from 0.1 mm up to 0.8 mm above the magnetic tape surface. This non-contact gap prevents mechanical wear or friction drag, enabling traverse speeds up to 4.0 m/s without measurement degradation.
- High-Integrity Differential Square-Wave Outputs: Generates two 90° electrically phase-shifted square-wave channels (A and B) for directional decoding, complementary differential inverted channels (/A and /B) for common-mode noise rejection over extended runs, and a periodic reference index pulse (Z and /Z) synchronized to the 2 mm magnetic pole pitch.
- Multi-Color Diagnostic LED: The top plate features an integrated status LED that gives real-time visual feedback: steady green confirms valid operating power and proper magnetic field strength; flashing or color shifts warn the operator if the air gap is exceeded or if traversing velocity is out of tolerance.
- Fully Potted IP67 Industrial Metallurgy: The zinc die-cast housing is completely encapsulated in an elastomeric potting resin, delivering IP67 ingress protection against complete dust ingress and temporary liquid immersion. It easily withstands continuous splashing of cutting oil, alkaline detergents, and abrasive slurries.

Target Industrial Sectors & Applications:
- Machine Tools & Metalworking: X-Y-Z axes feedback on CNC milling centers, lathes, surface grinders, wire EDM machinery, and metal circular saws.
- Sheet Metal Fabrication: Hydraulic press brake backgauge and ram position control, sheet metal shears, and automatic punching stops.
- Industrial Woodworking: Automated panel beam saws, multiple-spindle drilling centers, edge banders, and CNC routers.
- Stone & Glass Processing: Bridge cutting saws for granite/marble slabs, glass edging machines, and waterjet cutting tables.
- Automation & Packaging: Cartesian gantry pick-and-place robots, labeling machines, roll slitter rewinders, and automated assembly transfer slides.

• Manufacturer: ELGO Electronic (ELGO Electronic GmbH & Co. KG)
• Country of Origin: 100% Germany (Made in Germany)
• Product Line: EMIX Series Magnetic Incremental Length Measuring Systems
• Model Designation / Order Code: EMIX2-000-01.5-2-00
• Measuring Principle: Non-contact magnetic field scanning using integrated Hall sensors
• Compatible Magnetic Tape: ELGO MB20-20-10-1-R magnetic tape (or 2 mm pole pitch equivalent)
• Magnetic Pole Pitch: 2 mm (alternating North/South poles)
• Linear Resolution: 0.01 mm (10 µm) at 4-edge evaluation
• Repeatability: ±1 increment (±0.01 mm / ±10 µm)
• Sensor Air Gap (Reading Distance): 0.1 mm to maximum 0.8 mm
• Maximum Operating Velocity: Up to 4.0 m/s (dependent on sampling frequency and resolution)
• Output Waveform: Differential square-wave signals A, /A, B, /B, Z, /Z (A and B phase-shifted by 90° e)
• Output Driver Circuit: Push-Pull (HTL) high-power driver stages
• Output Signal Level: Proportional to input power supply (10 to 30 VDC level)
• Power Supply Requirements: 10 to 30 VDC (±5% residual ripple)
• Current Consumption: Maximum 150 mA (excluding external output load)
• Diagnostic Status Display: Multi-color integrated LED (indicates power, magnetic field, and error status)
• Cable Length: 1.5 meters (Option 01.5)
• Cable Type: High-flexibility drag-chain compliant cable, PUR/PVC jacket resistant to oils and grease (Option 2)
• Electrical Termination: Flying lead open cable ends
• Housing Metallurgy: Heavy-duty zinc die-cast housing, fully epoxy encapsulated
• Physical Sensor Dimensions: 40 x 14.5 x 25 mm (L x W x H)
• Ingress Protection Rating: IP67 conforming to EN 60529 (submersible and dust-tight)
• Operating Ambient Temperature Range: -10°C to +70°C (+14°F to +158°F)
• Storage Temperature Range: -25°C to +85°C (-13°F to +185°F)
• Mechanical Vibration Resistance: 10g (50 to 2000 Hz) per IEC 60068-2-6
• Mechanical Shock Resistance: 30g (11 ms duration) per IEC 60068-2-27
• Regulatory Conformity: CE marked, RoHS compliant, ISO 9001 quality certified.
