ITOH DENKI CB-018N2 NPN LOGIC MOTORIZED DRIVEN ROLLER (MDR) DRIVER CARD

DEEP PRODUCT OVERVIEW & CONTROL CABINET SYSTEM INTERFACE

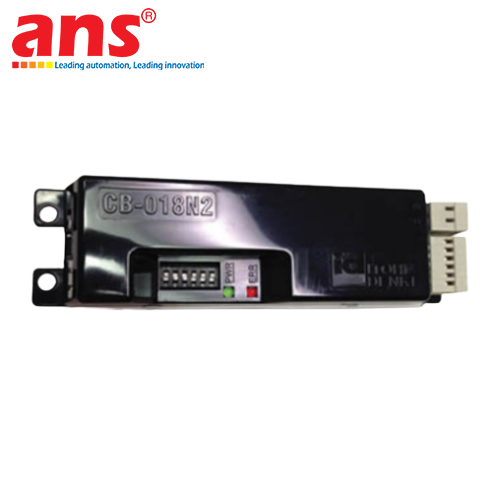

The Itoh Denki CB-018N2 is a high-performance central control board (Driver Card / Control Board) engineered specifically to drive and command motorized driven rollers (MDR / Power Moller - 24V DC), developed and manufactured by the global conveyor automation pioneer Itoh Denki (Japan). This hardware acts as the fundamental "bridge" regulating communications between the master control PLC, industrial sensors, and the internal motor blocks inside the 24V DC MDR rollers. The seamless alignment of the CB-018N2 with the Itoh Denki MDR ecosystem establishes a modular, intelligent, and highly flexible automated conveyor fabric. By utilizing NPN logic protocols and an intuitive, field-adjustable speed profiling system, this component remains a critical backbone for high-speed logistics sorting arrays, E-commerce parcel fulfillment hubs, and heavy-duty electronic assembly lines.

NPN LOGIC PROTOCOL AND DIP SWITCH SPEED CONFIGURATION
- NPN Logic Standard (Sinking Logic): The CB-018N2 is hard-wired for complete compatibility with NPN 0V sinking logic standards. Control commands for Run/Stop sequences and CW/CCW directionality are dispatched from the PLC or photoelectric sensor via 0V ground-reference inputs. This NPN configuration ensures perfect logical synchronization with modern industrial automation hardware typically powered by Asian standard PLC architectures (e.g., Mitsubishi, Omron), streamlining wiring diagrams and minimizing transient signal noise.
- Field-Adjustable Speed Profiling (DIP Switch Control): By eschewing complicated programming tools, software interfaces, or high-end bus controllers for basic speed setting, the bo mạch incorporates a localized, field-ready bank of DIP switches. Maintenance personnel can mechanically toggle these switches in distinct combinations to select 1 of 8 predefined speed operational levels. This enables site-level scaling of transit velocities matching actual throughput volumes, vastly accelerating commissioning intervals and line adjustments.

HARDWARE-LEVEL PROTECTION BLOCKS & PLUG-AND-PLAY ARCHITECTURE
- Active Hardware Protection Matrices: To block terminal failures from overcurrent conditions, short-circuits, or product jamming, the CB-018N2 is built with tiered hardware security: integrated current fuses (Current Fuse) and local thermal overload sensing (Thermal overload protection). In the event of a mechanical jam, the control circuit instantly kills electrical delivery to the roller block. Upon the clearing of the event and the dissipation of the thermal load, the circuit self-resets, maximizing component service life and safeguarding the integrated drive motor.
- Plug-and-Play Interconnects: The system slashes field installation hours via standardized Connector arrays. The motor lead-outs "click" straight into the dedicated card ports, while separate Power and Control jacks enable rapid snap-on connectivity. This tool-free approach allows technicians to swap out or perform maintenance on drive units without unscrewing complex individual wire leads, securing maximum field reliability.

ELECTRICAL DATA & SIGNALING INTERFACE
- Equipment Manufacturer: Itoh Denki (Japan)
- Device Model Code: CB-018N2
- Equipment Classification: Driver Card for Motorized Driven Roller (MDR) systems
- Rated Operating Voltage: 24 V DC (Tolerance window ±10%)
- Logical Signaling Protocol (I/O): NPN (Sinking Logic - Input pull-down, Output sinking 0V)
- Operational Logic Control: Run/Stop execution, Clockwise/Counter-Clockwise (CW/CCW) direction toggle, Dynamic Braking profile

FIELD ADJUSTMENT & SAFETY PARAMETERS
- Speed Scaling Method: Physical bank of DIP Switches (Up to 8 discrete selectable operational speed levels)
- Integrated Safety Protection:
  + Hardware Current Fuse (Overcurrent Protection)
  + Thermal Overload Protection (Automated trip and hardware-level reset loop)
- Paired Hardware Compatibility: Specifically optimized for the Itoh Denki 24V Power Moller ecosystem (Universal fit for PM320HS, PM486, PM570HS and typical 24V MDR tube lines).

INSTALLATION & INTERCONNECT DATA
- Interconnect Interface: Tool-free Plug-and-Play Connector arrangement
- Hardware Interface Connectors Included:
  + 01 x Power Input Connector (Power connector)
  + 01 x Control Logic Signal Connector (Control connector)
- Physical Layout: Ultra-compact, slim-profile board form factor, optimized for installation inside aluminum conveyor side channels or electrical sub-panels.

OPERATIONAL PROFILES & INDUSTRIAL APPLICATION
- Primary Deployment Profiles: Logistics center sorting arrays, Zero Pressure Accumulation (ZPA) conveyor staging zones, electronic component assembly lines requiring low-voltage 24V cleanroom safety, and automated package sorting gateways.
- Operational Characteristics: Extremely silent, safe, maintenance-free (eliminates external chains, drive belts, or gearboxes), and maximizes floor-space efficiency by packing drive nodes straight into the conveyor footprint.
