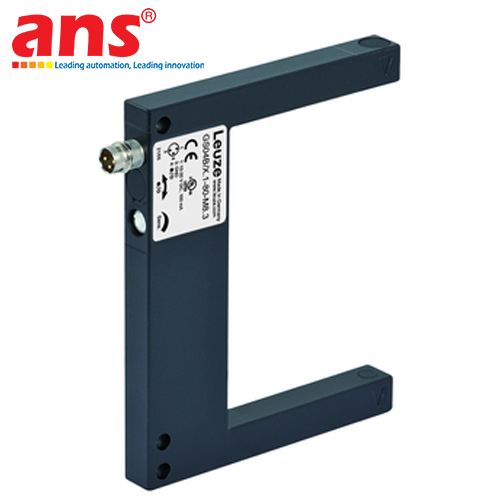

The Leuze GS04B/P.1-80-M8.3 (Part Number: 50146167) is a high-precision optical fork photoelectric sensor from Leuze electronic's advanced Series 04B (Germany). By integrating transmitter and receiver optics directly opposite each other inside a rigid diecast zinc U-shaped frame with an 80 mm mouth width and 55 mm mouth depth, this sensor eliminates tedious optical alignment routines associated with conventional throughbeam pairs.

KEY PRODUCT FEATURES AND OPERATIONAL ADVANTAGES:
1. Wide 80 mm Mouth Width & 55 mm Depth:
The spacious 80 mm fork opening and 55 mm deep throat allow workpieces, part carriers, or rotating indexing wheels to pass freely through the active beam path without risk of mechanical collisions.
2. High Micro-Optical Precision – Detects Objects Down to Ø 0.3 mm:
Utilizing a focused 660 nm pulsed red LED light source paired with premium glass optical windows. It reliably detects small objects, thin wires, and sheet edges down to 0.3 mm in diameter, boasting an exceptional 0.02 mm (20 µm) repeatability and an ultra-narrow switching hysteresis of 100 µm.
3. Ultra-Fast 5,000 Hz (5 kHz) Switching Frequency & 0.1 ms Response:
Operating at an ultra-fast 5 kHz switching rate with a 0.1 ms (100 µs) response time, it easily handles high-throughput automated counting, sorting, and position synchronizing on high-speed production lines without missing a pulse.
4. 270° Potentiometer for Sensitivity & Light/Dark Switching:
Equipped with a 270° rotary potentiometer for fine sensitivity calibration tailored to target opacity, while also providing user-selectable Light-switching or Dark-switching operation.
5. Rugged Diecast Zinc Housing with Glass Lens Cover:
Constructed with a heavy-duty diecast zinc housing finished in RAL 9005 black powder coat, shielded with a scratch-resistant glass optical window. Rated IP67 for water and dust ingress protection, ensuring outstanding shock and vibration resistance in harsh factory environments.
6. Standard Industrial M8 3-Pin Connector (-M8.3):
Features an integrated 3-pin M8 male connector (A-coded) on the housing, eliminating cable stress damage and enabling rapid plug-and-play installation during routine maintenance.

TYPICAL INDUSTRIAL APPLICATIONS:
• Semiconductor & SMT Electronics Assembly: IC pin presence checking, PCB component tracking, and high-speed feeder positioning.
• Packaging & Printing Machinery: Web edge guidance on transparent/opaque foils, label presence detection, and registration mark sensing.
• Precision Tooling & Machine Building: Encoder disc indexing, flywheel tooth counting, and slide table home position referencing.
• Bottling & Pharmaceutical Lines: Bottle cap counting, micro-vial inspection, and high-speed test tube verification.

• Manufacturer: Leuze electronic
• Part Number / Model: GS04B/P.1-80-M8.3
• Order Number (Part no.): 50146167
• Series: Series 04B
• Brand Origin: Germany
• Device Type: U-shaped optical fork photoelectric sensor
• Operating Principle: Opposed throughbeam optical principle
• Light Source: Pulsed visible red LED (660 nm)
• Mouth Width (Fork opening): 80 mm
• Mouth Depth: 55 mm
• Minimum Detectable Object Diameter: Ø 0.3 mm
• Positional Repeatability: 0.02 mm (20 µm)
• Switching Hysteresis: 100 µm
• Operational Controls: 270° rotary potentiometer
• Functions of Control: Sensitivity adjustment and Light/Dark switching
• Supply Voltage (UB): 10 ... 30 V DC (Residual ripple 0 ... 15%)
• Open-Circuit Current: 0 ... 30 mA
• Digital Switching Outputs: 1 output
• Switching Output Type: Transistor PNP
• Max. Switching Current: 100 mA
• Switching Voltage: High ≥ (UB - 2V), Low ≤ 2V
• Max. Switching Frequency: 5,000 Hz (5 kHz)
• Response Time: 0.1 ms (100 µs)
• Readiness Delay: 150 ms
• Protective Circuits: Polarity reversal protection, short-circuit protection
• Status Indicators: LED indicators for power and switching state
• Connection Type: Integrated M8 connector, 3-pin male (A-coded)
• Dimensions (W x H x L): 10 mm x 100 mm x 80 mm
• Net Weight: 118 g
• Mounting Type: Through-hole mounting
• Housing Material: Diecast zinc
• Housing Color: Black RAL 9005
• Lens Cover Material: Optical glass
• Ingress Protection: IP 67
• Protection Class: Class III
• Ambient Operating Temperature: -20 °C ... +60 °C
• Storage Temperature Range: -20 °C ... +70 °C
• Standards & Certifications: IEC 60947-5-2, DIN EN ISO 1389-1, cULus Listed
