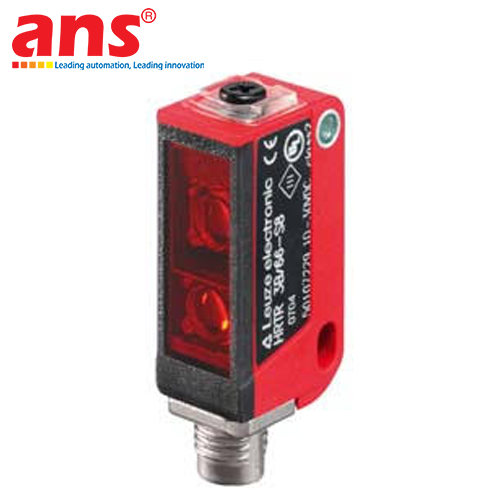

The Leuze HRTR 3B/66-S,200-S12 (Part Number: 50107245) is a high-precision diffuse reflection photoelectric sensor with active background suppression from Leuze electronic's Series 3B. Engineered as a specialized "Small Light Spot" (-S) variant, this sensor generates a tightly focused optical beam ideal for pinpoint object detection, inspecting miniature semiconductor parts, and scanning through narrow mechanical apertures with unmatched accuracy.

OUTSTANDING FEATURES AND OPERATIONAL ADVANTAGES:
1. Small Focused Light Spot (S Version):
Utilizing an advanced 620 nm red LED light source with precision focusing optics, it creates a small circular light spot with a diameter of just 4 mm at a 100 mm distance. This prevents optical beam spillover and ensures accurate target detection of micro components, thin pins, and wire leads.
2. Active Background Suppression & Low Black-White Error:
Through geometric distance measurement, the sensor completely suppresses reflective or interfering backgrounds beyond the set scanning range. It maintains reliable and consistent detection across dark matte objects and glossy metal surfaces from 5 mm up to 200 mm.
3. Dual Push-pull Digital Outputs:
Equipped with two independent Push-pull outputs that support both Light switching (PNP) and Dark switching (NPN) configurations, offering universal connectivity to standard PLC controller systems without extra interface hardware.
4. Ultra-Fast 1,000 Hz Switching Frequency:
With a swift response time of just 0.5 ms, it operates reliably on ultra-high-speed production lines, ensuring high-speed counting, sorting, and quality inspection without missing parts.
5. Pigtail M12 Connector (200-S12):
Features a 200 mm PVC cable with a 4-pin A-coded M12 connector, enabling fast plug-and-play installation, quick wiring, and minimal machine downtime during maintenance.
6. Rugged Industrial Construction (IP67):
Constructed with durable PC-ABS plastic housing and a scratch-resistant PMMA optical window, offering high shock and vibration resistance across operating temperatures from -30 °C to +55 °C.

TYPICAL INDUSTRIAL APPLICATIONS:
• Electronics & Semiconductor Manufacturing: Micro-component detection on SMT pick-and-place machines, IC pin alignment, and PCB presence inspection.
• Precision Engineering & Tooling: Fastener positioning, fine spring verification, and CNC workpiece checking.
• Pharmaceuticals & Medical Packaging: Needle detection, small vial cap monitoring, and blister pack inspection.
• Printing & Packaging Machinery: Contrast registration mark sensing and edge detection on shiny or dark packaging foils.

• Manufacturer: Leuze electronic
• Model / Type: HRTR 3B/66-S,200-S12
• Part Number: 50107245
• Series: Series 3B
• Brand Origin: Germany
• Operating Principle: Diffuse reflection principle with background suppression
• Special Version: Small light spot (S)
• Light Source: Visible Red LED (620 nm)
• Light Spot Geometry: Round
• Light Spot Size: Diameter 4 mm (at 100 mm distance)
• Operating Range: 0.005 ... 0.2 m (5 mm – 200 mm)
• Operating Range Limit: 0.005 ... 0.2 m (5 mm – 200 mm)
• Supply Voltage (UB): 10 ... 30 V DC (Residual ripple 0 ... 15%)
• Open-Circuit Current: 0 ... 15 mA
• Digital Switching Outputs: 2 outputs
• Switching Output 1: Transistor Push-pull (Light switching PNP / Dark switching NPN)
• Switching Output 2: Transistor Push-pull (Dark switching PNP / Light switching NPN)
• Switching Frequency: 1,000 Hz (1 kHz)
• Response Time: 0.5 ms
• Protective Circuit: Short-circuit protection, polarity reversal protection
• Connection: 200 mm cable with M12 connector, 4-pin (A-coded)
• Housing Dimensions (W x H x L): 11 mm x 32 mm x 17 mm
• Net Weight: 20 g
• Housing Material: PC-ABS Plastic (Color: Red RAL 3000)
• Lens Cover Material: PMMA Plastic
• Ingress Protection: IP 67
• Protection Class: Class III
• Operating Temperature Range: -30 °C ... +55 °C
• Standards & Certifications: IEC 60947-5-2, cULus Listed
