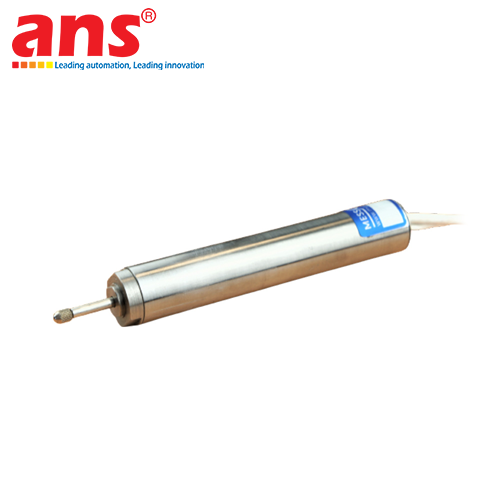

The Messotron DT Series Linear Displacement Transducers (Displacement Transducers / LVDT) deliver elite-tier industrial linear position and distance measuring solutions, carefully engineered and manufactured by Messotron GmbH in Germany. Operating on highly robust inductive or LVDT electromagnetic principles, this product family yields non-contact or spring-loaded mechanical contact measuring architectures boasting exceptional long-term reliability. Within precise automated CNC machinery, robotic production environments, or large-scale structural diagnostic applications, capturing sub-micron micro-displacements proves critical. The Messotron DT Series addresses these physical requirements directly, presenting optimized, highly linearized telemetry feedback with near-zero hysteresis.

Consolidating the comprehensive matrix of the DT Series product portfolio—ranging from micro-stroke variants like DT 2, DT 4, DT 5, and DT 10 to extended measurement models including DT 20, DT 40, DT 100, and DT 500—provides layout engineers with total design freedom. The numeric notations following the DT acronym directly indicate the sensor's linear measuring span in millimeters (mm), mapping seamlessly from micro-scale diagnostic clearances to long-range stroke requirements. The rugged mechanical exterior is sculpted entirely from premium-grade stainless steel, ensuring profound mechanical resilience against blunt shocks, vibrations, and high-frequency resonance native to heavy industrial zones. The transducers carry high ingress protection ratings, effectively shielding sensitive inner circuitry from abrasive metal dust, aggressive cutting cooling fluids, and intense humidity to secure multi-decade longevity without diagnostic calibration decay.

At the technological heart of the Messotron DT Series lies a perfectly balanced, symmetrical internal coil matrix and a low-loss movable magnetic core setup. When interfaced with specialized evaluation electronics (such as the DPU series conditioners), these sensors unlock near-infinite resolution and supreme linearity performance across the complete measuring spectrum. The series is widely integrated into hydraulic or pneumatic cylinder piston tracking, sheet metal thickness monitoring, mechanical wear analysis, civil engineering concrete/bridge contraction diagnostics, and destructive stress-strain lab test rigs. Excellent long-term stability and inherent high-temperature tolerance solidify the Messotron DT Series as the premium choice for global metal foundries, cement plants, paper mills, and automotive manufacturing lines.

• Manufacturer: Messotron
• Country of Origin: Germany
• Product Category: Linear Displacement Transducers / Inductive LVDT Probes
• Integrated Range Models: DT 2, DT 4, DT 5, DT 10, DT 20, DT 40, DT 100, DT 500
• Operating Principle: Inductive Electromagnetic / LVDT (Linear Variable Differential Transformer)
• Linear Measuring Range: From ±1 mm up to ±250 mm (equivalent to total measuring stroke of 2 mm to 500 mm across specific models from DT 2 to DT 500)
• Non-Linearity Discrepancy: < ±0.25% standard (Premium options available down to < ±0.1% across full scale)
• Ingress Protection Rating: IP65 standard protection class (Upgradable to IP67 / IP68 fully submersible variants)
• Chassis Material: High-grade corrosion-resistant Stainless Steel housing
• Electrical Interfacing: Heavy-duty molded integral cable assembly or rugged industrial quick-disconnect Connector setup
• Operating Temperature Tolerance: -20 °C up to +80 °C (Extended high-temperature configuration available up to +120 °C)
• Recommended Excitation Frequency: 1 kHz up to 10 kHz
• System Integration Scope: Hydraulic piston feedback loops, sheet metal rolling thickness gauges, materials testing laboratory instrumentation.
