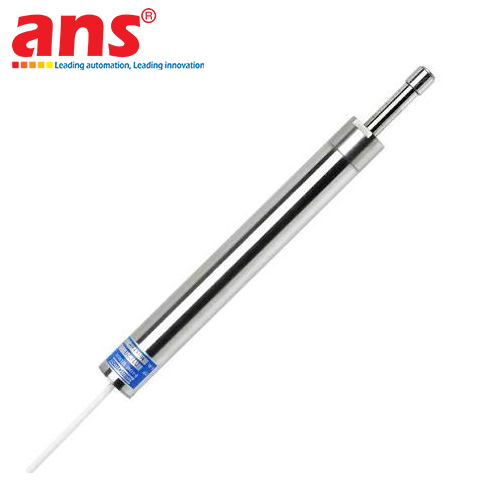

The Messotron DTC Series Linear Displacement Transducers (Displacement Transducers with Integrated Electronics) represent a breakthrough technological milestone engineered by Messotron GmbH in Germany for heavy-duty industrial position telemetry applications. The defining engineering hallmark of the DTC series compared to conventional primary LVDT transducers centers on the letter "C" (Conditioned)—denoting that the device incorporates a pre-calibrated, built-in signal conditioning circuitry directly inside the transducer body housing or within an integral inline cable module matrix. This smart architecture perfectly solves challenging space constraints inside high-density industrial control enclosures: operators completely eliminate the need to purchase, mount, and loop intermediate DIN rail amplification hardware (such as the LVDT DPU signal conditioners). Consequently, this reduces overall system procurement expenses, drastically simplifies field wiring topologies, and eliminates electromagnetic degradation or line losses typically associated with long runs carrying unconditioned raw AC millivolt signals. The output telemetry generated from the DTC sensor is formatted into standardized industrial analog loops, ready for direct interfacing with remote PLC analog input modules or high-speed automation processors.

Consolidating the comprehensive matrix of the DTC Series product family—covering mid to long range spans: DTC 20, DTC 40, DTC 50, and DTC 100—provides layout engineers with a highly cohesive, standardized sensory platform. The numeric designations following the DTC moniker map directly to the transducer's linear measuring stroke in millimeters (mm), ensuring tailored configurations for precise industrial machinery movements. At the technological core of the Messotron DTC Series lies the friction-free interaction between a low-loss movable magnetic core setup and a sophisticated differential processing circuitry loop. This advanced electronic matrix continuously monitors and counteracts real-time ambient thermal fluctuations while delivering exceptional linearization parameters across the total measuring spectrum. This translates into near-infinite diagnostic resolution alongside negligible phase delay or signal latency. The frictionless movement ensures mechanical wear is completely zeroed out, cementing calibration stability across millions of continuous cycles.

From a structural mechanical standpoint, the chassis of the Messotron DTC Series transducer is sculpted entirely from rugged, heavy-wall industrial-grade stainless steel, providing immense resilience against physical shocks, vibrations, and high-frequency structural resonance. The transmitters carry superior Ingress Protection (IP) ratings, hermetically isolating sensitive inner processing circuits from aggressive cutting fluids, abrasive metallic dust, fine industrial debris, and intense moisture ingress. Due to this extreme mechanical versatility and legendary durability, the DTC Series has become an irreplaceable standard for real-time positional control loops on proportional hydraulic valves, long-stroke heavy piston tracking, flat-rolled steel thickness monitoring, structural stress-strain deformation rigs inside materials testing labs, and high-level automation systems inside global automotive plants, cement mills, and heavy power generation grids.

• Manufacturer: Messotron
• Country of Origin: Germany
• Product Category: Linear Displacement Transducer with Integrated Signal Conditioning Electronics
• Integrated Family Models: DTC 20, DTC 40, DTC 50, DTC 100
• Operating Principle: Inductive Electromagnetic / LVDT coupled with integrated transmitter circuitry
• Linear Measuring Stroke: 20 mm, 40 mm, 50 mm, 100 mm (Model dependent)
• Standardized Integrated Outputs: 0...10 V, ±10 V, 4...20 mA, or 0...20 mA (User-specified configuration upon ordering)
• Linearity Discrepancy Margin: < ±0.25% full scale standard (Premium high-accuracy versions available down to < ±0.1%)
• Enclosure Ingress Protection Class: IP65 industrial standard (Upgradable to specialized IP67 / IP68 submersible architectures)
• Chassis Material Composition: High-grade structural Stainless Steel housing
• Operating Power Grid Requirement: 24V DC (With an allowable input tolerance threshold of ±15%)
• Thermal Drift Coefficient: < 0.01% / °C
• Electrical Interface Interface: Heavy-duty molded integral cable assembly or industrial mechanical quick-disconnect Connector setup
• Ambient Operational Thermal Range: -20 °C up to +80 °C
• Electromagnetic Compatibility Standards: Fully certified under CE industrial noise emission and immunity guidelines
