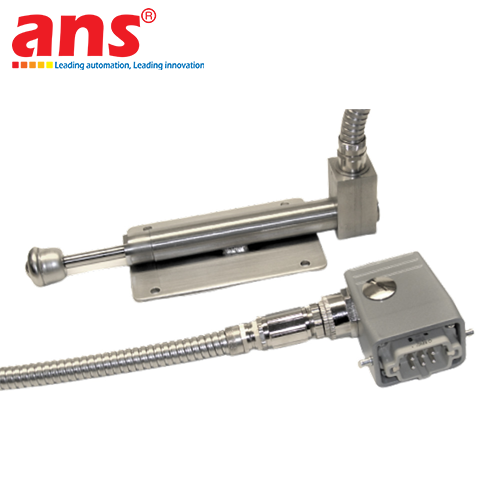

The Messotron DTK 50 AE Linear Displacement Transducer (LVDT Metrology Probe) is a high-precision dimensional gauging and displacement tracking instrument engineered and manufactured by the world-renowned Messotron GmbH in Germany. The DTK 50 AE model is explicitly optimized for mechanical contact measuring setups delivering exceptional stability across its 50mm linear stroke range. The "DTK" designator points to a sophisticated displacement transducer architecture utilizing a spring-loaded returning mechanism (gauge head / taster type), allowing the probe tip to smoothly self-return to its nominal zero position after each inspection loop without requiring a rigid mechanical fastener link to the workpiece. The "AE" configuration refers to a highly compact axial cable entry profile or integrated micro-signal processing envelope, making it the premier choice for sleek integration into industrial automation cabinets and assembly lines with severe spatial restrictions.

At the technological core of the Messotron DTK 50 AE is a meticulously balanced differential induction coil matrix enclosing a low-loss, high-permeability internal moving core setup. The friction-free operation between the internal magnetic core and the coil wall completely zeroes out mechanical hysteresis, unlocking near-infinite structural resolution, instantaneous phase response, and supreme linearity execution down to sub-micron error margins. This capability enables the transducer to capture micro-dimensional variations with absolute fidelity, delivering true real-time position coordinates. When combined with dedicated Messotron signal processing platforms (like the DPU series conditioners), this sensor constitutes a complete metrology solution, generating pristine analog loops or digital fieldbus outputs for direct PLC command ingestion.

The structural body shell of the Messotron DTK 50 AE metrology probe is sculpted entirely from premium, heavy-duty industrial stainless steel, providing immense resilience against blunt shocks, continuous mechanical vibrations, and aggressive cutting oils or chemical agents. The device carries high industrial Ingress Protection (IP) certification, hermetically sealing the critical internal coils from abrasive metallic dust, saturated moisture, fine fibers, and coolant spray. This mechanical durability guarantees millions of trouble-free runtime cycles without experiencing calibration decay or linearity drift. The DTK 50 AE is globally recognized as an essential component for automated multi-point dimensional tolerance check stations, inline steel/polymer sheet thickness monitoring, high-speed turbine shaft runout diagnostics, and quality control (QA/QC) test benches within automotive parts fabricating, consumer electronics assembly, and advanced metallurgy research sectors.

• Manufacturer: Messotron
• Country of Origin: Germany
• Product Category: Spring-Loaded LVDT Transducer / Displacement Metrology Probe
• Model Designation: DTK 50 AE
• Operating Principle: Linear Variable Differential Transformer (LVDT)
• Linear Measuring Range: 50 mm (±25 mm)
• Cable Interface Topology: Axial Cable Entry (AE)
• Linearity Discrepancy: < ±0.25% of full scale standard (Premium high-accuracy versions available down to < ±0.1%)
• Mechanical Actuation Type: Integrated spring-return mechanism for automatic self-homing
• Chassis Construction Material: High-grade structural Stainless Steel housing
• Ingress Protection Class: IP65 standard industrial dust and moisture proofing
• Operational Ambient Temperature Range: -20 °C up to +80 °C
• Recommended Excitation Frequency Range: 1 kHz up to 5 kHz
• System Integration Scope: Automated dimensional sorting machines, multi-point QC checking jigs, continuous industrial web thickness monitoring.
