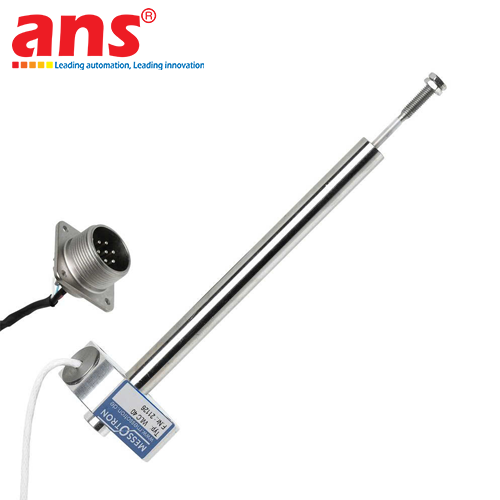

The Messotron VMI Series Linear Displacement Transducers (incorporating VMI 50 R and VMI 100 R models) represent an elite-tier engineering lineup for industrial position tracking and stroke telemetry, researched, developed, and systematically manufactured by the acclaimed Messotron GmbH in Germany. Operating within highly advanced Linear Variable Differential Transformer (LVDT) electromagnetic induction frameworks, the VMI Series is explicitly optimized for industrial automation procedures demanding absolute repeatability metrics and severe mechanical endurance. The technology captures position data via the entirely frictionless, non-contact movement of a high-permeability internal magnetic core shifting within symmetrically balanced differential electrical induction coil windows. This friction-free mechanical interaction fundamentally eradicates internal component friction and physical wear over extended lifetimes, unlocking near-infinite spatial resolution, instant phase response with zero signal latency, and outstanding calibration retention across tens of millions of continuous factory runtime cycles without maintenance.

Consolidating the comprehensive matrix of the VMI Series product portfolio yields highly flexible linear measuring strokes of 50mm and 100mm, providing mechanical layout engineers with a cohesive sensory platform for intricate automated machinery. The "R" suffix in the model notation designates a specialized ruggedized mechanical chassis architectural reinforcement or integrated mechanical sub-assemblies engineered to aggressively cancel out unwanted side-bending forces (side loads) caused by minor axial misalignments during push-rod stroke extension. The outer structural capsule of the Messotron VMI Series transducer is precision-machined from thick-walled industrial stainless steel alloys, achieving superior industrial Ingress Protection (IP) ratings. This hermetic envelope shields the highly sensitive internal coil wire matrix from abrasive metallic dust, saturated moisture, industrial chemical washdowns, and aggressive machining coolant spray.

When seamlessly integrated with standardized Messotron electronics (such as the DPU digital series conditioning modules), the VMI Series transducers constitute a closed-loop measurement network, transforming sub-micron micro-displacements into standardized industrial analog loops (4-20mA, 0-10V) or digital fieldbus data routed directly into central plant PLCs. The perfectly symmetrical differential configuration of the coils ensures high electromagnetic compatibility (EMC), canceling out electrical noise emitted by adjacent high-power industrial motors or heavy variable frequency drives (VFDs) while continuously neutralizing ambient thermal drift errors. The VMI Series stands as an irreplaceable standard for real-time piston position tracking inside heavy crane hydraulic cylinders, remote stroke diagnostics for high-pressure flow regulation valves, inline metal web thickness validation on continuous rolling lines, automated multi-point QA/QC metrology test benches, and destructive material strain-stress diagnostics within structural mechanical research laboratories.

• Manufacturer: Messotron
• Country of Origin: Germany
• Product Category: Ruggedized Industrial Linear Displacement Transducer / Inductive LVDT Sensor
• Integrated Family Models: VMI 50 R, VMI 100 R
• Technology Operating Principle: Non-contact Linear Variable Differential Transformer (LVDT) / Inductive Electromagnetic
• Certified Linear Measuring Stroke:
  - VMI 50 R: 50 mm total range (±25 mm stroke)
  - VMI 100 R: 100 mm total range (±50 mm stroke)
• Mechanical Structural Feature (R Designator): Ruggedized chassis profile built for high-vibration and cross-axial shock suppression
• Non-Linearity Discrepancy Margin: < ±0.25% full scale standard (Premium high-accuracy versions available down to < ±0.1%)
• Enclosure Ingress Protection Class: IP65 standard industrial protection envelope (Upgradable to IP67 / IP68 moisture-proof variants)
• Chassis Rod and Housing Material: Premium high-strength industrial Stainless Steel composition
• Recommended Excitation Frequency Spectrum: 1 kHz up to 10 kHz range
• Thermal Drift Evaluation Coefficient: < 0.01% / °K across the full operational bandwidth
• Electrical Interfacing Interconnect: Heavy-duty molded integral cable assembly or rugged industrial quick-disconnect Connector setup
• Operational Ambient Temperature Range: -20 °C up to +80 °C (Extended high-temperature configuration available up to +120 °C)
• System Integration Application Scope: Hydraulic cylinder positioning loops, automated valve stroke tracking, multi-point metrology QC test rigs.
